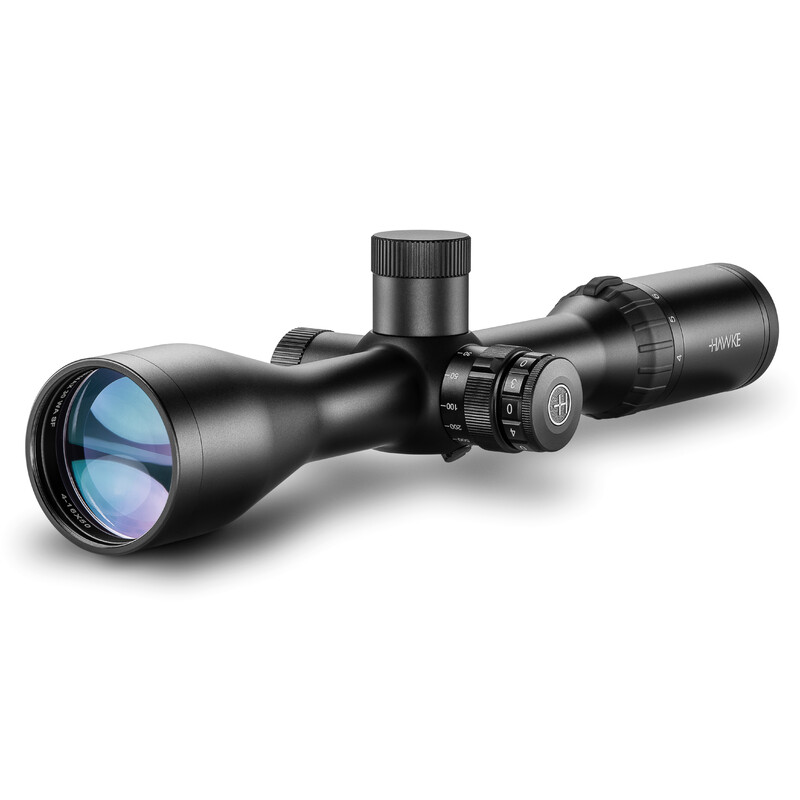

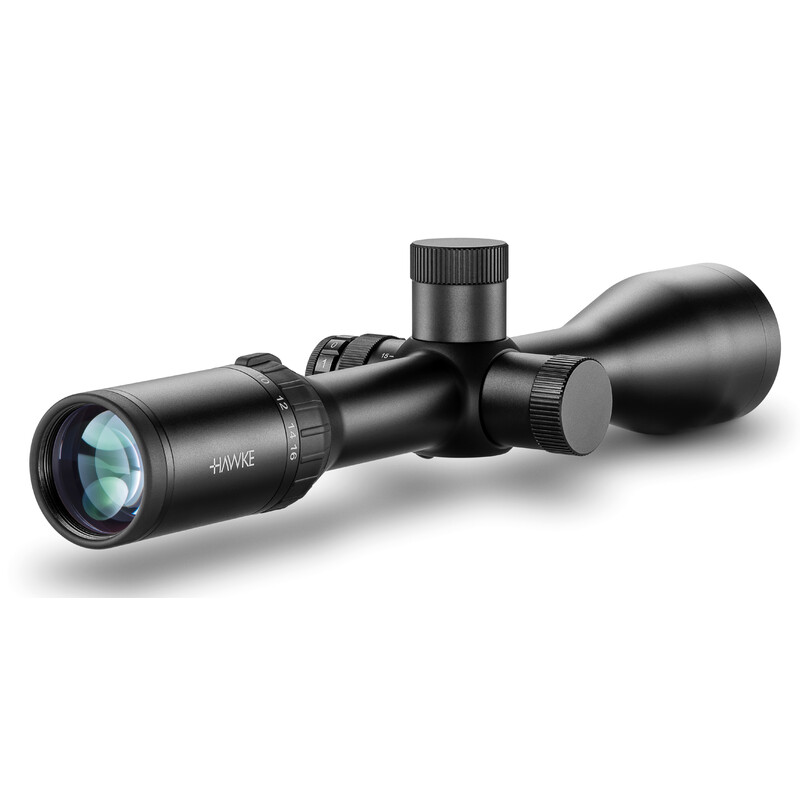

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE Riflescope 4-16x50 Airmax 30 WA SF AMX IR

HAWKE

Product no.: 79940

Riflescope 4-16x50 Airmax 30 WA SF AMX IR

~~RRP: $ 610.00~~ Our price:

$ 550.00 incl. VAT, plus shipping costs

in stock
ready for shipping in 24 h + lead time

Product questions?

advice for Riflescopes

Product description

More about the series Airmax...

You have the opportunity to mount and test your optics in our shop [Oberhammer Hunting and Nature http://www.oberhammer-jagd.de] in Munich. Our team of experts is looking forward to seeing you and will be happy to advise you.

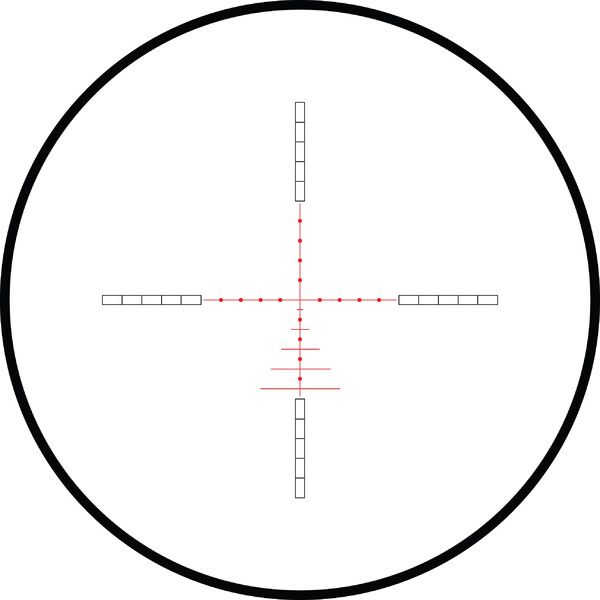

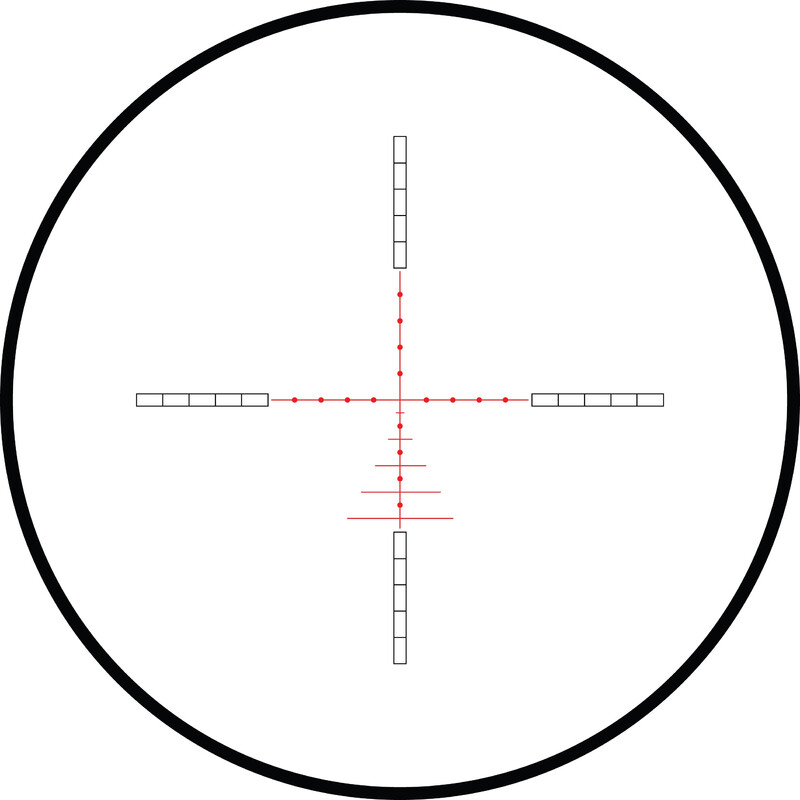

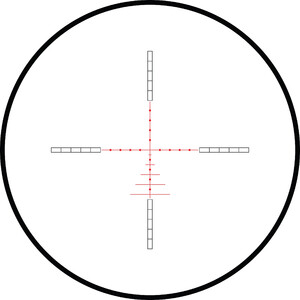

AMX - Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Specifications

Capacity

Type of build

zoomable magnification

Minimum magnification

4

Maximum magnification

16

Front lens diameter (mm)

50

Exit pupil at min. enlargement (mm)

12,5

Exit pupil at max. enlargement (mm)

3,1

Eye relief (mm)

102

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Central tube diameter (mm)

30

Field of view

No parallax over (m)

9m — ∞

100 m adjustment per clic

1/10 MRAD

Twilight factor at min. enlargement

14,1

Twilight factor at max. enlargement

28,2

Field of view at min. enlargement (m)

10,2

Field of view at max. enlargement (m)

2,6

Reticle

AMX IR

Reticle plane

2. focal plane (SFP)

Reticle usage

Sporting shooters

Special features

Illuminated reticle

yes

Automatic switch-off

-

Height adjustment

yes (max. 27 MRAD)

Lateral adjustment

yes (max. 27 MRAD)

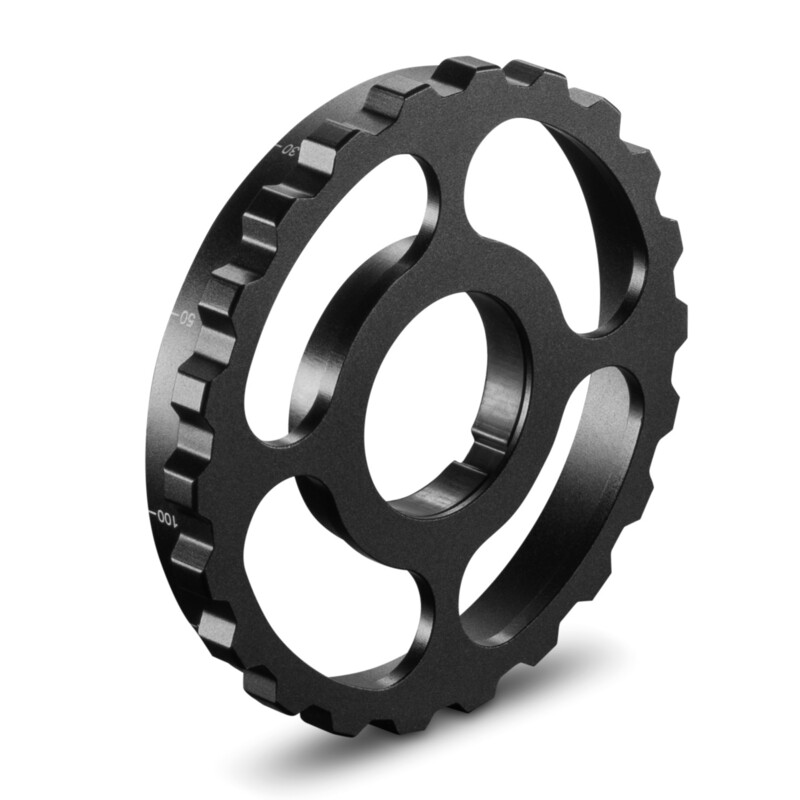

Parallax adjustment

yes

Bullet drop compensator

-

Integrated rangefinder

-

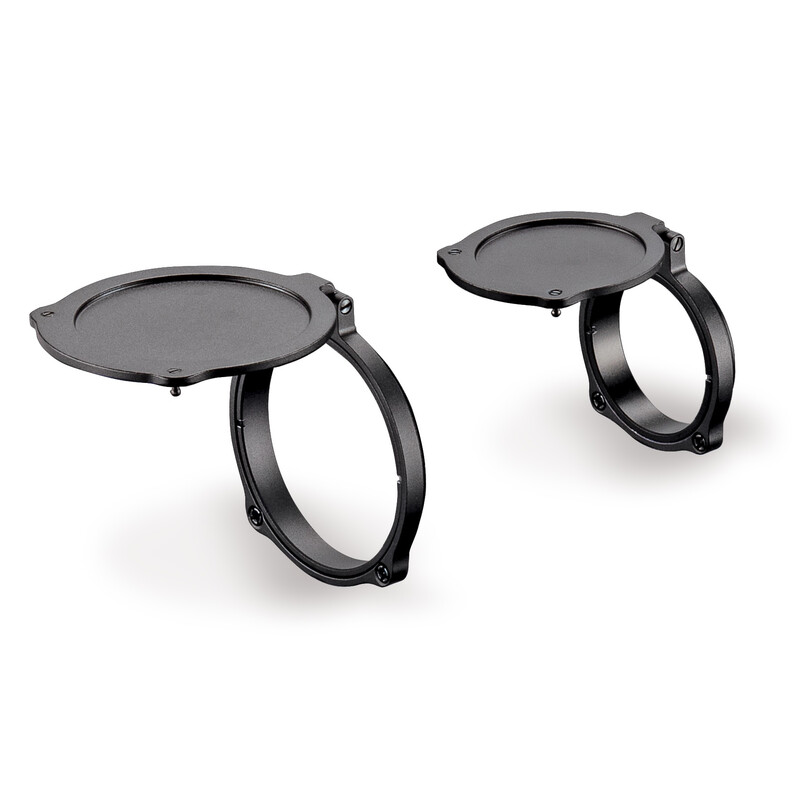

Protection cap

yes

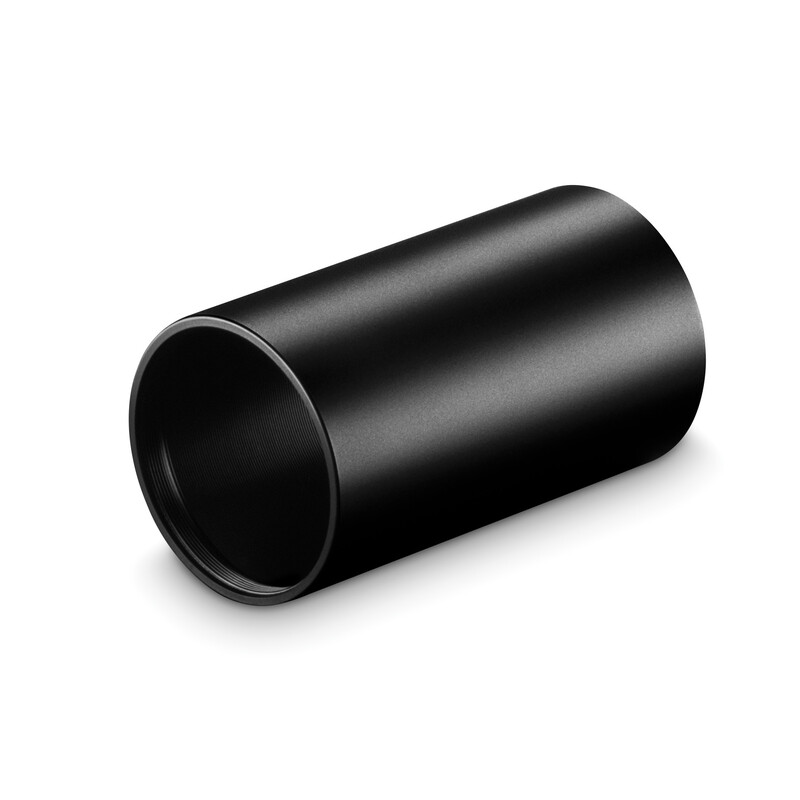

Lens hood

yes

Water-proof

yes

Dew protected

yes

Watertight

yes

General

Colour

matt black

Length (mm)

348

Central tube length (mm)

149

Weight (g)

760

objective lens outside diameter (mm)

57

eyepiece outer diameter (mm)

46

Series

Airmax

Area of application

Stalk hunting

-

Raised hide

-

Drive hunting

-

Magnum caliber

-

long distance

very good

Airgun (< 7,5 Joule)

yes

Airgun (> 7,5 Joule)

yes

handgun

-

Miscellaneous

Battery type

CR2032
