The HPM Series D
This new microscope series excels by its excellent value for money and the expansion possibilities with variable polarization, darkfield or phase contrast.
All units feature a large all-metal tripod with DIN optics and 5x turret object.
They are equipped with a PL 10x/18mm WF eyepiece 140x132 mm and have a large stage with integrated coaxial mechanical stage and a height-adjustable Abbe condenser centerable (NA 1.25'') with iris diaphragm and filter holder.
The lighting is by means of a controllable LED whose light intensity is roughly equivalent to 30 W.
Focusing is possible with the help of two coaxial drive knobs for coarse and fine focusing with slip coupling.

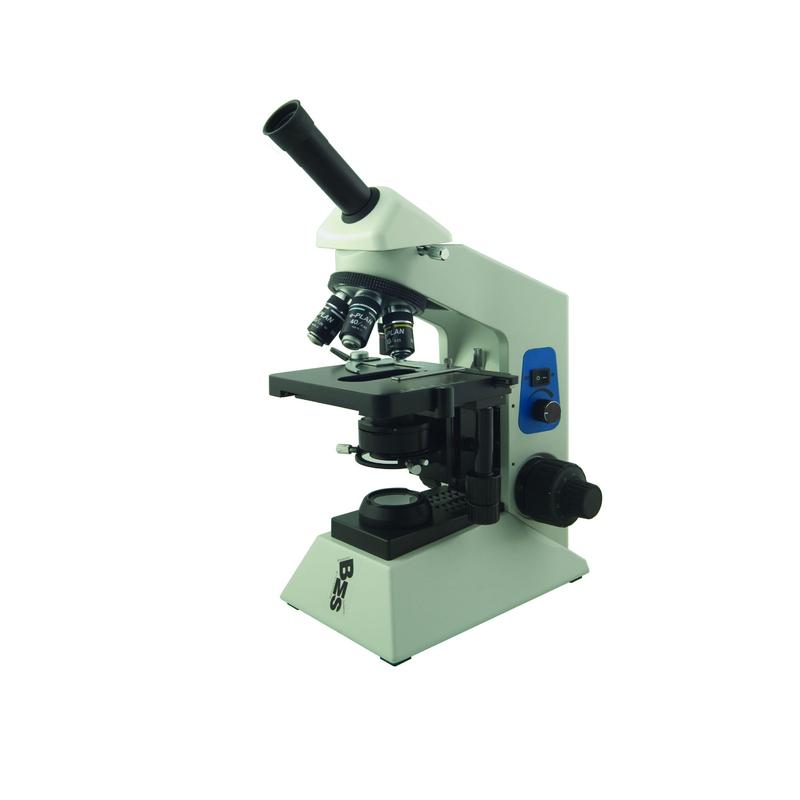

The model
In addition to the above-mentioned properties serienmäigen features, this model has a monocular view, and up to 1000-fold magnification, which is achieved by planachromatic objectives with magnifications of 4x, 10x, 40x, 100x.
Similar to! (Lenses are different)
