Optics |
|
Magnification
|
400 (40, 100, 400)
|
|
Eyepiece
|
10 (Wide-angle eyepiece)
|
|
Condensor
|
Abbe (N.A. 1.25, spiral condenser, height adjustable)
|
|
Lighting
|
Transmitted light |
|
Lamp type
|
PL Fluorescent tube (5W, cold light)
|
|
Image scale
|
4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection)
|
|
Lens type
|
Achromatic
|
|
Power supply
|
Power pack
|
Mechanics |
|

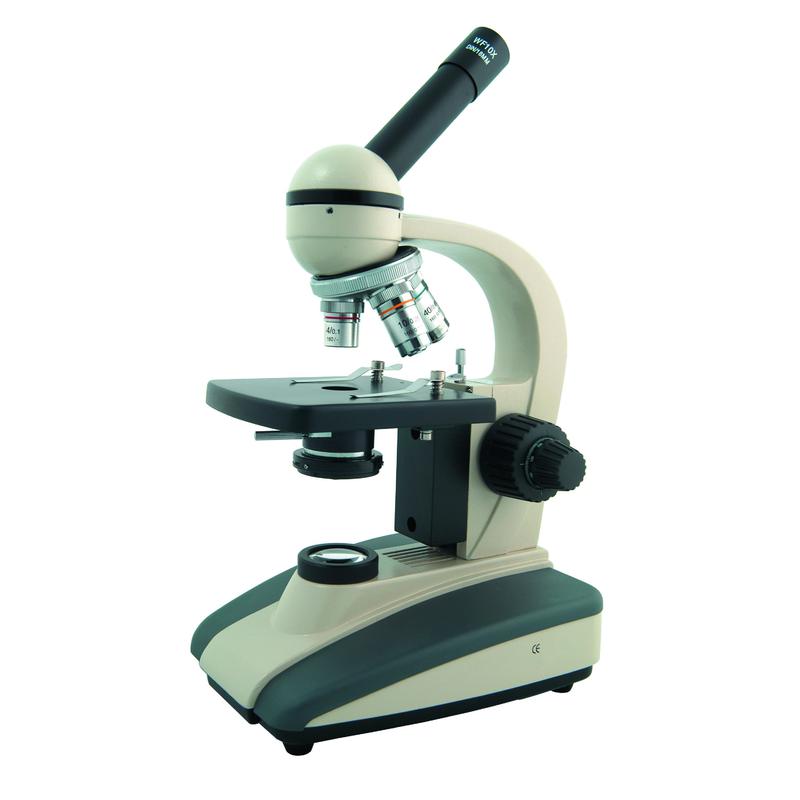

Type of build
|
Monocular
|
|
Specimen stage
|
Specimen stage (110 x 120 mm)
|
|
Viewing posture
|
30° oblique viewing, 360° rotating head
|
|
Focusing
|
Coarse and fine movement (coaxial)
|
Special features |
|
Built-in digital camera
|
- |
|
Dust cover bag
|
yes |
|
Filter holder
|
yes |
|
Centering stage
|
- |
|
Rechargeable battery operation
|
- |
|
Luminous field diaphragm
|
yes |
General |
|
Series
|
HPM Serie |
|
Colour
|
beige-black
|
|
Suitable from
|
14 |
Suitable for |
|
Beginners
|
yes
|
|
Advanced
|
yes
|
|
Pros
|
-
|
Special areas of application |
|
Phase contrast
|
-
|
|
Polarization
|
-
|
|
Fluorescence
|
-
|
|
Interference contrast
|
-
|
|
Metallurgy
|
-
|
|
Dark field
|
-
|
