Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > Armasight > Prometheus > Armasight Thermal imaging camera Prometheus 336 / 30 Hz 3-12x42
Product no.: 49617

Thermal imaging camera Prometheus 336 / 30 Hz 3-12x42

$ 3,510.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Note: The authorized export countries for this product are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Armasight Prometheus thermal imaging cameras

These thermal imaging cameras are suitable for observing at great distance and, due to the short minimum focus distance, you can also look for heat sources at short range. It features the most up-to-date FLIR Tau 2 VOx microbolometer core. Thanks to its monocular design, you can keep your “aiming eye” closed so that when you then look through your rifle scope you must not first adapt to the darkness.

Thermal Imaging technology enables its use in total darkness because it converts heat radiation into an image, instead of relying on light reflection from objects. This also allows its use in fog, snow, dust and heavy rainfall. Ever more security authorities and military organisations are using these thermal cameras. Due to the elimination of IR emitters which are often used in classic night vision devices, the risk of being detected is greatly reduced.

It is possible to digitally zoom the image, thus allowing details to be displayed with additional magnification. Thanks to the various colour modes, you can set up the display to best suit your needs. Using the video output, you can optionally connect a video recorder, and later evaluate your observations and share them with family and friends. The robust housing made of CNC machined aviation aluminum alloys is watertight.

The Armasight Prometheus is the latest and most technologically advanced family of thermal imaging devices in monocular design on the market today.

The Prometheus product range is based on the latest FLIR Tau 2 VOx microbolometer core technology. In this product range the models are distinguished by their resolution and the image cycle rate (Hertz). In addition, the models have different focal lengths and front lens diameters. The Prometheus is non-cooled and can be operated by day or night.

Thermal imaging technology enables objects to be distinguished through snow, dust, smoke, fog or mist. Since the thermal imaging technology functions without IR emitters, you are almost completely invisible when observing animals or humans.

Features

  • Easy and intuitive user interface
  • Fast start-up time
  • The user can choose between NTSC or PAL formats
  • Waterproof, CNC machined aviation aluminum alloy

Technical specifications of the Prometheus 336x256 42mm (30Hz)

  • Construction type: monocular
  • Magnification: PAL 2.8x / NTSC 3.4x
  • Digital zoom: 1x, 2x, 4x
  • Sensor: FLIR Tau 2 336x256
  • Pixel size: 17 micrometres
  • Display: AMOLED SVGA 800x600
  • Colour modes: white hot / black hot / rainbow / various colour modes
  • Made in USA

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Magnification
2,8 (Digital Zoom 1x/2x/4x)
objective
42mm f:1.1
Sensor resolution (Pixel)
336x256
Image display
Different versions
Image cycle rate (Hz)
30
Battery durability (h)
4

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
-
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no

Field of view


True field of view (°)
7,8 x 5,9
Close focus limit (m)
5

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
194
Width (mm)
68
Height (mm)
62
Weight (g)
550
Series
Prometheus

Miscellaneous


Battery type
CR123 (2 pieces)

Recommended accessories

Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
Miscellaneous (1)

Varta CR123 lithium battery

$ 8.90*

*All prices include VAT plus shipping costs.

Armasight Thermal imaging camera Prometheus 336 / 30 Hz 3-12x42

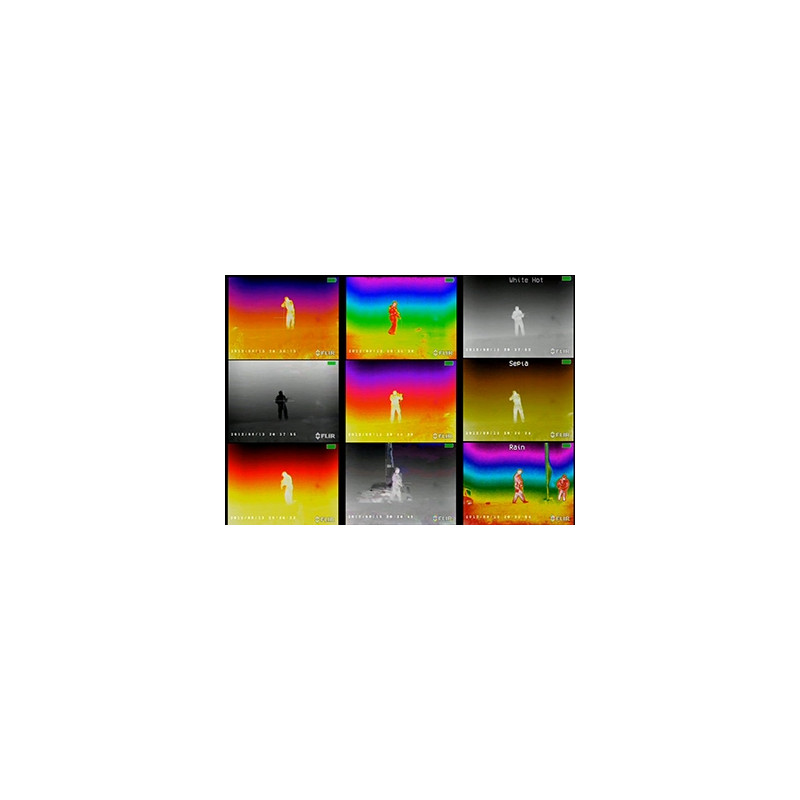

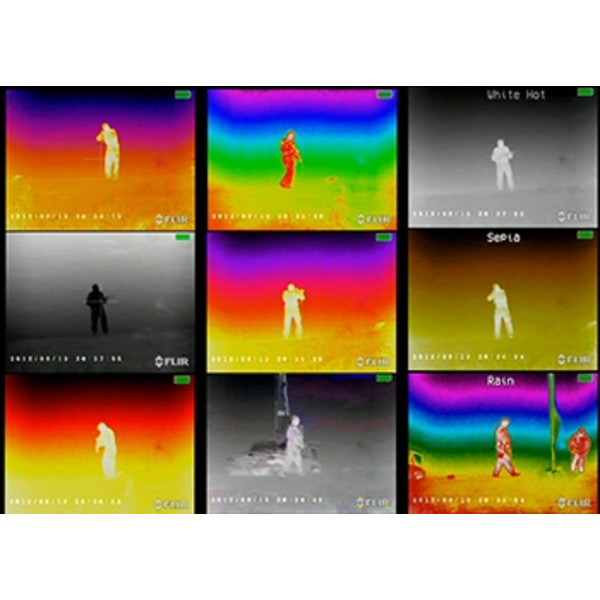

This sample image shows you various illustrations of the selectable colour modes.
Armasight Thermal imaging camera Prometheus 336 / 30 Hz 3-12x42

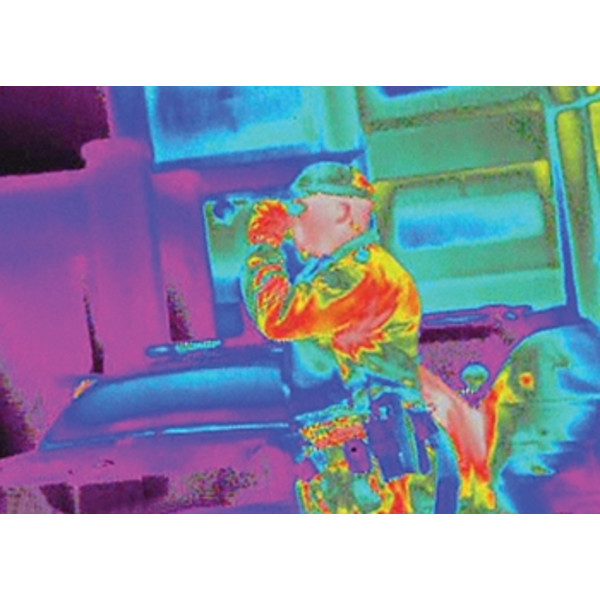

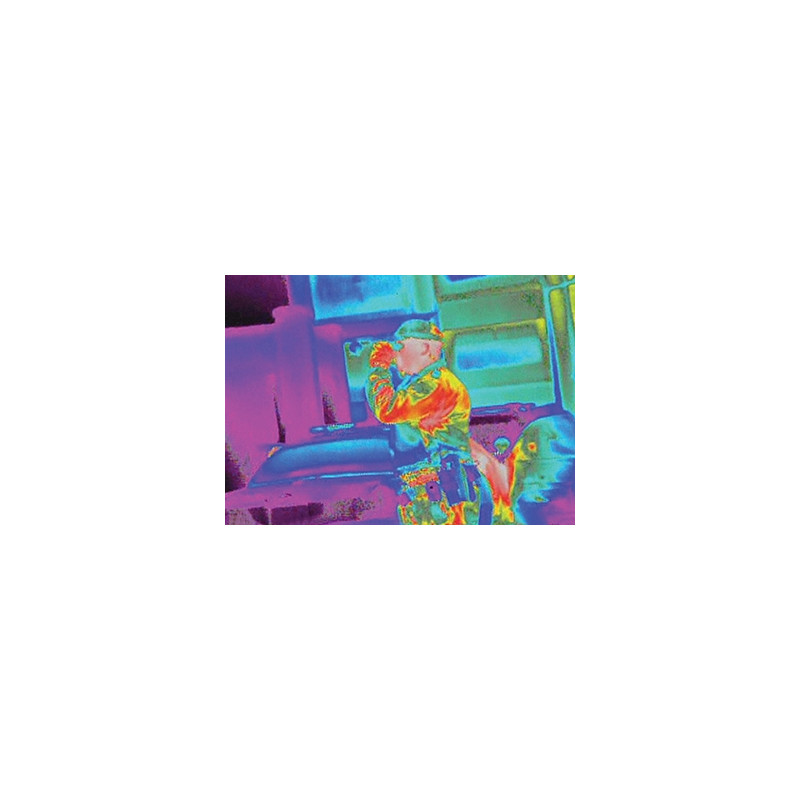

Example of use
