Astronomy > Mounts & accessories > Mounts > Alt-azimuth with GoTo > 10 Micron > AZ HPS > 10 Micron Mount AZ 2000 HPS Combi DT
Product no.: 78111

Mount AZ 2000 HPS Combi DT

$ 20,600.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

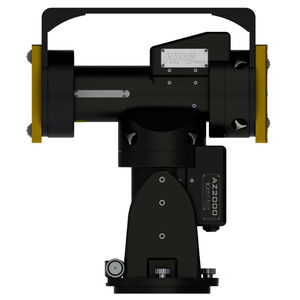

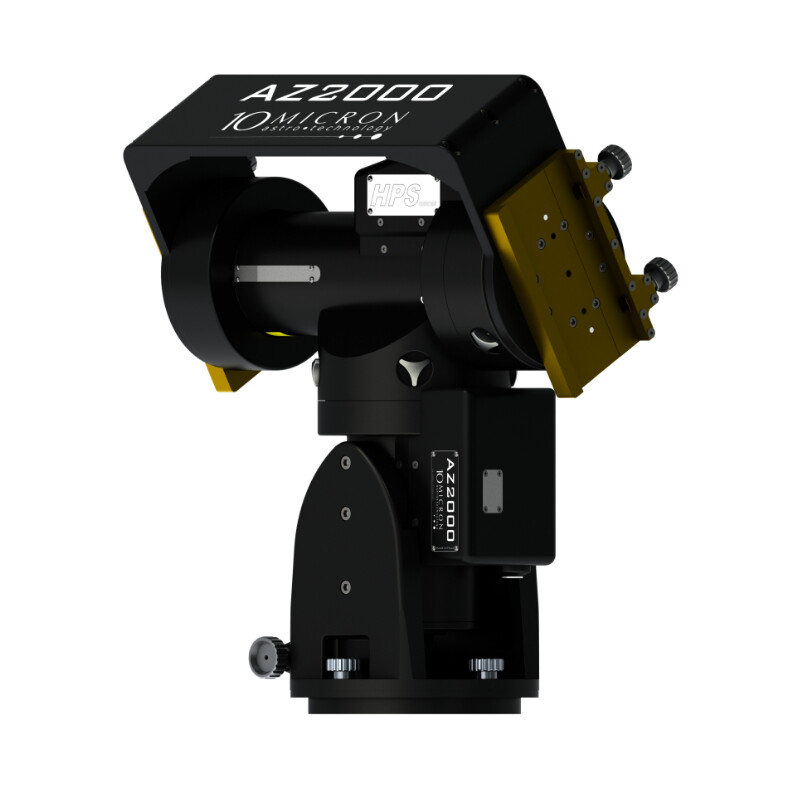

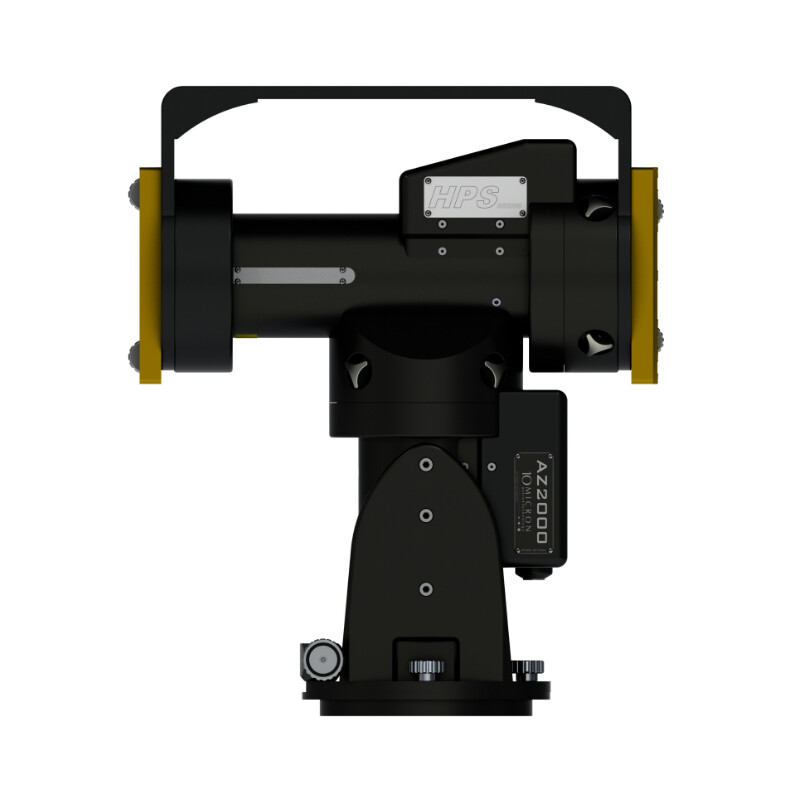

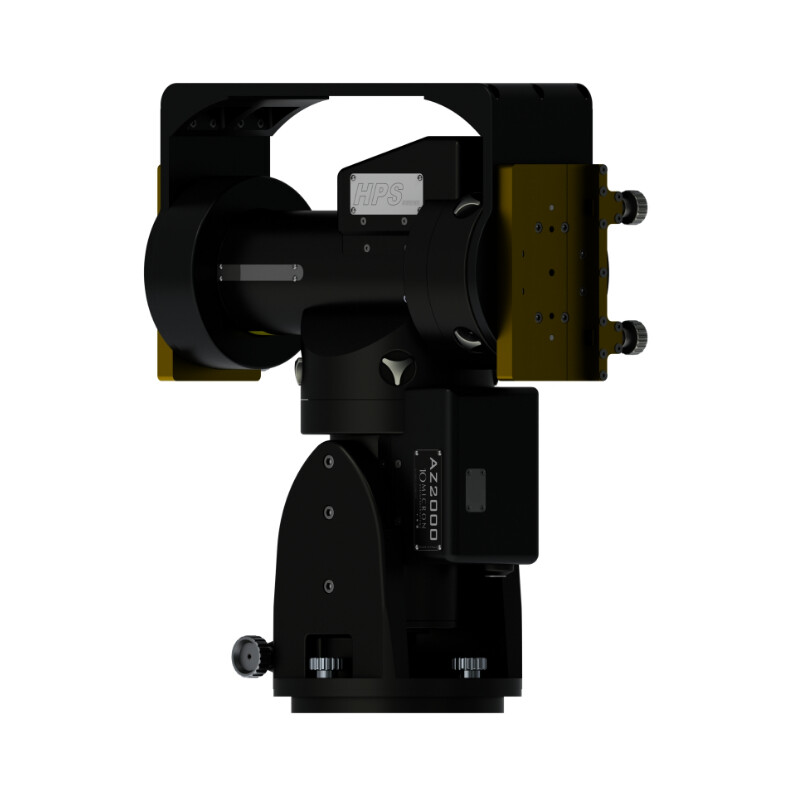

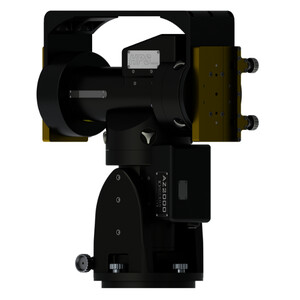

The AZ2000 HPS Combi is a further development of the earlier AZ2000 HPS. It is an altazimuth mount based on the mechanics of the GM2000 HPS. The AZ2000 HPS Combi is a very versatile mount for research purposes, perfectly suited for satellite tracking, photometric and astrometric measurements, LiDaR laser applications and much more.

The AZ2000 "COMBI" can be divided into two parts with an additional locking system; in addition to the quick-locking system, which is very useful for carrying and mounting the mount on site, there is now another locking system. This is intended for customers who have the mount permanently installed in an observatory and enables great long-term stability.

You can convert the mount back to a portable ("divisible") version at any time by simply removing the locking screws.

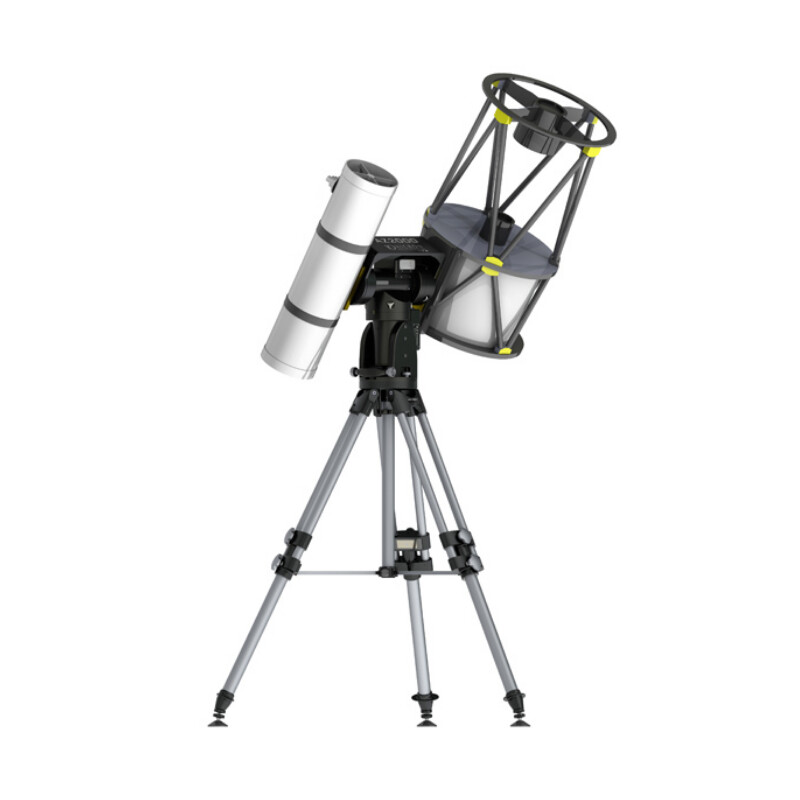

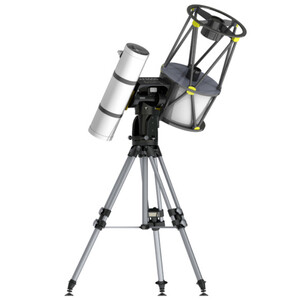

The double telescope option is compatible with all GM2000 series plates, including the Loduel and Maxidual double mounts. This makes it possible to use four optics directly, two on each side. The double mount kit has been designed for high stability and rigidity and is made of high-strength aluminium alloy.

  • Azimuth mount, for professional use,
  • 10-micron HPS technology with absolute encoders on both axes and powerful motor drives,
  • system for use with two optics (payload 50 kg + 35 kg).
  • Due to the azimuth design, an image rotator is required for astrophotography. With an image rotator (e.g. from Planewave IR90 or Gemini Optec), "classic" astrophotography with the usual 10 micron precision is also possible.

Upgrade: 10micron control box

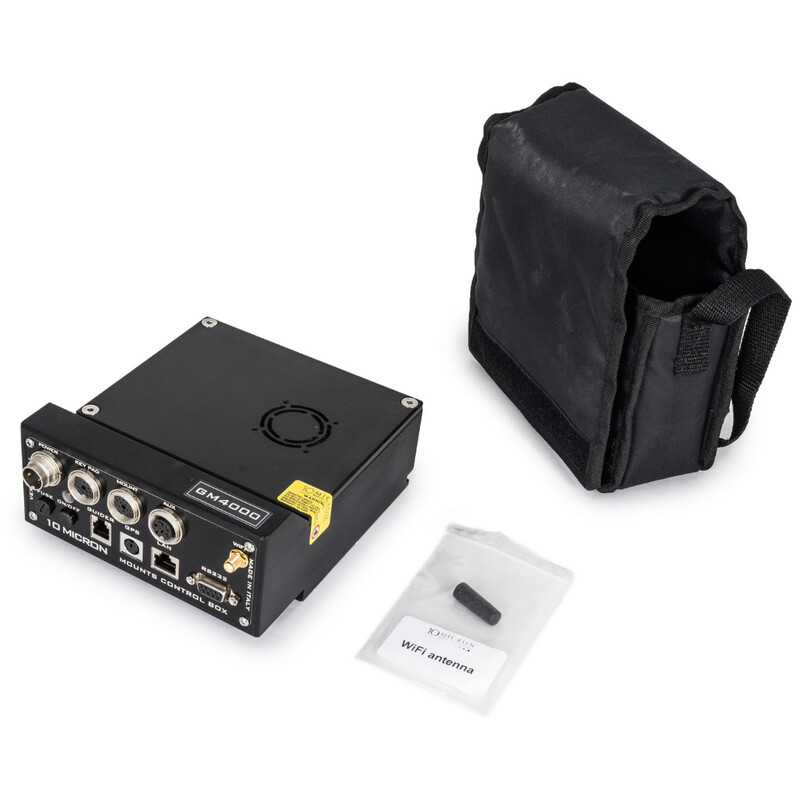

10Micron has redesigned the hardware of the electronic control box. From now on, all 10Micron mounts will be delivered with the new control box version 3 as standard.

Important new features of the control box V3:

  • Powerful motherboard – New ARM-based processor for higher performance and future-proofing.
  • High-quality industrial connectors – All power and data connections are equipped with high-quality Binder plugs from Deutschland and offer improved protection against moisture, dust and environmental influences.
  • Improved connectivity – A special connection for an external WiFi antenna optimises wireless communication.
  • Optimised data interfaces – New RJ ports for LAN, autoguider and GPS ensure reliable signal transmission.
  • Precise GPS integration – The GPS module is now connected via a PS2 interface (instead of RJ) and has an integrated PPS signal for high-precision time measurement, ideal for satellite tracking.
  • Professional socket/plug for power supply – The previous connection has been replaced by a two-pin Binder plug for 24V DC. A new power cable is included in the scope of delivery.
  • Extended AUX interface – 6-pin AUX connection (DIN EN 61076-2-106) – improves control of remote switches and feedback when switching on.

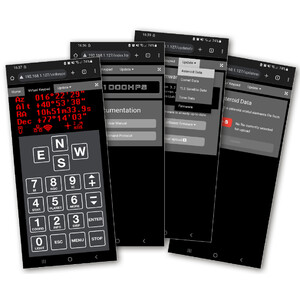

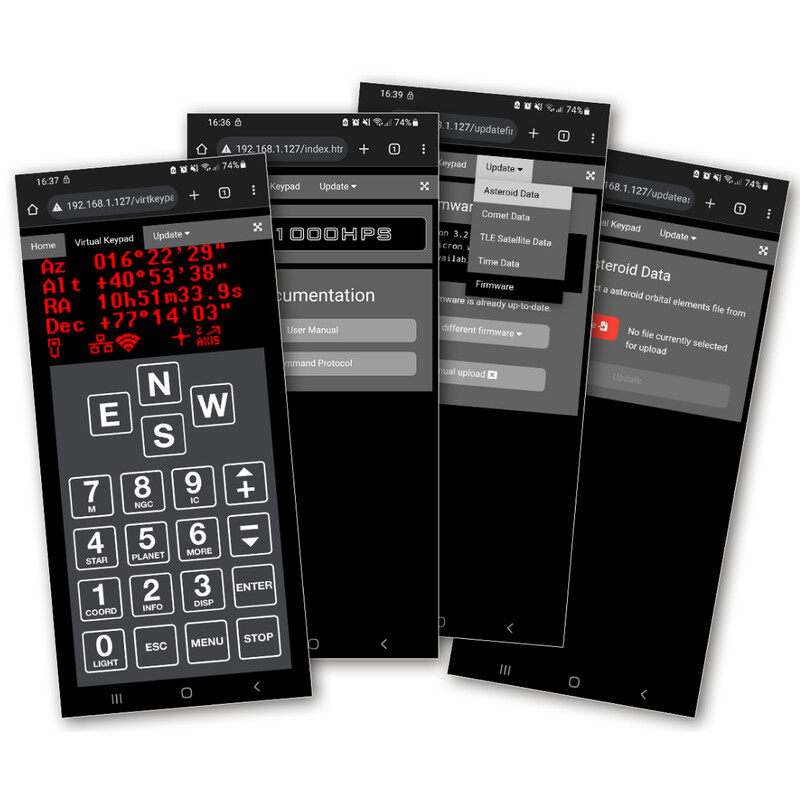

New web interface for all 10Micron mounts

The new control interface is accessible via any web browser – without any additional software. The mount is displayed directly in the local network under its device name.

Features of the new interface (from firmware 3.0):

  • Direct access to user manual and command log
  • Download of TLE data as well as comet and asteroid data
  • Automatic firmware check and easy updates
  • Virtual hand control box with all the functions of the physical keypad
  • Compatible with any browser and any instrument (PCs, laptops, tablets and smartphones) as well as all operating systems

Specifications

Capacity


Max. additional load capacity (kg)
50
Weight mount head only (kg)
30
Slow-motion azimuth adjustment (°)
+/- 10
Diameter of counterweight bar (mm)
40
Material of worm wheel
Bronze
Material of worm gear
Steel
Input voltage
24
Motor type
Servomotors
Position precision
< 20
Precision of tracking
1 (~ 0,7" RMS)
Interfaces
RS-232, GPS Port, ST-4, Ethernet
Operating temperature
(-15) - (+35)
Drive type
Worm wheel

Special features


GoTo system
yes

Equipment


Tripod
without tripod

General


Series
AZ HPS
Type
Mount
Type of build
Azimuthal

Product safety

Manufacturer: COMEC technology, Via Archimede 719, 21042 Caronno Pertusella (VA), IT, www.10micron.com
Responsible person: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, [email protected]
