C-WF

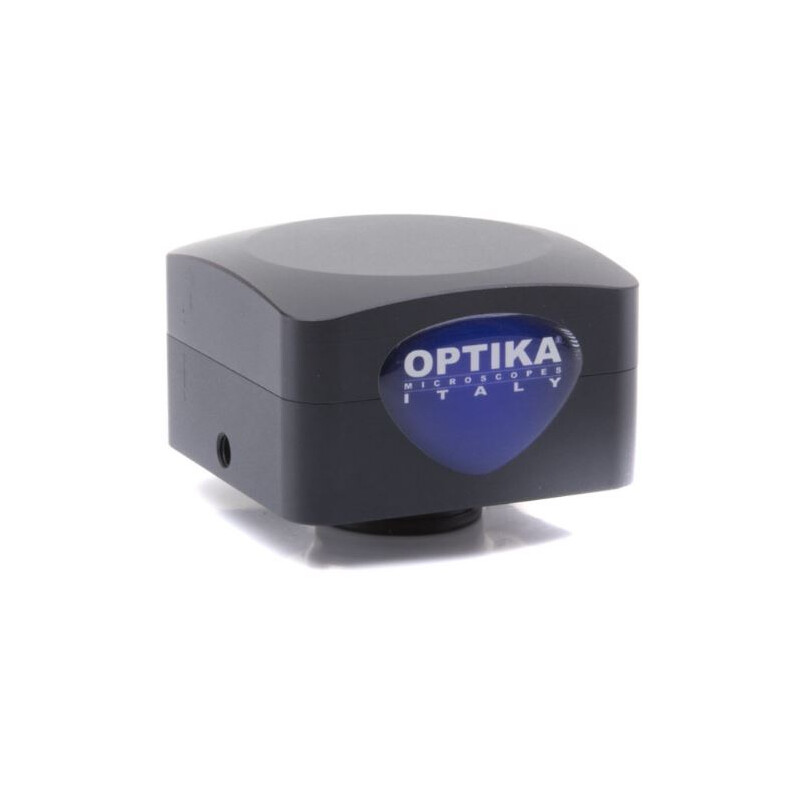

C-WF camera, 5 MP CMOS, Wi-Fi, multi-plug
C-WF
C-WF camera, 5 MP CMOS, Wi-Fi, multi-plug
- Ideal for interactive, flexible and dynamic learning processes
- Simple, intuitive operation with powerful software
- Universal connection to any microscope brand
- Direct eyepiece & trino port connection
- 1 MP images
- Wi-Fi interface
- Direct Wi-Fi connection (no router is required)
- Connectable to PC, smartphones, tablets and any other device
- Supported by any device (PC, tablet or smartphone)
- Image and video capturing function when used in Wi-Fi mode
- Reliable colour fidelity
- C-mount projection lens and rings included
- Downloadable, free of charge software
- OPTIKA ProView & LiteView for Windows
- OPTIKA LiteView for Mac OS or Linux”
WiFi output Yes
C-Mount Yes
Dimensions (mm) 67 x 67 x 46
Weight (kg) 0.44
Camera resolution (n° of pixels: W x H) 2592x1944
Color / Monochrome Color
Sensor Size 1/2.5"
Sensor Technology CMOS
Sensor Type SONY EXMOR
Image Format 16/9
Pixel Size (mm) 2.2x2.2
Acquisition technology Rolling shutter
Sensitivity 1V/lux-sec
Signal/Noise Ratio (DB) 43
Dynamic range (DB) 61
ADC conversion 8 Bit - 12Bit
Color Depth 8 Bit
Exposure time Auto
Binning 2x2
IR filter Yes
IR filter range (nm) 380-650 (IR CUT)
WiFi resolution (MP) 1
WiFi Frame rate full resolution (fps) 10@1280x720
WiFi Speed 802.11n 150Mbps
WiFi Signal From the camera
WiFi Signal ready About 10 seconds after turning on
Max Users 3
Type External
Connector USB
Power plug type Multiplug (EU, UK, US)
Input voltage 100/240 Vac, 50/60Hz
Output voltage 5 Vdc 500mA
WiFi
Camera Power Supply
General specifications
Sensor OPTIKA MICROSCOPES ITALY
www.optikamicroscopes.com - [email protected]
Optical adapter (for 23mm eyepiece tube) 0.5x
Diameter of adapter ring (mm) 30
Diameter of adapter ring (mm) 30.5
Calibration slide Yes
Working Temperature -10°C up to +50°C
Storage Temperature -20°C up to +60°C
Relative Humidity 30% to 80%
Storage Humidity 10% to 60%
OS Windows 7
OS Windows 8
OS Windows 10 (32Bit)
OS Windows 10 (64Bit)
OS Osx (MAC Osx) starting from 10.7.5 (only LITEVIEW)
OS Linux (only LITEVIEW)
PC SW PROVIEW
PC SW LITEVIEW
PC CPU: Intel Core2 - 2.8GHz or higher
PC RAM: 2GB or more
