Model: IOS MET Planachromatic
Description: Objectives for transmitted and incident brightfield observation
- Magnification / Numerical Aperture
• 2.5X / 0.08 (M-1099)
• 5X / 0.15 (M-1100)
• 10X / 0.3 (M-1101)

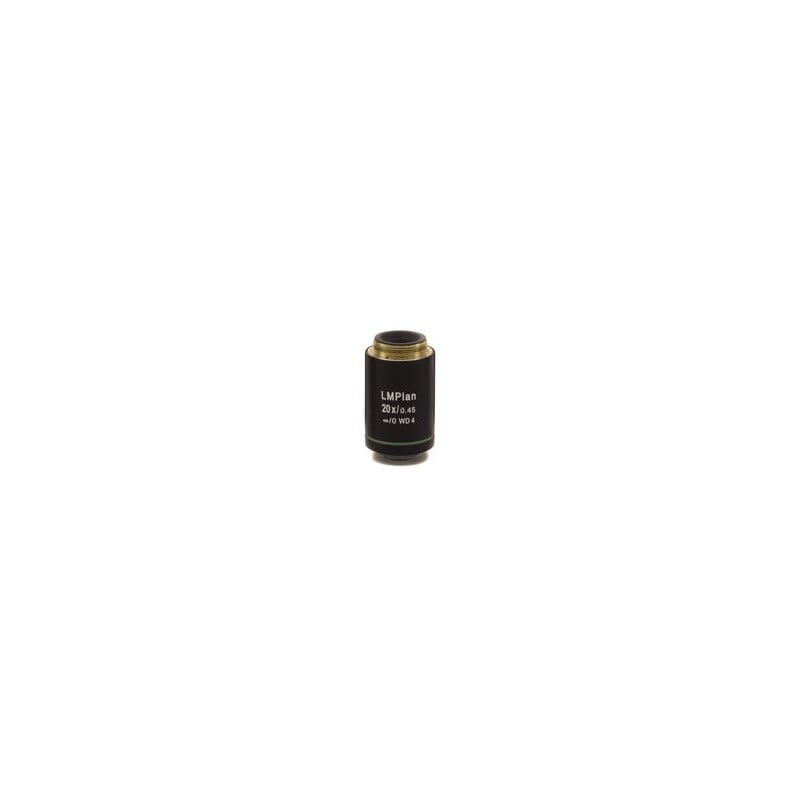

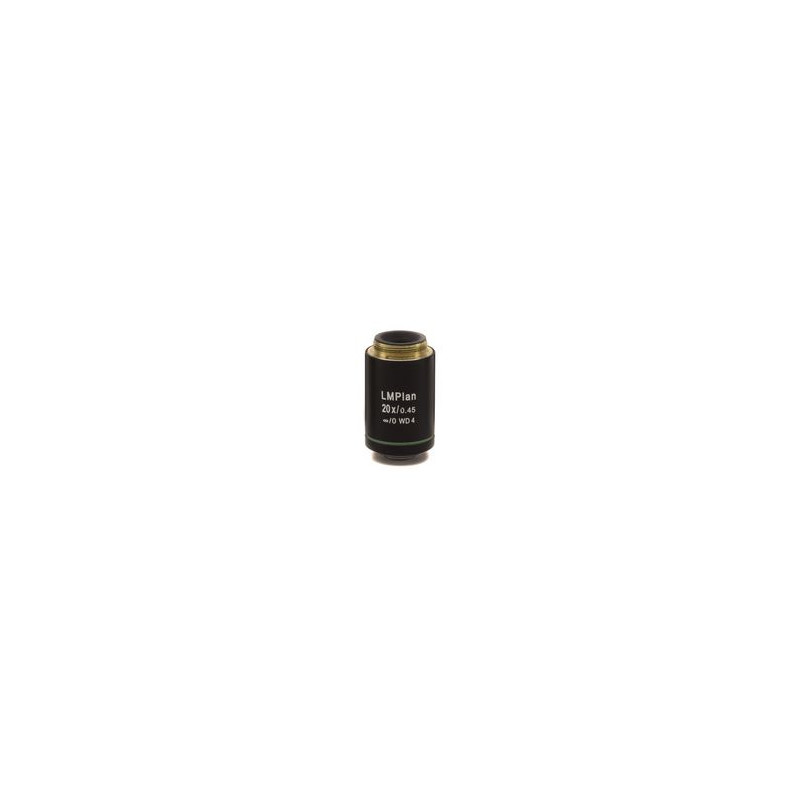

• 20X / 0.45 (M-1102)
• 50X / 0.55 (M-1103)
• 100X / 0.80 (M-1104)
- Optical Correction MET Planachromatic.
- Long working distance
- Flat field correction for 25 mm Field Number
- planachromatic spherical and chromatic corrections
- 2,5X objective has a built-in depolarizer filter for optimal view with incident light.
- Mechanical tube length IOS (infinity-corrected tube length)
- Cover Glass Thickness 0 mm (no cover glass)
- Working Distance • 2,5X W.D. 11.3 mm
• 5X W.D. 10.8 mm
• 10X W.D. 10 mm
• 20X W.D. 4 mm
• 50X W.D. 7.9 mm
• 100X W.D. 2.1 mm (spring-loaded)
- Screw Thread RMS Standard
- Parfocal Distance 45 mm
