B-190TBPL

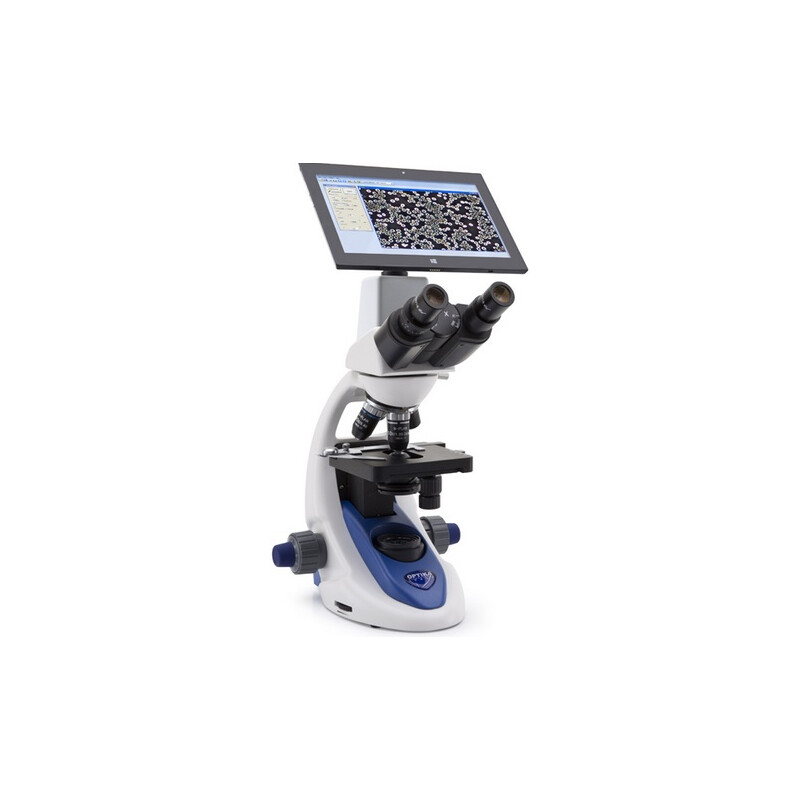

Digital binocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. The 3.1 MP CMOS camera ensures excellent colour reproduction and is connected to a Windows tablet PC with vivid color graphic display for unparalleled comfort and performance. The tablet represents a 2-in-1 solution as it can be disconnected and used as a real PC, being Windows-based, with powerful Intel processor and large touch screen of 10.1” for fast, responsive and smooth control
Specification
Head: Binocular with integrated 3.1 MP camera, 30° inclined; 360° rotating. Detachable Windows tablet PC included, rotating and tilting.
Dioptric adjustment: Left eyepiece.
Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
Objectives: - N-PLAN objective 4x/0.10
- N-PLAN objective 10x/0.25
- N-PLAN objective 40x/0.65
- N-PLAN objective 100x/1.25 (Oil/Water).
All with anti-fungus treatment.
Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: X-LED² with white 3 W LED and brightness control.
Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply
The latest OPTIKA digital microscopeswith Windows tablet PC open new microscopy horizons, combining high-end optics with innovative digital technology for microscopic imaging. B-190TB includes a 3.1 MP camera with a 10.1” Windows tablet.View, capture, analyze and share your images with simplicity and reliability
Specifications
Operating system: Windows 10 (64Bit)
CPU: Gemini-Lake, N4100
CPU speed: 1.10 GHz
Graphic card: Intel® HD Graphics 600
RAM: Ram 6 GB LPDDR3
Display size: LED 10.1” IPS Multi Touch Screen
Display resolution: 1920x1200
Storage: Hdd 128 GB
Network: WiFi (2.4G / 5G) - Bluetooth 5.0
Input ports: USB-C (1 USB2.0 for battery charge, 1 USB3.0) - Micro SD card reader
Output ports: Microphone - Headphone - Micro HDMI
Battery Type: Lithium-ion
Battery capacity: 6500 mAh
Power consumption: 24.05WPower supply12V 2A EU
Dimensions: (mm)261 x 167 X 9Weight (Kg)0.53
Language: Multilanguage
Weight:530 g
Tablet accessories included: OTG cable (micro USB-C to USB-A)USB cable USB-B to USB-A (0.5m)Touch pen
Camera Specification
Digital camera resolution: 3.14 MPixel
Signal output: USB 2.0
Sensor Size: 1/2.5”
Sensor technology: CMOS
Image format: 4\3
Full Image size: 2 048 x 1536
Pixel size: 2.2 x 2.2 micron
Frame rate full resolution: 5 frames\sec
Frame rate other resolutions: 8 FPS (1280x1024) - 30FPS (640x480)
Automatic White Balance: Auto - Man
Automatic Gain Control: Auto - Man
Automatic Back light control: Auto - Man
Exposure control: Auto - Man
