Microscopi > Microscopi > Microscopi diritti > Microscopi plarizzatori > Motic > Panthera TEC POL > Motic Microscopio Panthera TEC POL Epi, trino, infinity, plan, achro, 50x-400x, 10x/20 mm, alogeno/LED
Prodotto n.: 87645

Microscopio Panthera TEC POL Epi, trino, infinity, plan, achro, 50x-400x, 10x/20 mm, alogeno/LED

$ 8.600,00 IVA incl. più spese di spedizione
troppo caro?
a breve termine
spedibile in 1-2 settimane + Tempo di trasporto

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

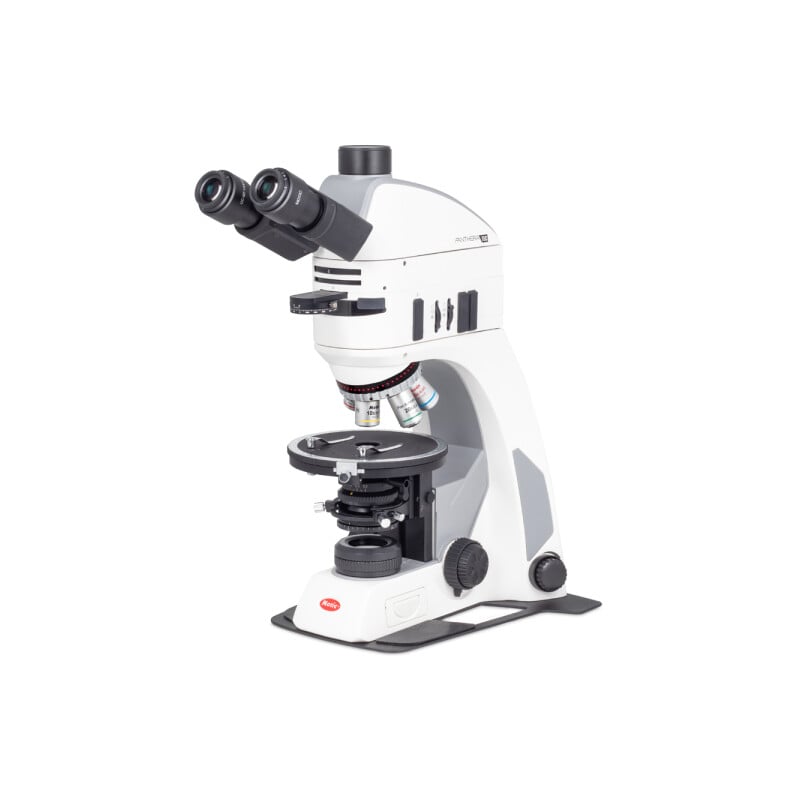

Panthera TEC POL Epi Trinocular

A new level of Transmitted/Incident light microscope for diverse Polarization applications: Panthera TEC POL Epi Trino is a trinocular microscope with a set of UC Plan Achromatic objectives, working with UC eyepieces of 20mm Field of View. An interchangeable 30W Halogen/3W LED light source is part of a Full-Köhler setup in Transmitted light. Incident light is provided by a compact illuminator with 3W LED light source. The Motic LightTracer system with memory function, a built-in Low-Energy mode and an LED feedback indicator helps to optimize your workflow.

The Motic Panthera TEC POL Epi Trinocular microscope is a precision polarization instrument, purpose-built for applications in both materials science and medical diagnostics, including the identification of monosodium urate crystals in suspected gout cases. Combining polarized transmitted and reflected light, this system enables detailed imaging of birefringent structures in both thin sections and polished samples.

Key Features:

  • Trinocular head for simultaneous observation and digital imaging
  • Strain-free UC Plan optics for high-contrast polarized light microscopy
  • Integrated Bertrand lens for conoscopic observations
  • 360° rotatable stage with Vernier scale – ideal for crystal orientation and extinction measurements
  • LED Epi and Koehler Transmitted Illumination – for both transparent and reflective samples
  • Integrated polarizer and analyzer, quick-switch design for rapid contrast adjustments

Applications in Material Science

This microscope is particularly suited for microstructural analysis of crystalline materials, composite structures, ceramics, and metallographic thin sections. The combination of polarized light with epi-illumination allows for inspection of surface birefringence, phase boundaries, and internal stress patterns in technical materials.

Applications in Medicine – Gout Diagnostics

In clinical or research settings, the Panthera TEC POL Epi is ideal for identifying monosodium urate crystals, which are key indicators of gout. Polarized light microscopy remains the gold standard in visualizing these birefringent needle-like crystals in synovial fluid samples. The microscope’s clear optics and polarized contrast offer reliable and efficient analysis of such diagnostic samples.To further enhance diagnostic precision, we strongly recommend the use of a λ (lambda) compensator plate. This accessory introduces a known retardation into the optical path, improving the visibility of weak birefringence and allowing accurate determination of crystal orientation and sign.

Specifiche

Ottica


Ingrandimento
50-400x
Oculare
10/20mm (UC-WF 10x/22mm)
Tipo di obiettivo
Planare acromatico (CCIS)
Condensatore
Swing-out Abbe (Pol)
Iluminazione
Luce diretta e trasmessa
Tipo di pila
Illuminazione intercambiabile alogena e LED
Sistema ottica
infinito
Obiettiva 1
Plan Achromat LD 5X/0.13 (WD 17.3mm)
Obiettivo 2
Plan Achromat LD 10X/0.25 (WD 16.3mm)
Obiettivo 3
Plan Achromat LD 20X/0.40 (WD 7.3mm)
Obiettivo 4
UC Plan (strain-free), DIN 40x/0.65/S (WD 0.6mm)

Prestazioni


Alimentatori
Alimentatore 100-240V, spina VDE (CE)
Campo chiaro
si
Polarizzazione
si

Meccanica


Tecnica di fabbricazione
Trinoculare
Messa a fuoco
Movimenti ampi e micrometrici (Comando coassiale di regolazione grossolana e fine)
Visione (°)
25°, 360°
Tavolino portaoggetti
Tavolino portaoggetti
Revolver
5

Particolarità


Borsa anti-polvere
si

Generale


Colore
nero, bianco
Peso (g)
10400
Lunghezza (mm)
410
Altezza (mm)
450
Larghezza (mm)
300
Serie
Panthera TEC POL

Campi di aplicatione


Medicina
si
Industria
si

Campi di utilizzo


Università
si
Tecnologia dei semiconduttori
si
Scienza dei materiali
si
Medicina interna
si

Varie


Codice prodotto del fornitore
1100104600262

Sicurezza del prodotto

Produttore: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
