Astronomy > Filters > Nebulae filters > Line Filter Sets > Baader > Ultra-Narrowband > Baader Filters H-alpha/OIII/SII CMOS Ultra-Narrowband 50,4mm
Product no.: 70904

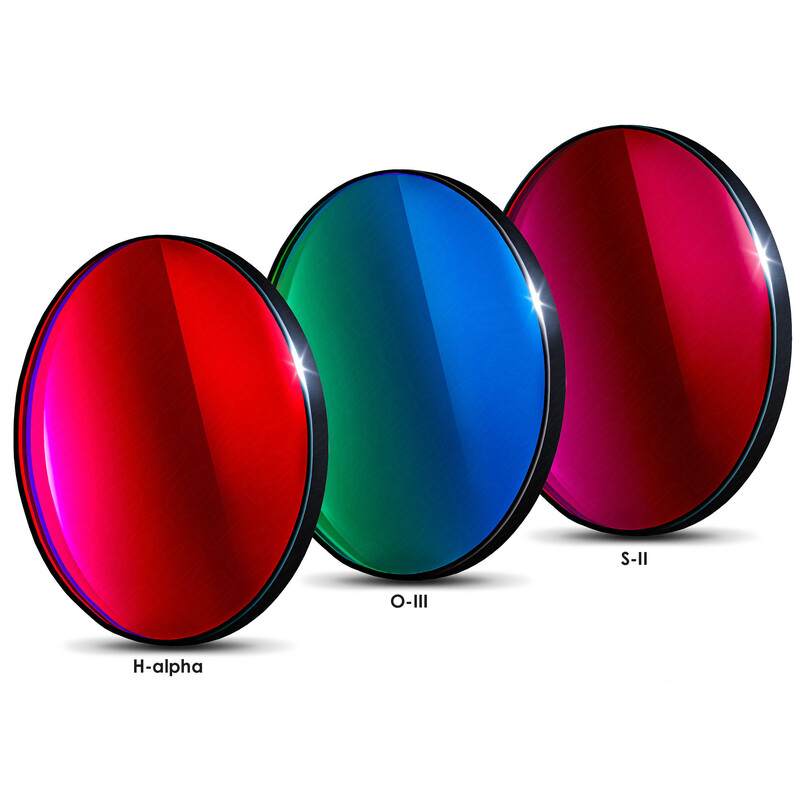

Filters H-alpha/OIII/SII CMOS Ultra-Narrowband 50,4mm

$ 1,290.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Ultra-Narrowband...

H-alpha filter passes light at 656nm wavelength. Best choice of narrowband H-alpha astrophotography filter for high-contrast imaging and revealing rich details of the nebula even in areas with strong light pollution,

OIII Filter: The narrowband O-III 3nm filter is designed for nebula observation allowing 3nm bandwidth of light centered on a wavelength of 500nm through, which corresponds to OIII emission lines, blocking out all other light.

SII filter: The narrowband S-II 7nm filter passes light at 672nm wavelength with a bandpass of 3nm which is designed for nebula fotography.

It is suitable for most emission nebulae, planetary nebulae and supernova remnants.

f you want the look of Hubble Space Telescope (HST) images, such as the famous “Pillars of Creation” (the Eagle Nebula, Messier 16), then the next filter to consider adding to your collection after H-a and OIII is the SII (es-two) or sulfur filter. The SII filter, like H-a, is a deep red filter near 672 nm. H-a, OIII and SII filters provide that Hubble look for many emission nebula. Again, tri-color narrowband imaging with these three filters can be done with the moon up, so your equipment is not sitting dormant for several weeks.

Line filter with narrow half-width, recommended for optical systems from f/10 to f/3.5. Enables maximum contrast even in the strongest light pollution, minimises star size, reveals the finest nebula details – indispensable under Bortle 9/8/7/(6) skies.

Baader's CMOS-optimised filters are characterised by:

  • increased contrast
  • narrower half-widths (FWHM)
  • Reflex Blocker™ coatings for maximum insensitivity to retro reflection from nearby auxiliary optics, even under the most adverse conditions
  • FWHM carefully designed for each filter category to enable 1:1:1 exposures, matched to typical CMOS quantum efficiency and signal-to-noise ratio
  • Identical filter thickness to existing standards, with the utmost care taken to ensure homofocality
  • Blackened edges all around, with filter front indicator in the form of a black outer edge on the front to additionally prevent any reflection from light falling on the filter edge
  • Each filter is individually precision-polished and coated, with a sealed coating edge (NOT cut from a larger plate with exposed coating edges)
  • Life-Coat™: even harder coatings to enable an age-resistant coating with an unlimited service life – even in the most adverse environments

This new CMOS-optimised filter generation is designed to become the new standard in amateur astronomy.

Specifications

Capacity


Central wavelength (nm)
656,3 & 500,7 & 671,7
Half-value width (nm)
3,5 & 4
Frame
ring
Mount material
Aluminium
Coating of optical system
Reflex-Blocker™
Appropriate for...
f/10 - f/3.5
filter thickness (mm)
2
Filter Size (mm)
50,4

General


Type
Filters
Type of build
line filter
Series
Ultra-Narrowband

Area of application


Useful for photographs
yes
Visually useful
no
Twin stars
no
Moon & Planets
no
Nebulae & galaxies
yes

Product safety

Manufacturer: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, www.baader-planetarium.de
Baader Filters H-alpha/OIII/SII CMOS Ultra-Narrowband 50,4mm

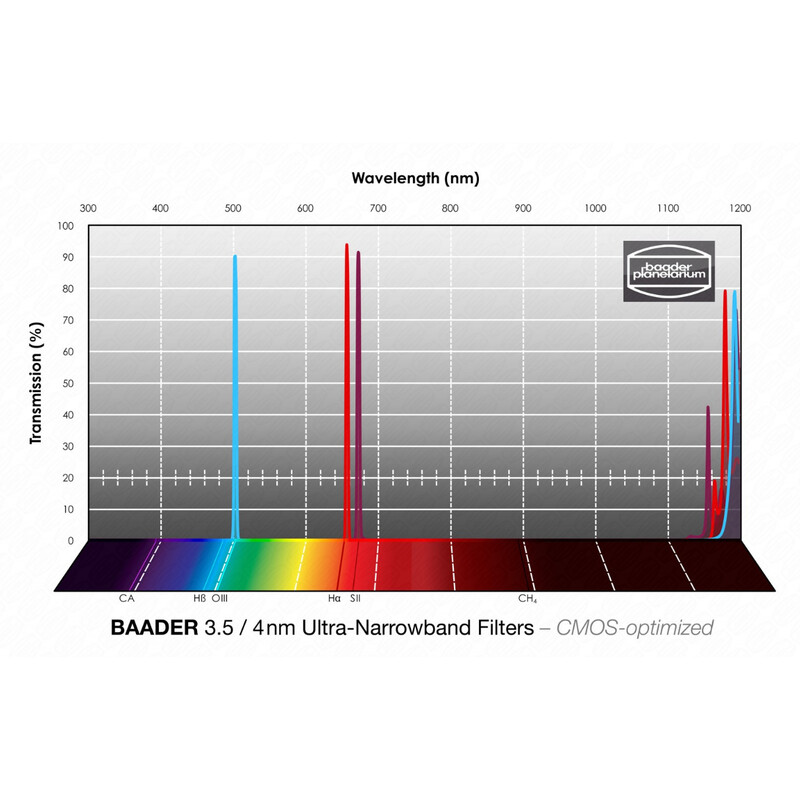

Light transmission curve
