Product no.: 61870

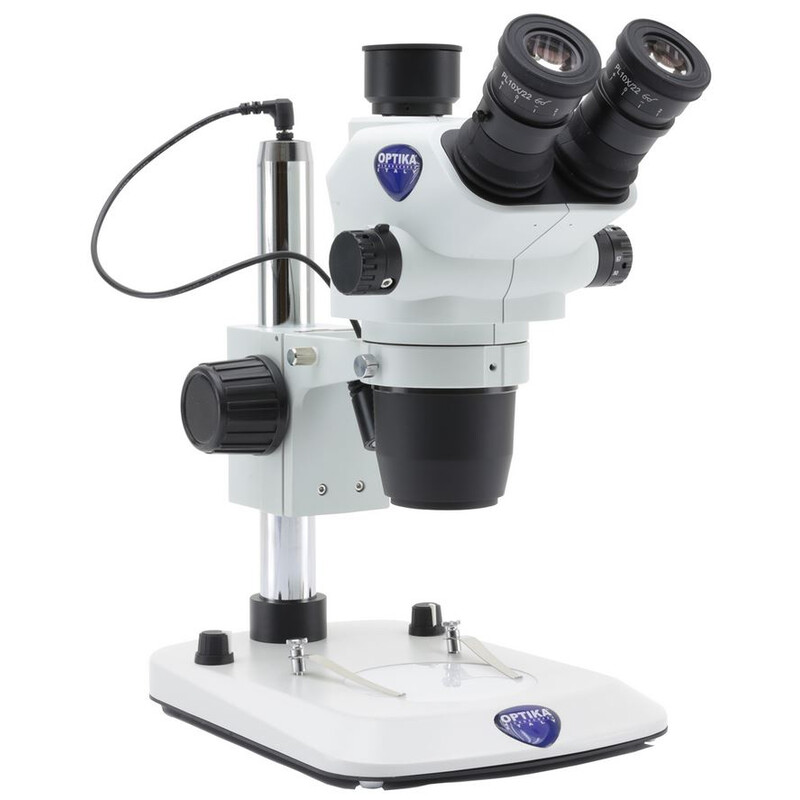

Stereo zoom microscope SZO-4, trino, 6.7-45x, Säulenstativ, Auf-, Durchlicht

RRP: $ 1,320.00 Our price:
$ 1,190.00 incl. VAT
short-term
ready for shipping in 3-5 weeks + lead time

Product description

SZO Series

OPTIKA SZO Series represents a very compact Greenough stereo microscope with 6.72:1 zoom and 110mm working distance for professional environments and laboratories which allows the observation of samples without any particular preparation, yet producing incredibly crisp and detailed images. An extensive range composed by binocular and trinocular heads with 23mm field of view for a very wide peripheral view and comfortable posture even after several hours of operation. Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Discover how easily an enhanced accuracy and repeatability can be achieved thanks to the click-stop zoom for precise and repetitive observations. An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light of 3.6W on selected models), arm extension (including overhanging stands) and focusing system. Special external illuminators and moving/heating stages are also available for specific applications. Keep in my mind the application, always: if you are soldering a printed circuit board, it may be more important to have a long working distance; if you are counting items, then a large field of view will be of great assistance.

Greenough Optical System

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,highly versatile and appreciated for the 3D viewing. Samples with significant depth can be quickly inspected. Binocular and trinocular heads are 45° inclined to grant comfortable posture to the user even after several hours of operation.

Reliable crisp images, repetable zoom settings

Discover how easy is to obtain precise reproduction of magnifications, thus simplifying inspections and measurements. Now, with SZO your observations are easier thanks to the 11-step click-stop system in the zoom which allows you to exactly set the magnification at the same level of the previous time. Zoom control is greatly facilitated with no need of constantly look at the magnification knob.

Incredibly practical and comfortable, especially with cameras

Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Watch at the same time your specimen on a monitor and directly in the eyepieces, without any setting.

STEREOZOOM MICROSCOPES FOR ROUTINE INSPECTIONS X-LED³ EXCLUSIVE LIGHTING SOURCE

Special technology able to double the light intensity for incomparable performance, ensuring constant pure-white colour temperature. Relevant money & energy saving thanks to the incredibly low energy consumptions allow you to cut the electricity bills by 90%! On SZO-3, SZO-4, SZO-5, SZO-6.

LED – OPTIMIZED ILLUMINATION

Money & energy saving thanks to LED long lifetime (65.000 hours, 20 years in case of 8 hours/day) which is more than 20 times compared to a standard halogen bulb. LED illumination is available as transmitted light, cold light and ring light illuminators. On SZO-3, SZO-4, SZO-5, SZO-6.

Specification SZO-4

Observation mode: Brightfield.
Head: Trinocular (fixed photo port 70/30), 45° inclined, 360° rotating.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eye-point.
Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1) with click-stop detents.
Working distance: 110 mm
Specimen stage: Fitted with a diffusing disc for transmitted light, specimen clips and with a black/white disc.
Focusing: Rack and pinion mechanism controlled by a pair of knobs placed on both sides of the stand.
Stand: Pillar stand 32 mm diameter and 315 mm high, base: 270x210x30h mm.
Illumination: Double, adjustable incident and transmitted light with separated brightness controls and 6,300K color temperature:
Incident illuminator: X-LED3 (single LED, 3.6W).
Transmitted illuminator: X-LEDT3 (60 LEDs).
Multi-plug 100-240Vac/12Vdc external power supply.

Specifications

Optics

Image scale
6.7-45
Lighting
Incident light and transmitted light
Condensor
-
Lens type
Achromatic
Eyepiece
10/23
Power supply
-
Magnification
45
Optical system
Greenough

Mechanics

Type of build
Trinocular
Working distance (mm)
110
Viewing posture (°)
45° angled eyepiece, 360° rotatable
Focusing
Coarse movement (Control knobs on both sides)
Specimen stage
Stage plate

Special features

Rechargeable battery operation
-
Filter holder
-
Built-in digital camera
-
Luminous field diaphragm
-
Centering stage
-
Dust cover bag
yes

General

Series
SZO
Colour
white
Height (mm)
315
Length (mm)
270
Width (mm)
210
Weight (g)
4000

Area of application

Mineralogy
yes

Miscellaneous

supplier product number
SZO-4
