Product no.: 63636

Mount AZ 1000 HPS

$ 13,300.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Azimuth mount with high-precision absolute encoders on both axes and high-performance motor drives

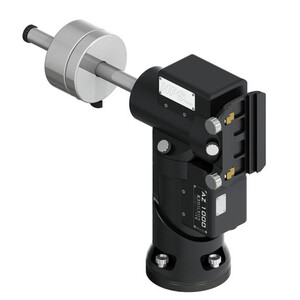

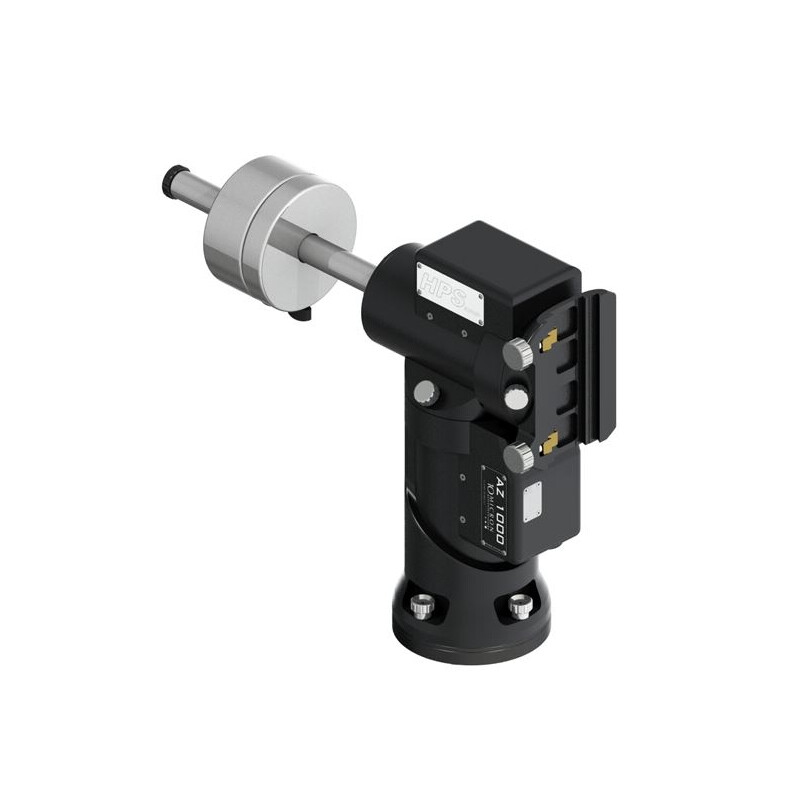

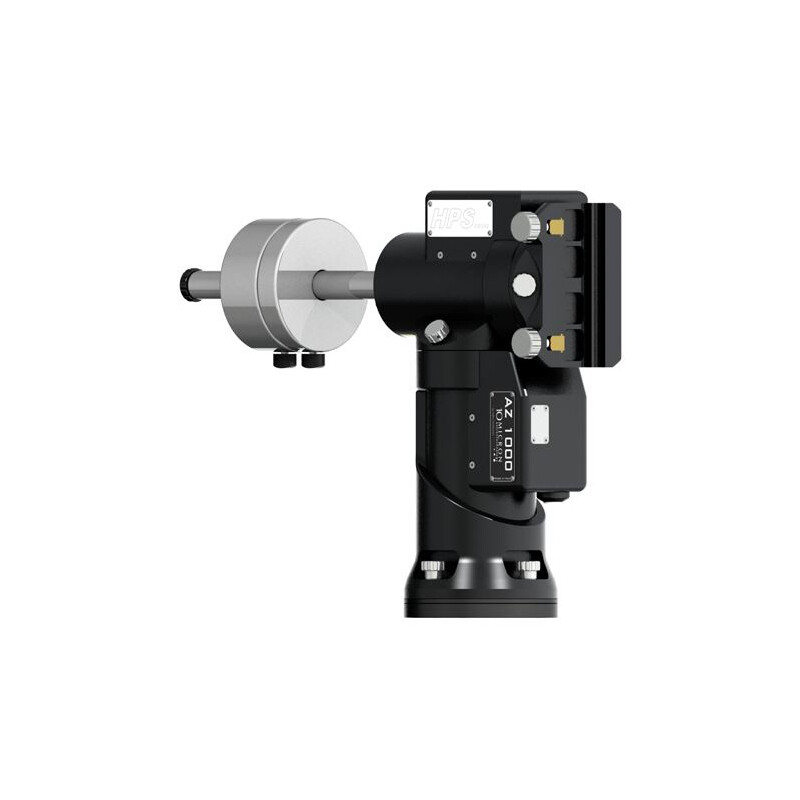

The AZ1000 HPS is an altazimuth mount based on the mechanics of the GM1000 HPS. The AZ1000 HPS is a very versatile, lightweight and portable mount for research purposes, perfectly suited for satellite tracking, photometric and astrometric measurements, seeing monitoring and much more.

Due to its azimuth design, an optional image rotator (ASCOM compatible) is required for astrophotography in order to achieve long exposure times without field rotation.

The standard version comes with a short counterweight bar. It is not necessary to balance the weight of the telescope exactly: with counterweights for approx. 50% of your payload, you will achieve a sufficiently stable configuration. Most of the GM1000 HPS accessories are compatible with the new AZ1000 HPS.

Scope of delivery:

  • AZ1000 HPS mount with integrated precision absolute encoders
  • Control box with onboard intelligence (Linux processor)
  • V. 2 – HPS version firmware
  • Stand-alone system (no PC required)

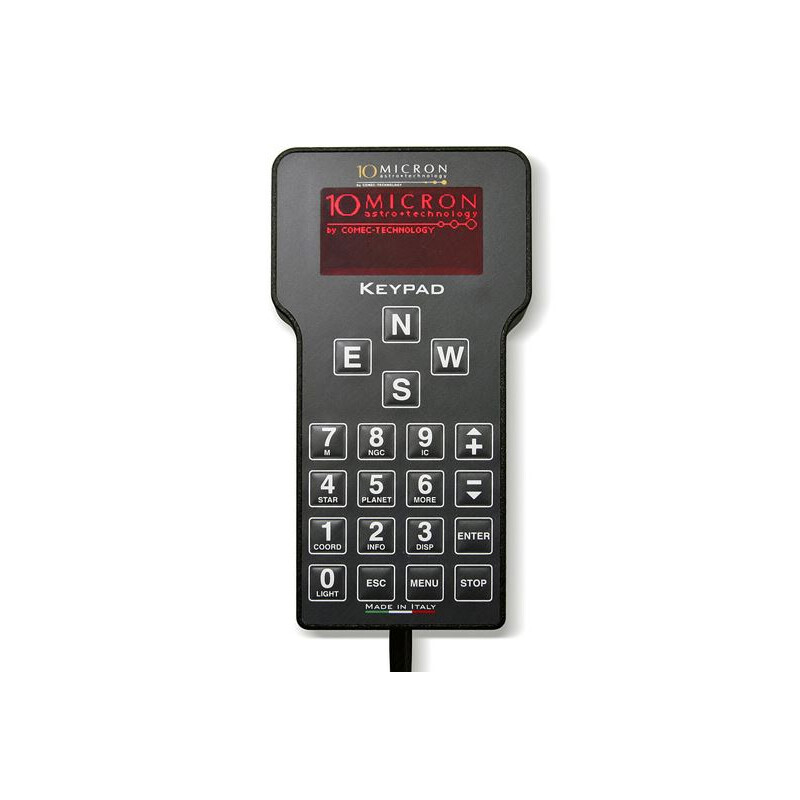

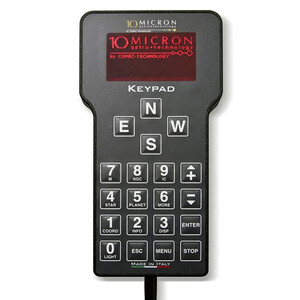

  • Professional handcontroller with graphic display and temperature control
  • Losmandy 3″/Vixen GP dovetail plate
  • cable
  • Counterweight bar
  • Transport box

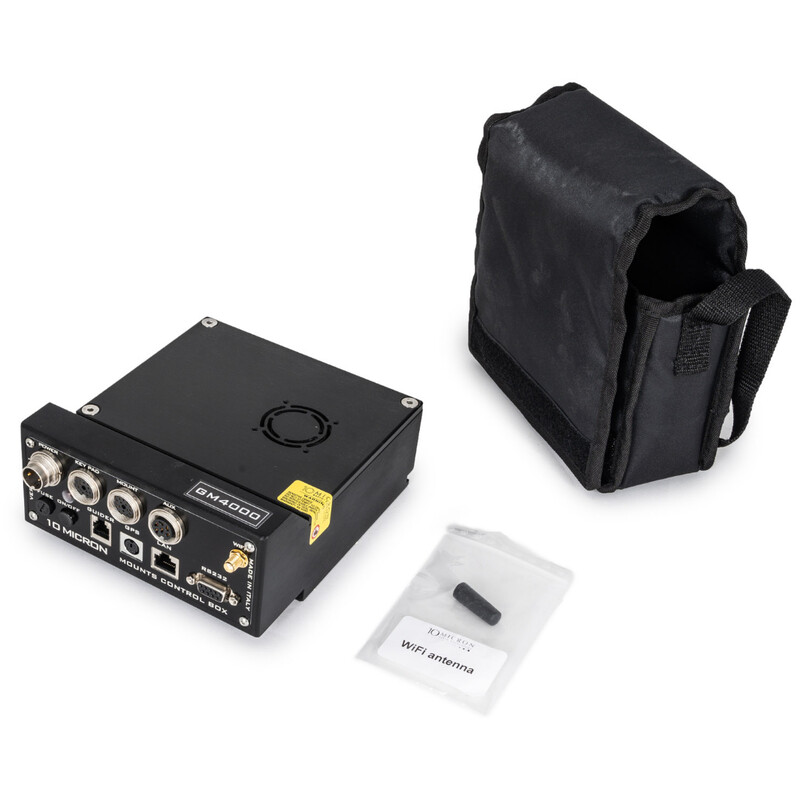

Upgrade: 10micron control box

10Micron has redesigned the hardware of the electronic control box. From now on, all 10Micron mounts will be delivered with the new control box version 3 as standard.

Important new features of the control box V3:

  • Powerful motherboard – New ARM-based processor for higher performance and future-proofing.
  • High-quality industrial connectors – All power and data connections are equipped with high-quality Binder plugs from Deutschland and offer improved protection against moisture, dust and environmental influences.
  • Improved connectivity – A special connection for an external WiFi antenna optimises wireless communication.
  • Optimised data interfaces – New RJ ports for LAN, autoguider and GPS ensure reliable signal transmission.
  • Precise GPS integration – The GPS module is now connected via a PS2 interface (instead of RJ) and has an integrated PPS signal for high-precision time measurement, ideal for satellite tracking.
  • Professional socket/plug for power supply – The previous connection has been replaced by a two-pin Binder plug for 24V DC. A new power cable is included in the scope of delivery.
  • Extended AUX interface – 6-pin AUX connection (DIN EN 61076-2-106) – improves control of remote switches and feedback when switching on.

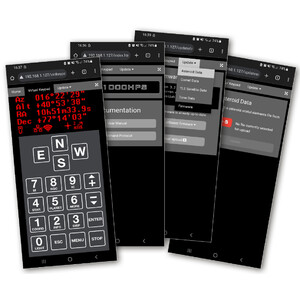

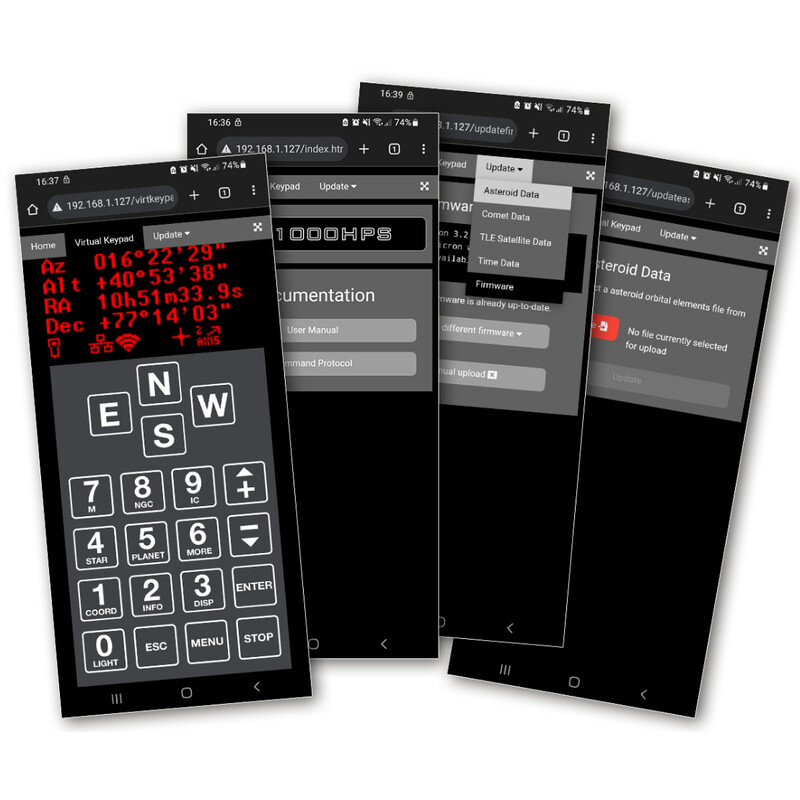

New web interface for all 10Micron mounts

The new control interface is accessible via any web browser – without any additional software. The mount is displayed directly in the local network under its device name.

Features of the new interface (from firmware 3.0):

  • Direct access to user manual and command log
  • Download of TLE data as well as comet and asteroid data
  • Automatic firmware check and easy updates
  • Virtual hand control box with all the functions of the physical keypad
  • Compatible with any browser and any instrument (PCs, laptops, tablets and smartphones) as well as all operating systems

Specifications

Capacity


Max. additional load capacity (kg)
25
Mounting saddle
without
Weight mount head only (kg)
19,5
Slow-motion azimuth adjustment (°)
+/- 10
Diameter of counterweight bar (mm)
40
DEC axis diameter (mm)
30
RA axis diameter (mm)
30
RA worm gear diameter (mm)
125
DEC worm gear diameter (mm)
125
Worm gear teeth (DEC) (piece)
250
Worm gear teeth (RA) (piece)
250
DEC worm shaft diameter (mm)
20
RA worm shaft diameter (mm)
20
Material of worm wheel
Bronze
Material of worm gear
Steel
Input voltage
24
Motor type
Servomotors
Position precision
< 20
Precision of tracking
1 (~ 0,7" RMS)
Interfaces
RS-232, GPS Port, ST-4, Ethernet
Operating temperature
(-15) - (+35)
Drive type
Worm wheel

Special features


GoTo system
yes

Equipment


Tripod
without tripod

General


Series
AZ HPS
Type
Mount
Type of build
Azimuthal

Product safety

Manufacturer: COMEC technology, Via Archimede 719, 21042 Caronno Pertusella (VA), IT, www.10micron.com
Responsible person: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, [email protected]
