Product no.: 59773

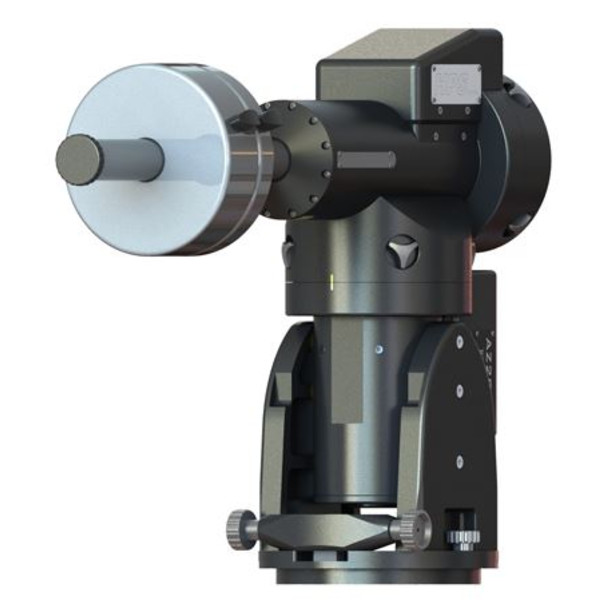

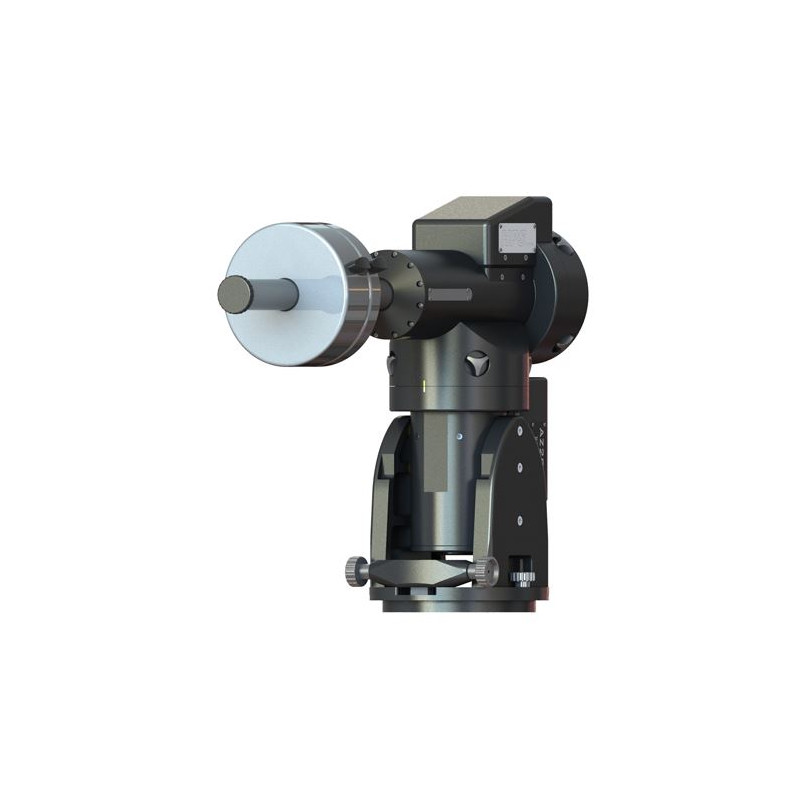

Mount AZ 2000 HPS

$ 16,300.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Azimuth mount with high-precision absolute encoders on both axes and high-performance motor drives

The AZ2000 HPS is a further development of the earlier AZ2000. It is an altazimuth mount based on the mechanics of the GM2000 HPS. The AZ2000 HPS is a very versatile mount for research purposes, perfectly suited for satellite tracking, photometric and astrometric measurements, LiDaR laser applications and much more.

Due to its azimuth design, an image rotator is required for astrophotography. With an image rotator, "classic" astrophotography with the usual 10 micron precision is also possible.

The standard version comes with a counterweight bar and only allows the telescope to be mounted on one side of the mount. A double telescope (DT) version is available as an option, which allows two or more optics to be used side by side. This optimises the load on the mount and utilises the advantages of the azimuth design.

Scope of delivery:

  • AZ2000 HPS mount with integrated precision absolute encoders
  • Control box with onboard intelligence (Linux processor)
  • V. 2 – HPS version firmware
  • Stand-alone system (no PC required)
  • Professional handcontroller with graphic display and temperature control
  • cable
  • Counterweight bar
  • Transport box

Specifications

Capacity


Max. additional load capacity (kg)
50
Mounting saddle
without
Weight mount head only (kg)
30
Slow-motion azimuth adjustment (°)
+/- 10
Diameter of counterweight bar (mm)
40
DEC axis diameter (mm)
50
RA axis diameter (mm)
50
RA worm gear diameter (mm)
172
DEC worm gear diameter (mm)
172
Worm gear teeth (DEC) (piece)
215
Worm gear teeth (RA) (piece)
215
DEC worm shaft diameter (mm)
24
RA worm shaft diameter (mm)
24
Material of worm wheel
Bronze
Material of worm gear
Steel
Input voltage
24
Motor type
Servomotors
Position precision
< 20
Precision of tracking
1 (~ 0,7" RMS)
Interfaces
RS-232, GPS Port, ST-4, Ethernet
Operating temperature
(-15) - (+35)

Special features


GoTo system
yes

Equipment


Tripod
without tripod

General


Series
AZ HPS
Type
Mount
Type of build
Azimuthal

Product safety

Manufacturer: COMEC technology, Via Archimede 719, 21042 Caronno Pertusella (VA), IT, www.10micron.com
Responsible person: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, [email protected]

Recommended accessories

Astronomy (2)

Omegon Pro Powerbank 48k LiFePO4 154Wh 12V

$ 199.00*

*All prices include VAT plus shipping costs.

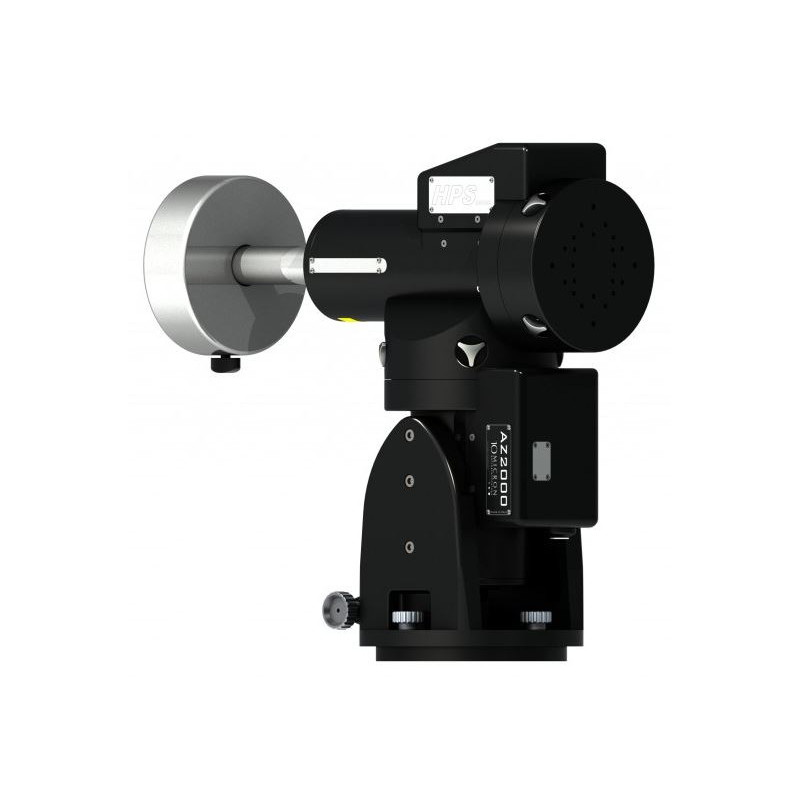

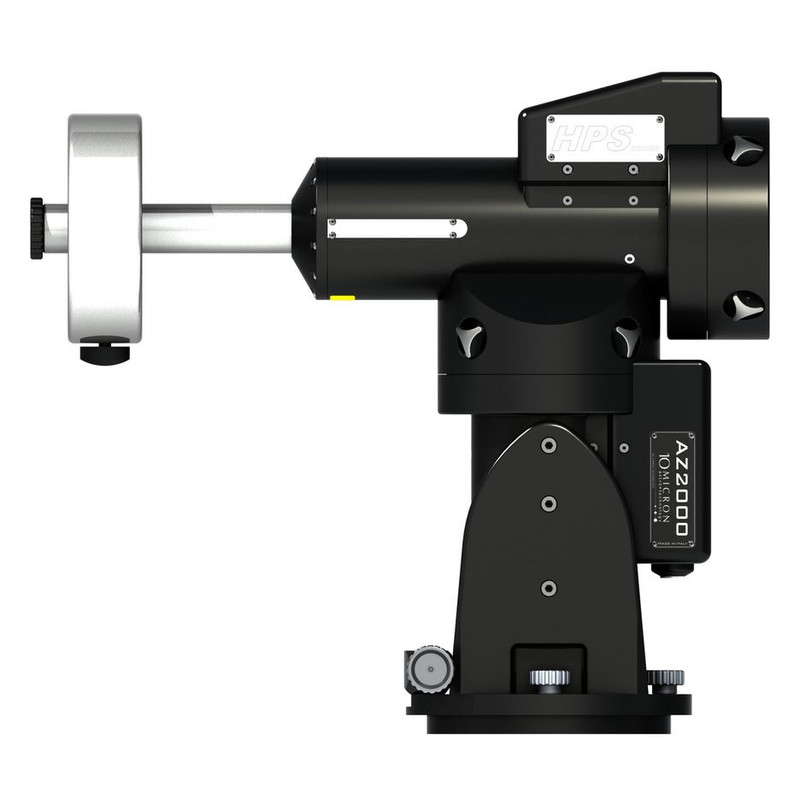

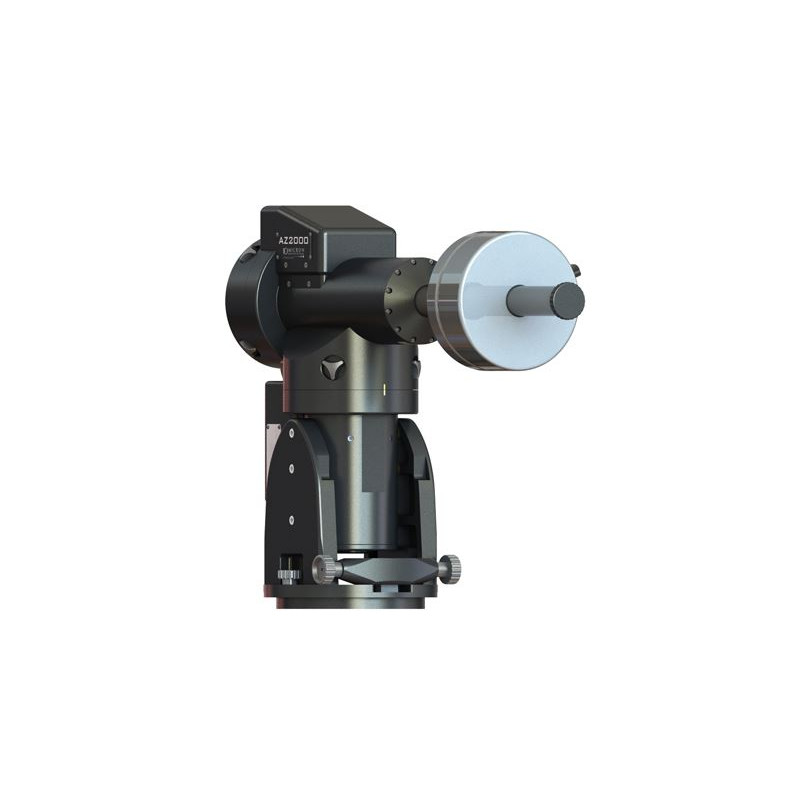

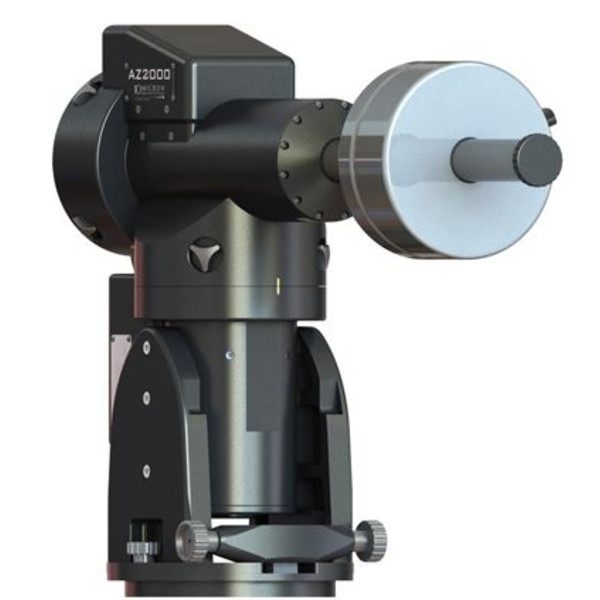

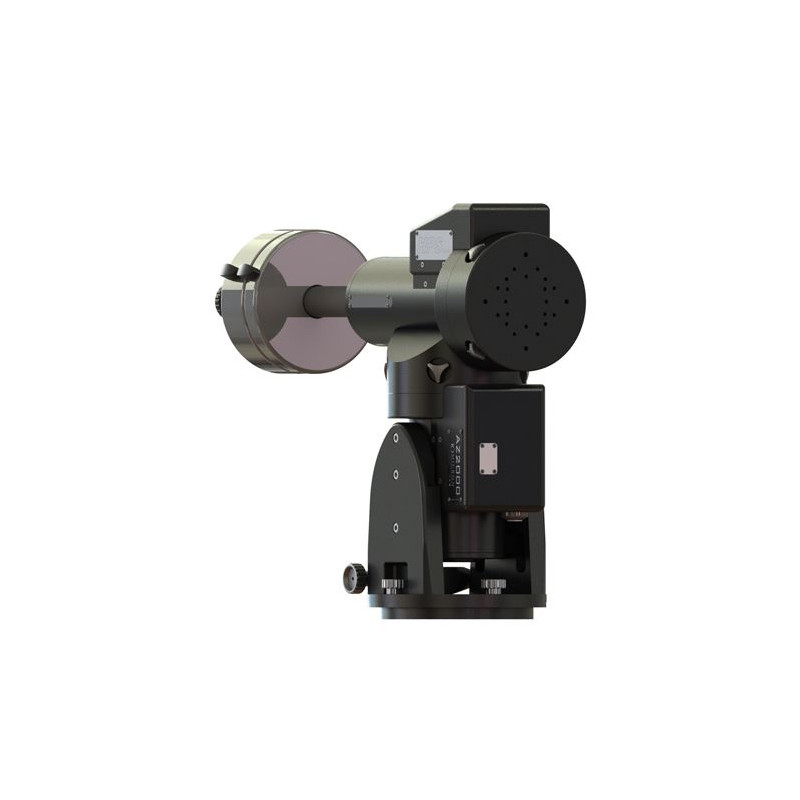

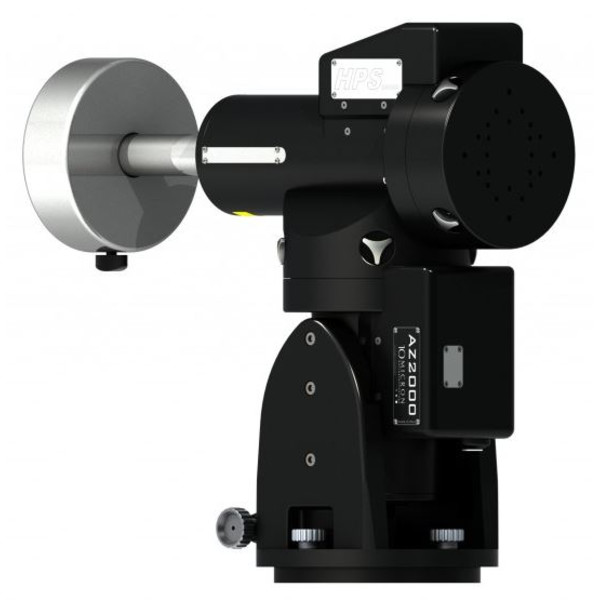

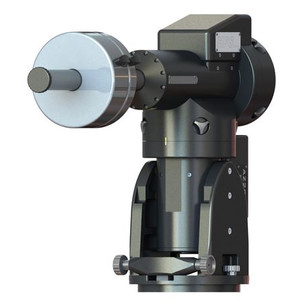

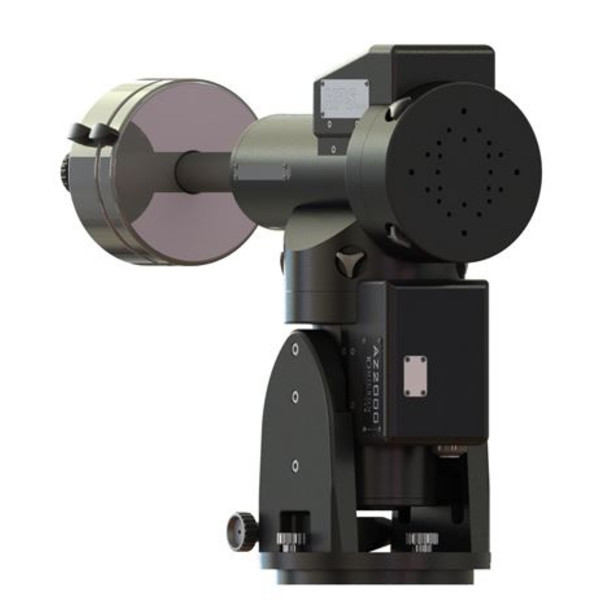

10 Micron Mount AZ 2000 HPS
