Astronomy > Mounts & accessories > Mounts > Alt-azimuth with GoTo > Rowan > Rowan Mount AZ 100 with encoders and Nexus DSC control module
Product no.: 65349

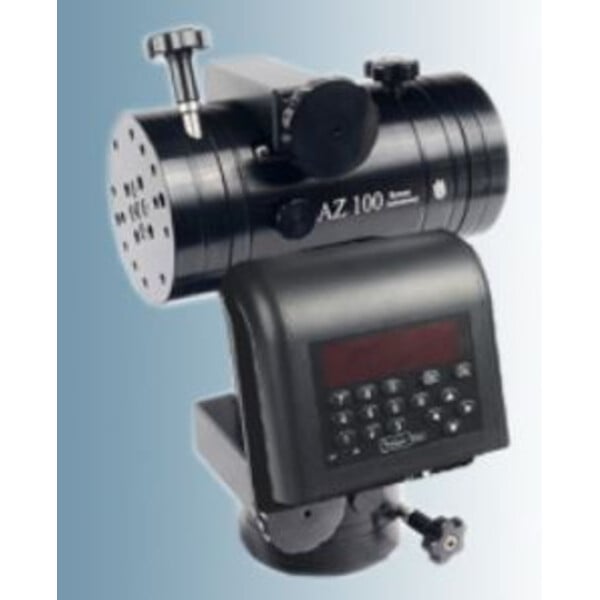

Mount AZ 100 with encoders and Nexus DSC control module

$ 3,430.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 3-6 months + lead time

Product description

CNC machined and black anodised finished and fitted with stainless steel hardware.
Specifications includes an 80.0 mm diameter 7075 aluminium wheel gear and brass worm gear in adjustable worm block.
32mm diameter 7075 aluminium axis shafts supported in high quality ball and taper bearings.
Features included adjustable friction clutches on both axis and 360 degree slow-motion controls allowing simultaneous push-to and slo-mo tracking.
High quality flexible slow motion cables included.
Both slow motion controls remain in alignment with the observer at all times.
Load capacity is 15-20 kg each side depending on scope length.

http://www.rowanastronomy.com/pdf/AZ100Mount.pdf

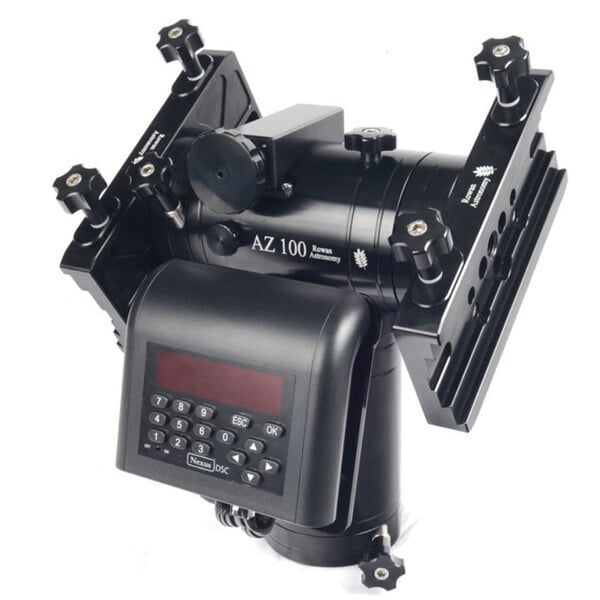

This "upgrade version" of the AZ 100 features built-in encoders and the high-quality Nexus DSC control unit, which turns the AZ 100 into a push-to mount!

Volume weight: 5.00 kg
Product weight: 3.00 kg

Scope of delivery:

  • mount

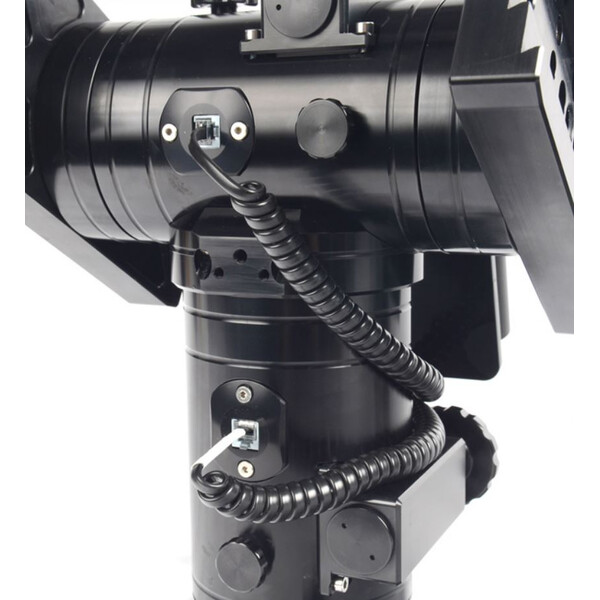

  • Encoder
  • Nexus DSC
  • cable

ATTENTION: The DSC adaptor plate (item no. 68619 / Mounting Plate) and the prism clamps are optional and not automatically included in the scope of delivery! These can be found under "Accessories".

Specifications

Capacity


Designation
Azimuthal
Max. additional load capacity (kg)
20
Material of worm gear
Brass
Material of worm wheel
Aluminium
Counterweight(s) (piece)
Optional
Material of counterweights
Stainless steel
Diameter of counterweight bar (mm)
125
Software
Nexus
Positioning
Slow-motion azimuth adjustment
Built-in clock
-
Cable-guide
extern
Connection
Stativ-Anschluss M12 Innengewinde
Drive type
Worm wheel

Special features


Fitting for prism rail
dual
Manual tracking
yes
Controllable via PC
yes
Updateable via web
yes
Traveling mount
-

General


Colour
black
Total weight (kg)
7,5
Type
Mount
Type of build
Azimuthal

Product safety

Manufacturer: Rowan Engineering Ltd., Unit 9 Overfield Thorpe Way, OX16 4XR Banbury, www.rowanengineering.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
