Astronomy > Mounts & accessories > Mounts > Alt-azimuth without GoTo > Berlebach > Berlebach Mount Wega AZ
Product no.: 85329

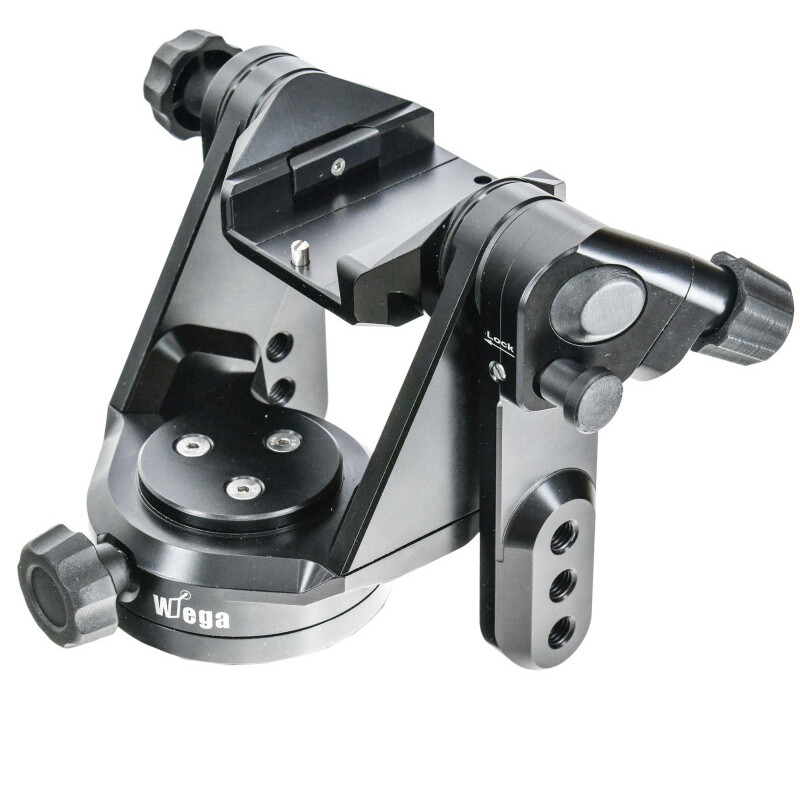

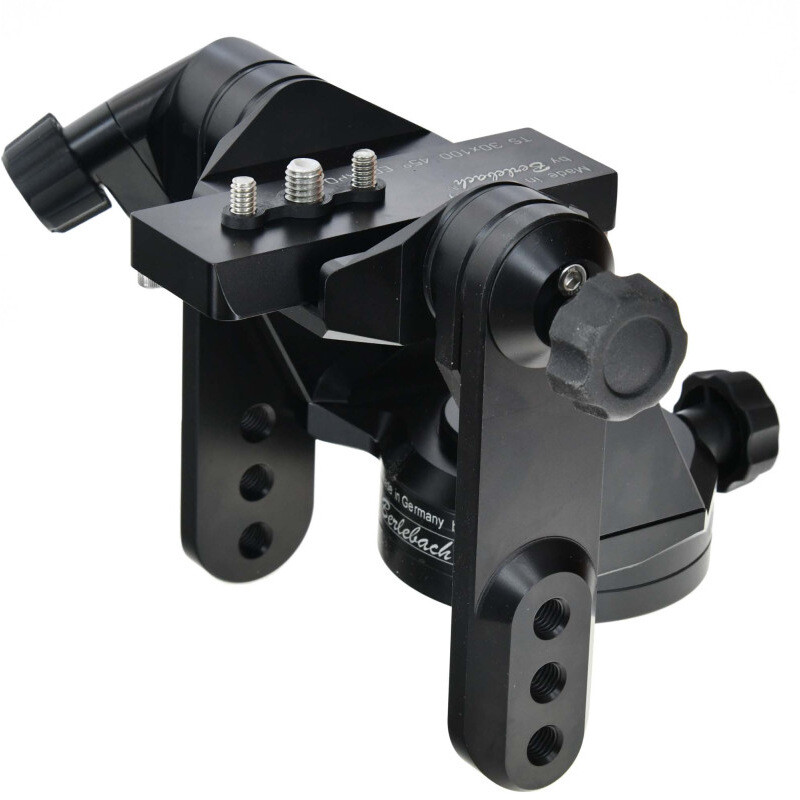

Mount Wega AZ

$ 770.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Load capacity: 25 kilograms
  • Ball bearing axles
  • Compact and robust
Product questions?
advice for Astronomy

Product description

The Wega azimuth mount is characterised by smooth horizontal movements, which are achieved by the ball-bearing axis.

The balance between the optics and the counterweight is easily achieved by repositioning the counterweight bar to three different heights.
The vertical axis can be fixed in place, making it easy to insert the optics.

The delivery includes a 120 mm prism rail, M755.

Specifications

Capacity

Max. additional load capacity (kg)
25
Connection (tripod side)
3/8

Special features

Fine adjustment
no
Manual tracking
yes

Equipment

Motor-powered
no
Tripod
without tripod
Prism rail
yes

General

Type
Mount
Type of build
Azimuthal
Total weight (kg)
2,1

Product safety

Manufacturer: Berlebach Stativtechnik, Chemnitzer Straße 2, 09619 Mulda, DE, http://www.berlebach.de
Product safety

Recommended accessories

Photo Tripods (1)
Wooden tripod

Berlebach Wooden tripod Uni 19C

$ 870.00*
Astronomy > Mounts & accessories (5)
Counterweight

Berlebach Counterweight 3.00 kg

$ 175.00*
+ Show more accessories in this category: 4

*All prices include VAT plus shipping costs.

show more...
Berlebach Mount Wega AZ

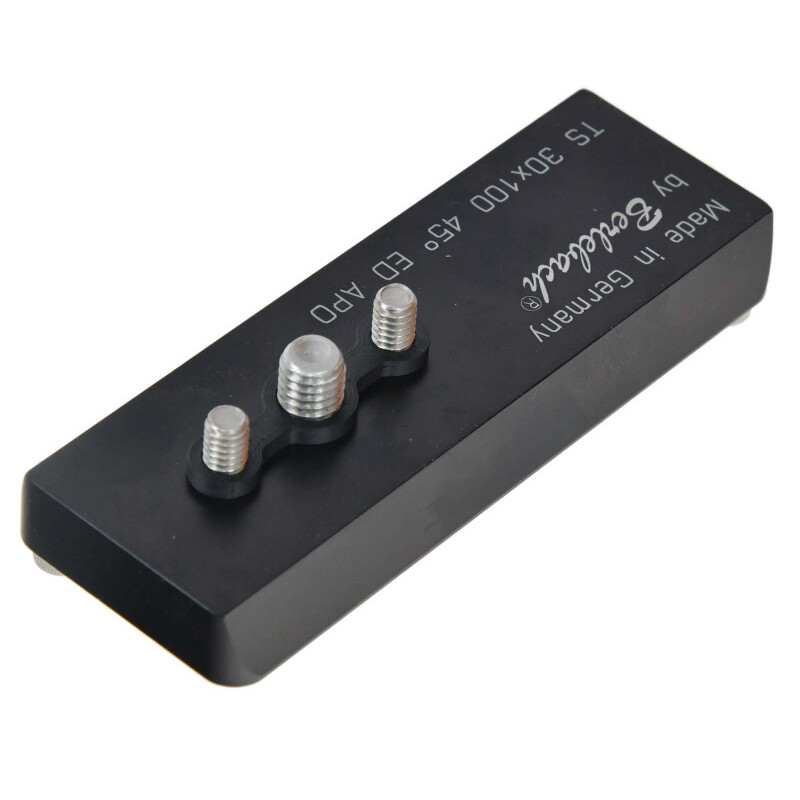

Prism rail
Berlebach Mount Wega AZ

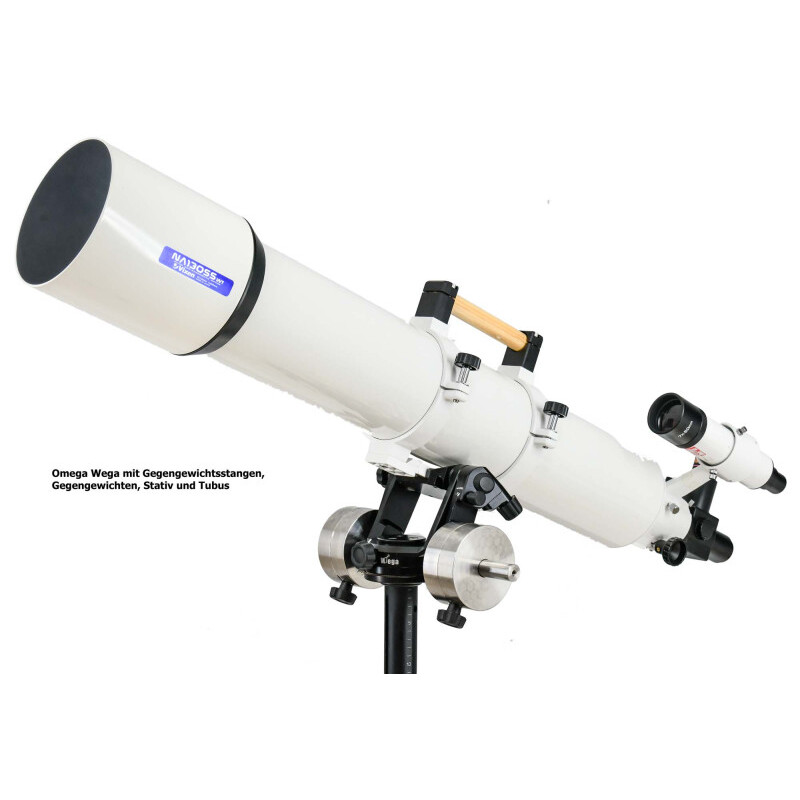

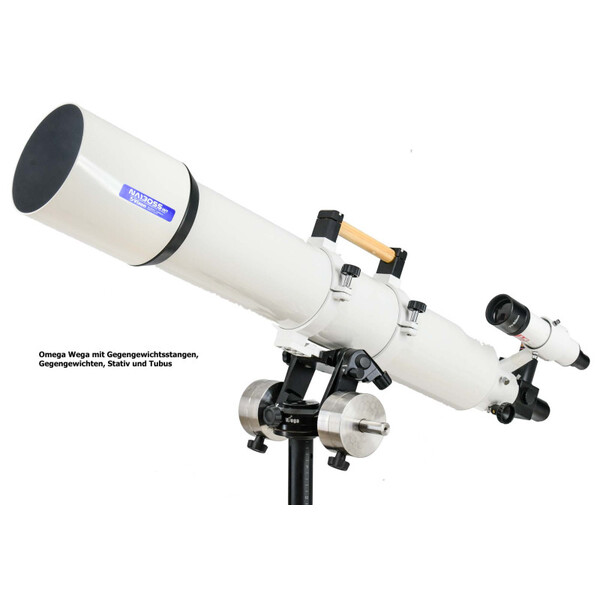

Typical application 1

Berlebach Mount Wega AZ

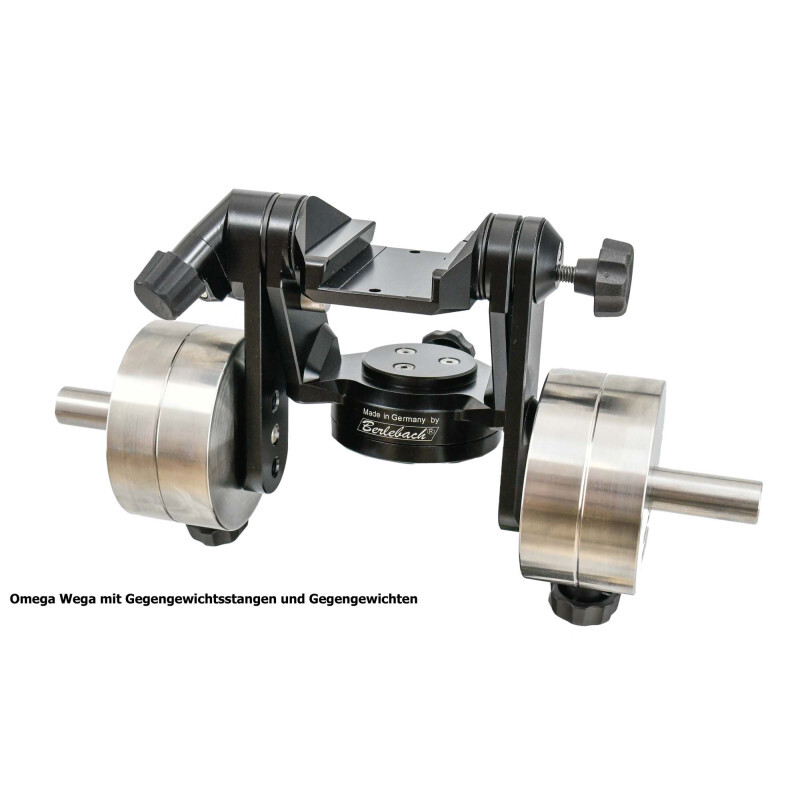

Typical application example 2

Berlebach Mount Wega AZ

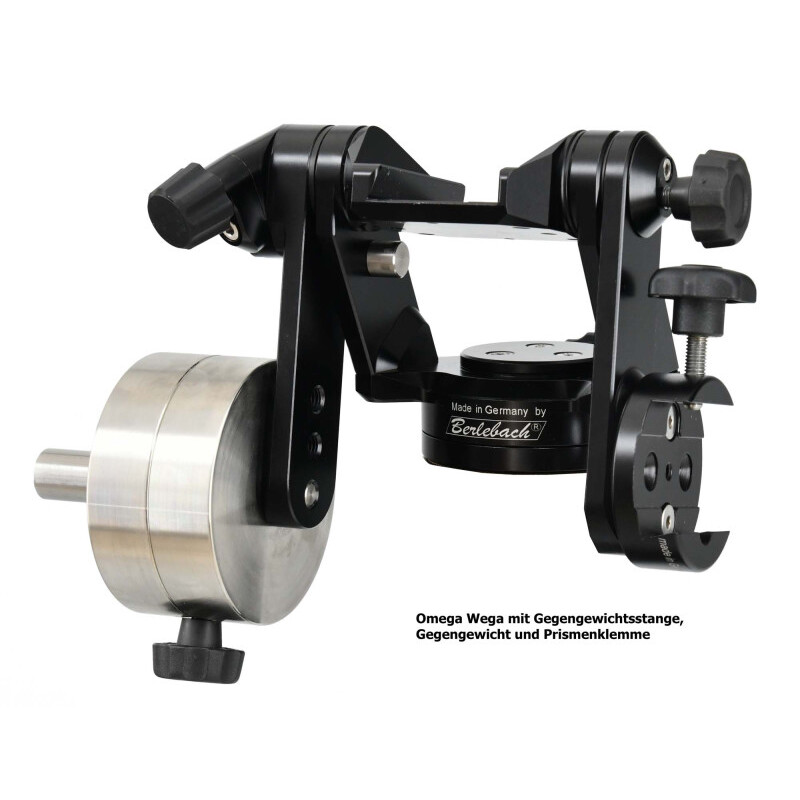

Example of use 3

Berlebach Mount Wega AZ

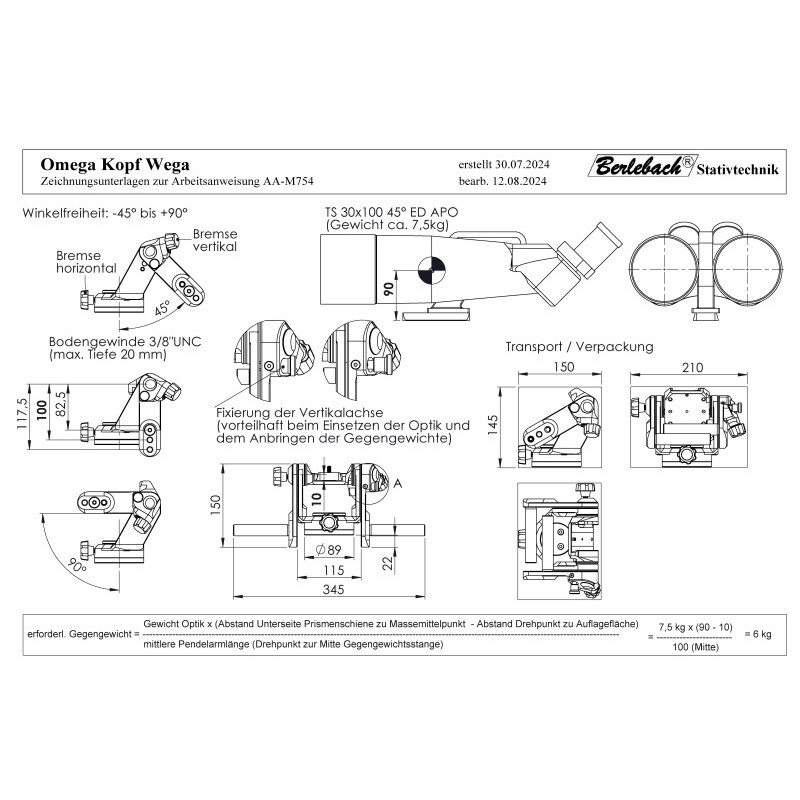

Dimensions
