Product no.: 9346

Microscope FE.2030

$ 4,190.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The Euromex microscopes of the F-series are routine and research microscopes, which are used in higher education, science and in biological, medical and industrial laboratories. The inverted microscopes in this range are suitable for studies of cell cultures and Hydrobiology. The microscopes give a crisp, flat image. The big eye lenses of the eyepieces suitable for eyeglass wearers and guarantee a relaxed observation.

The FE.2030

This model comes with a DIN eyepieces KHWF with 10 times magnification and 4 semi-plan lenses with 4-fold, 10-fold, 40-fold and 100-fold magnification. The 40 and 100-fold lens have a springy version of the product to protect against damage. Thus the maximum is 1000-fold magnification possible

The built-in mechanical stage has an area of 17x14 cm.

Specifications

Optics


Magnification
1000 (40, 100, 400, 1000)
Eyepiece
10 (HWF compensation eyepiece)
Condensor
Abbe (N.A. 1.25, height adjustable)
Lighting
Transmitted light
Lamp type
Halogen (6V/30W, continuously adjustable, Köhler illumination)
Lens type
Plan Achromatic
Image scale
4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection), 100 (N.A. 1.25 oil immersion, with specimen protection)
Power supply
Power plug

Mechanics


Focusing
Coarse and fine movement (coaxial, with 0.0025 mm division)
Type of build
binocular
Specimen stage
Cross table (80 x 52 mm, on specimen stage: 171 x 140 mm, with vernier scale, 0.1 mm division)
Viewing posture
30° oblique viewing, 360° rotating head

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Series
FE-Serie
Colour
black-white
Weight (g)
8400
Suitable from
16

Suitable for


Beginners
-
Advanced
-
Pros
yes

Field of application


Biology and Medicine
yes

Area of application


Phase contrast
-
Polarization
-
Interference contrast
-
Dark field
-
Metallurgy
-
Fluorescence
-
Biology, zoology & botany
yes
Forensic science
yes
Cell culture
yes
Veterinary medicine
yes

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de

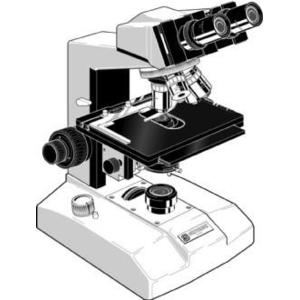

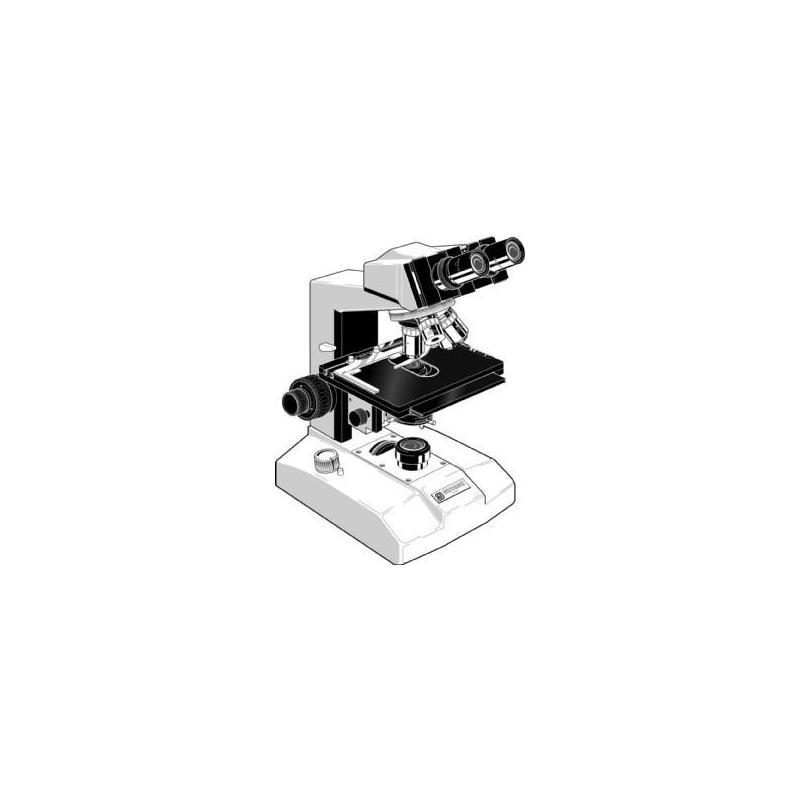

Euromex Microscope FE.2030
