Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Evident Olympus > BX53M > Evident Olympus Microscope Olympus BX53-MET, HF, trino, infinity, plan, incident/transmitted light, LED
Product no.: 69251

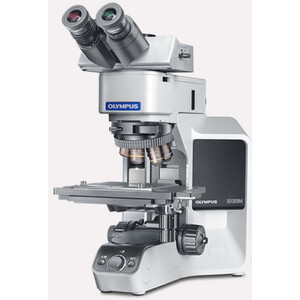

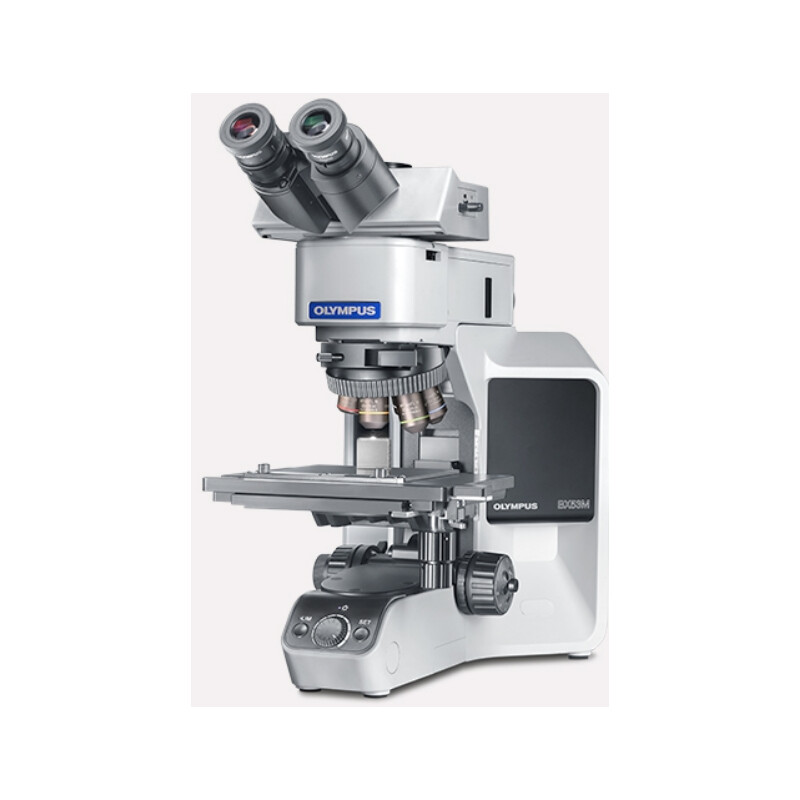

Microscope Olympus BX53-MET, HF, trino, infinity, plan, incident/transmitted light, LED

$ 17,100.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Microscopy

Product description

More about the series BX53M...

Specification

  • Optical system: infinity corrected
  • Tripod: Up-through light
  • Focus travel: 25 mm, 100 µm per revolution, smallest division: 1 µm, with upper stop and torque adjustment for coarse adjustment
  • Max. height of object: 35 mm (without spacer), 75 mm (with spacer BX3M-ARMAD)
  • Observation tube: Wide field of view (F.N,22), inverted: Binocular with camera tube
  • Objective turret for bright field: 5-fold
  • Eyepieces: 10x/22 diopter adjustment on one side
  • Lighting: White light LED, HF, illuminated field diaphragm
  • Reflected light condenser with aperture diaphragm with centring, reflected light dark field lock
  • Table (X x Y) 76 mm × 52 mm Coaxial table with left-hand drive with torque adjustment
  • Transmitted light condenser with large working distance
  • Weight: approx. 18.3 kg (microscope stand 7.6 kg)

Modules

  • Microscope tripods & mounts: BX53MTRF-S-1-3
  • Trinocular tube: U-TR30-2-2
  • Eyepiece: WHN10X-1-8
  • Eyepiece: WHN10X-H-1-8
  • Objective turret: U-5RE-2
  • Cross table, clockwise rotation: U-SVRM
  • Table insert plate: U-MSSP
  • Specimen holder: U-HRDT-4
  • Reflected light condenser: U-KMAS
  • Light source, reflected light: BX3M-LEDR
  • Abbe condenser: U-AC2-7
  • Light source, transmitted light: BX3M-LEDT
  • Connection cable: UYCP

Specifications

Optics

Lighting
Incident light and transmitted light
Lamp type
LED
Eyepiece
10/22
Optical system
infinity

Mechanics

Type of build
Trinocular
Viewing posture (°)
45° viewing angle, interpupillary distance adjustable from 52-76mm
Focusing
Coarse and fine movement
Specimen stage
Cross table
Working distance (mm)
35

Special features

Filter holder
yes

General

Series
BX53M

Contrast methods

brightfield
yes
Dark field
optional
Fluorescence
optional
Phase contrast
no
Polarization
optional
DIC
optional

Field of application

Industry
yes
Medicine
-
Education
-

Area of application

Metallurgy
-
University
yes
Semiconductor technology
yes
Materials technology
yes
show more...
