Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Hund > Med Prax > Hund Microscope MED PRAX 3, bino, 40x - 1000x

Product no.: 53098

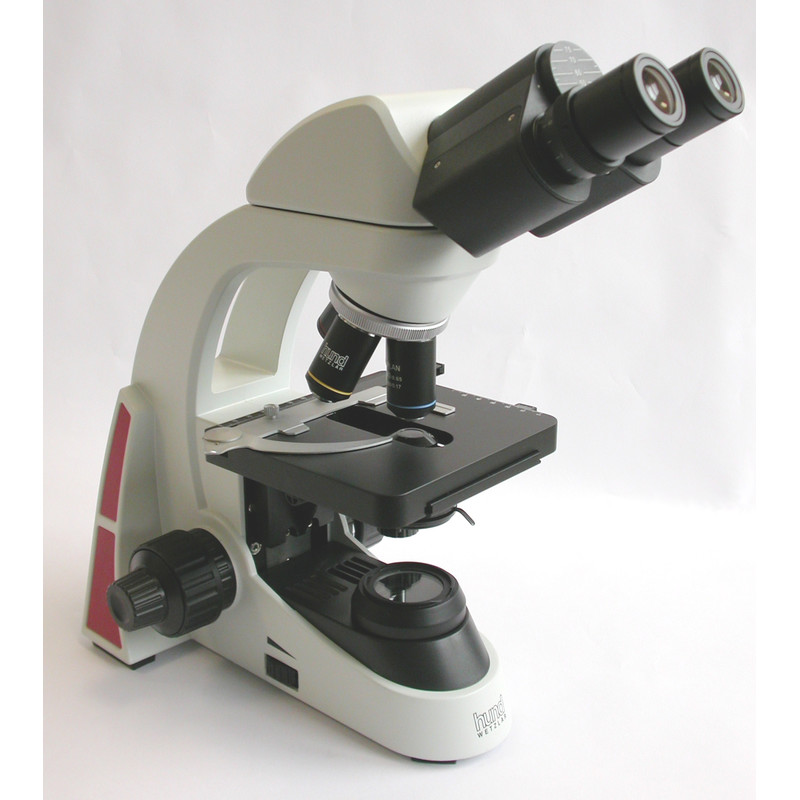

Microscope MED PRAX 3, bino, 40x - 1000x

Name: Hund Microscope MED PRAX 3, bino, 40x - 1000x
Brand: Hund
Price: 900 USD

$ 900.00 incl. VAT plus shipping costs

too expensive?

short-term
ready for shipping in 1-2 weeks + lead time

add to cart

Product questions?

advice for Microscopy

Product description

Med-Prax 3

The microscope for biological laboratories and education

A safe investment: reliable microscopic results with expert advice

Thanks to its special features, the Med-Prax 3 is the ideal instrument for routine examinations of biological samples in medicine and education.

• Easy adjustment of the bright field image

• Ergonomic working

• Long-life LED lighting

• Optimal image quality

• High stability and durability

Specification:

Description

Tripod: 4-position objective turret
Contrast method: transmitted light, bright field
Tube: binocular, 30°; Siedentopf type
Eyepieces: wide field 10x/18
Objectives: Plan 4/0.10, Plan 10/0.25, Plan 40/0.65 and Plan 100/1.25 (oil)
Magnification: 40 - 1000x
Microscope stage: Cross table 140 mm x 130 mm
Condenser: Bright field condenser NA 1.25, with aperture diaphragm
Lighting: high-performance LED, white
Accessories: Power pack, immersion oil, operating instructions, dust cover
Order number: 53098

Specifications

Optics

Image scale

4-100

Lighting

Transmitted light

Condensor

NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

Lamp type

LED

Lens type

Plan, achromatic

Eyepiece

10 x /18 (Diopter correction left)

Magnification

1000 (50, 100, 500, 1000)

Objective 1

4/0,10 plan-achromatisch

Objective 2

10/0,25 plan-achromatisch

Objective 3

40/0,65 S plan-achromatisch

Objective 4

100/1,25 S Oil plan-achromatisch

Optical system

DIN (160mm)

infinity corrected

Capacity

Brightness control

yes

brightfield

yes

Mechanics

Viewing posture (°)

Siedentop tube; 30° viewing angle

Specimen stage

Cross table (140 mm x 130 mm; 76 mm x 50 mm)

Type of build

binocular

Focusing

Coarse and fine movement

Revolver

Special features

Dust cover bag

yes

General

Series

Med Prax

Field of application

Education

yes

Medicine

yes

Biology

yes

Area of application

University

yes

Veterinary medicine

yes

Technical training

yes

High School

yes

Internal medicine

yes

Naturopathy

yes

Gynecology

yes

Central laboratories

yes

show less...

Downloads

Brochure (DE)

Booklet (EN)

In-vitro diagnostics

Product safety

Manufacturer: Helmut Hund GmbH, Artur-Herzog-Str. 2, 35580 Wetzlar, DE, www.hund.de

Product safety

Recommended accessories

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L

Omegon microscope slides, 25.5 x 76.2cm, ground edges, 50 pieces

$ 9.90*

+ Show more accessories in this category: 1

- Show less accessories in this category

Zoomion cleaning system

$ 4.90*

Omegon 7-in-1 lens cleaning set

$ 19.90*

Omegon cleaning system

$ 5.90*

Baader Lens Cleaning Pump Spray Optical Wonder 100ml

$ 27.90*

+ Show more accessories in this category: 3

- Show less accessories in this category

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

Omegon SPUDZ microfaser cleaning cloth

$ 14.90*

+ Show more accessories in this category: 1

- Show less accessories in this category

*All prices include VAT plus shipping costs.

show less...

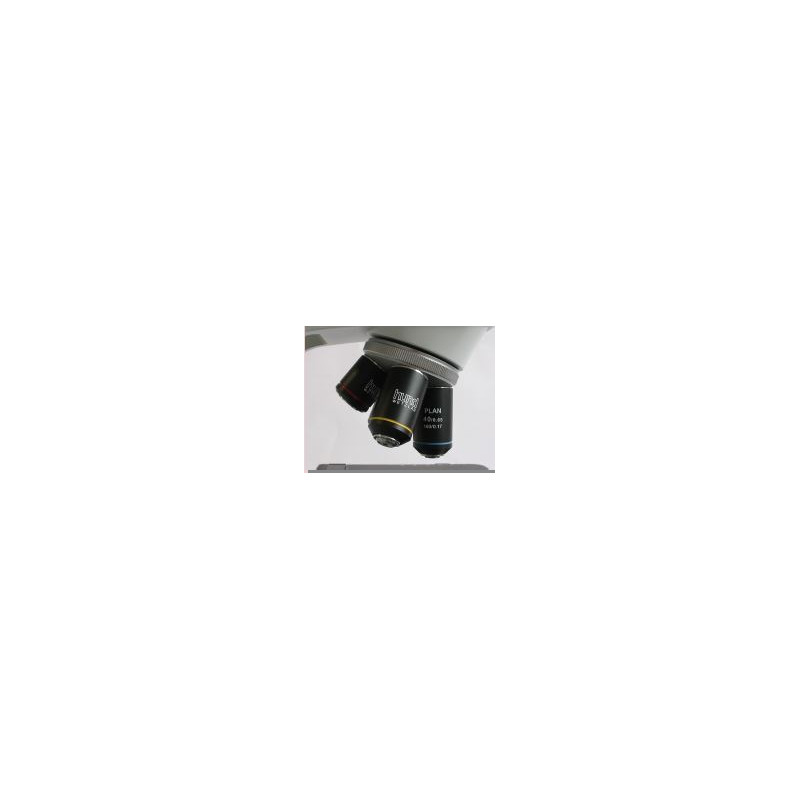

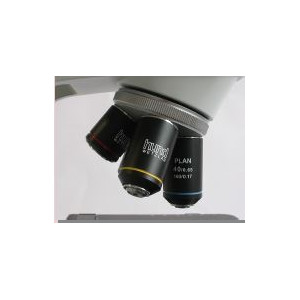

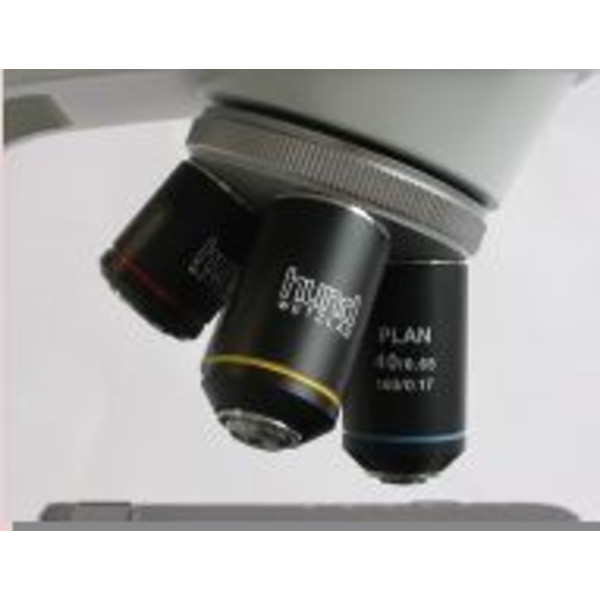

quadruple nosepiece with planachromatic objectives

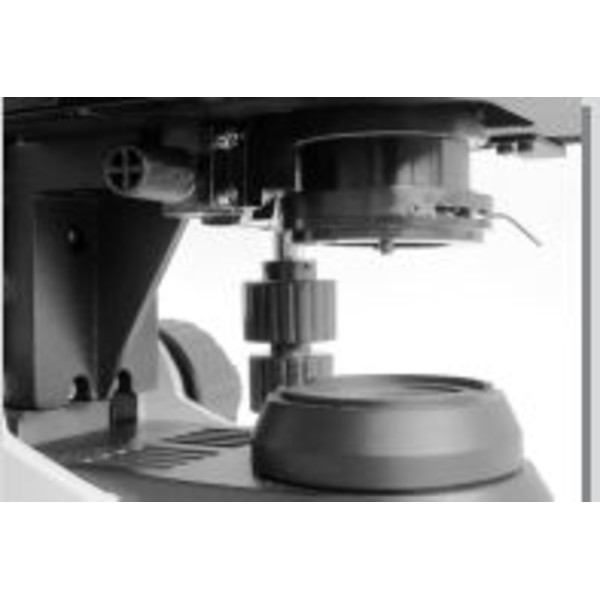

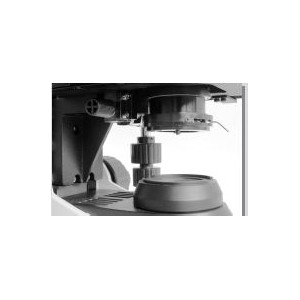

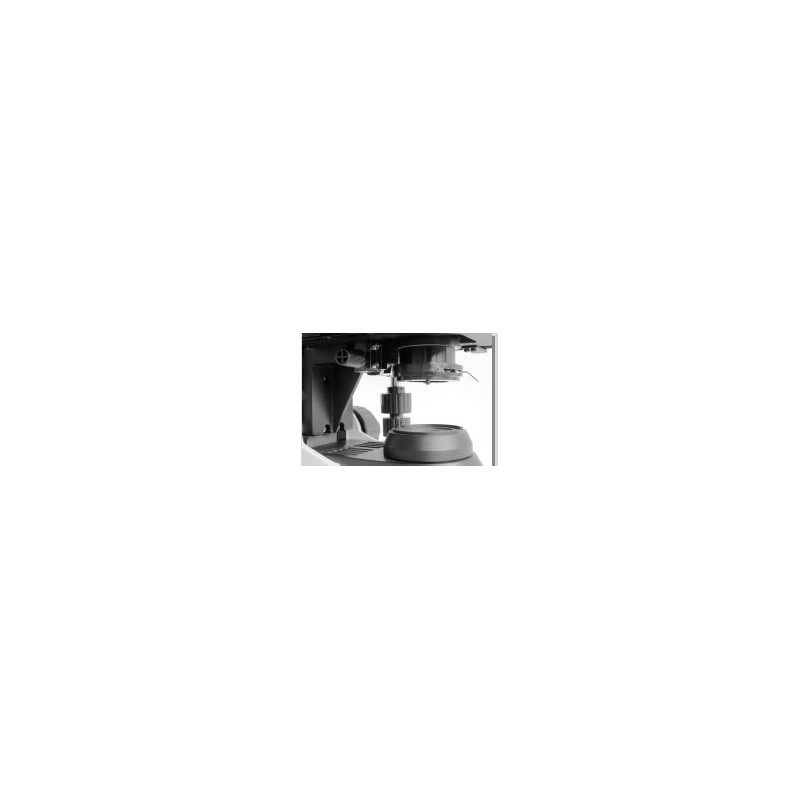

Abbe condenser (NA 1 .25) with aperture diaphragm

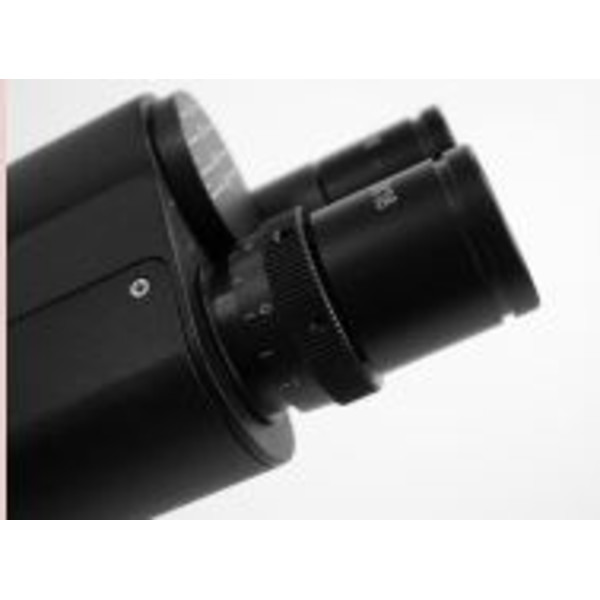

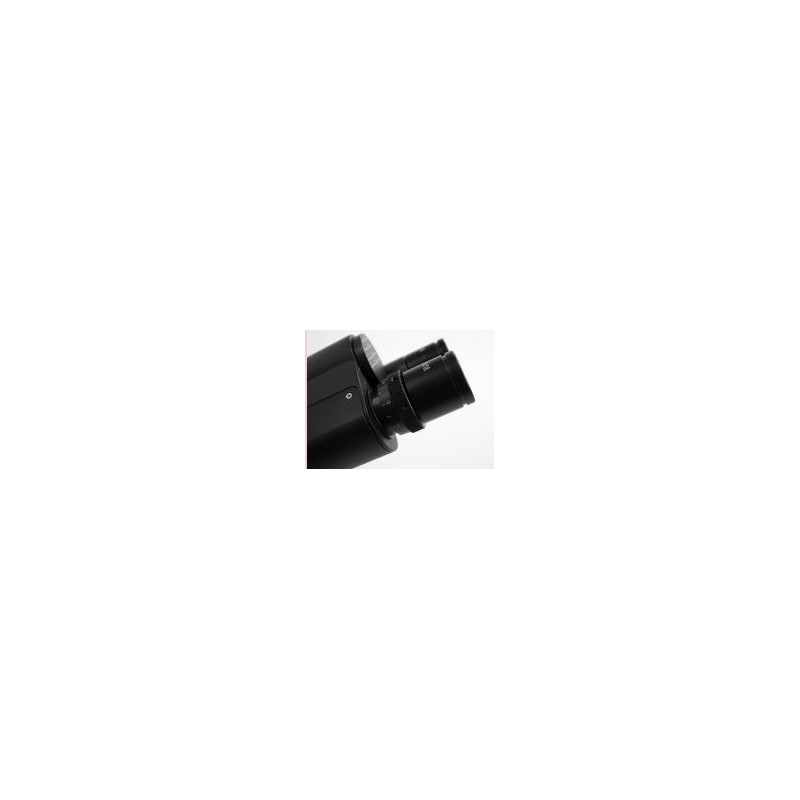

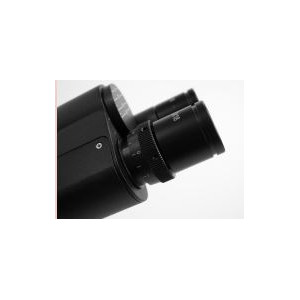

eypepieces WF 1 0x/1 8 with diopter correction

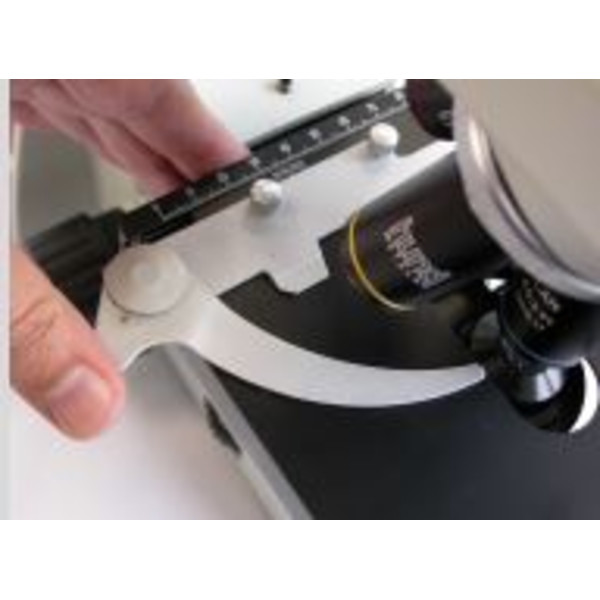

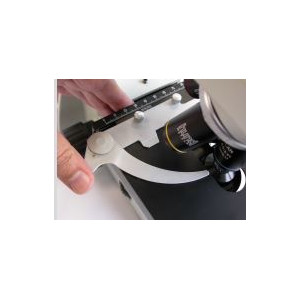

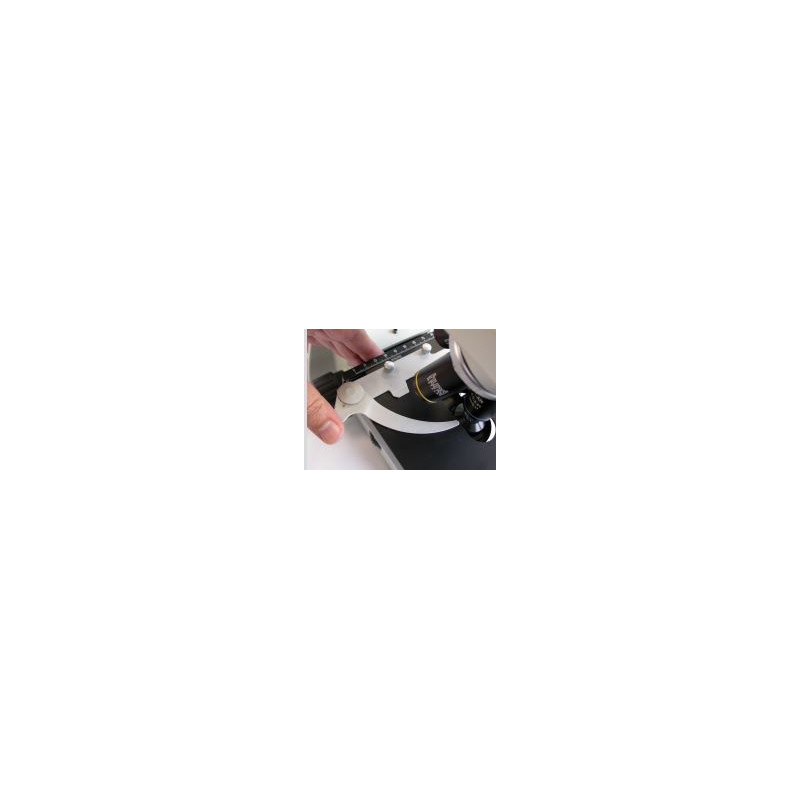

140 mm x 130 mm mechanical stage
