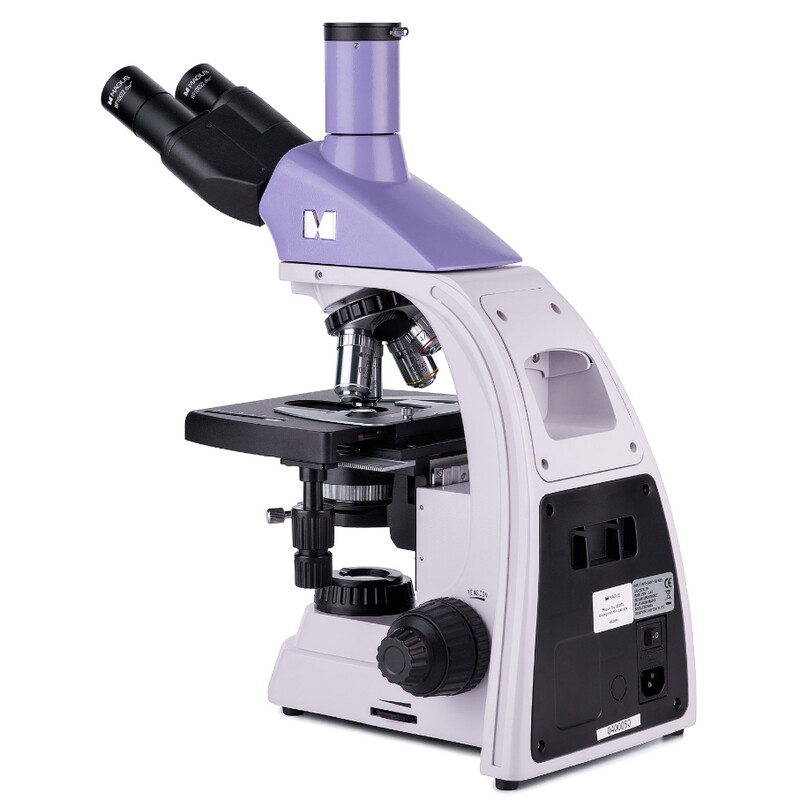

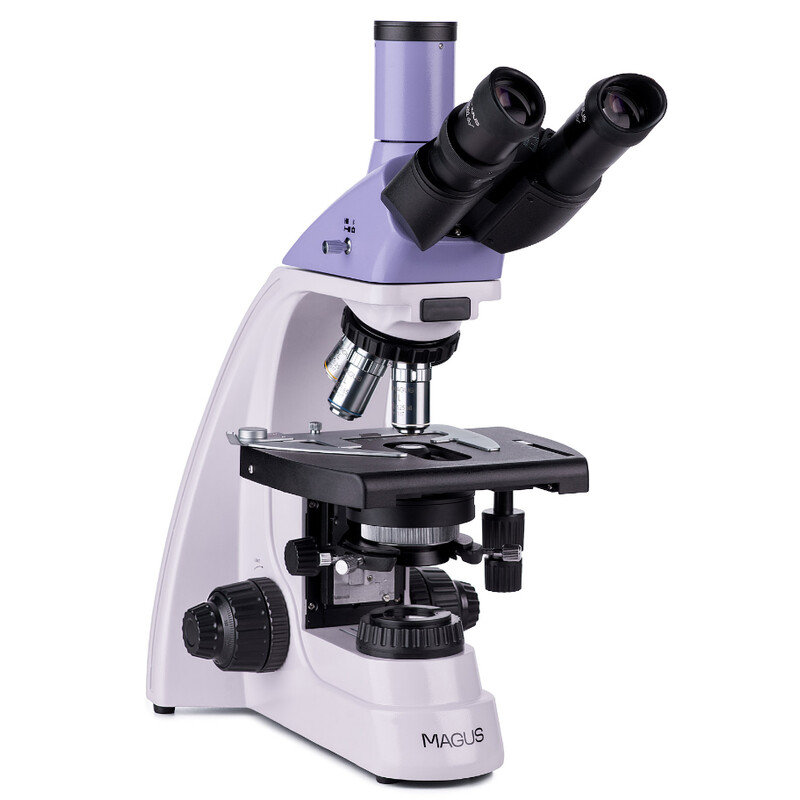

The MAGUS Bio D250TL LCD microscope is used to examine thin sections and smears of biological samples. Observations are made using bright field microscopy in transmitted light. A 3-watt LED serves as the light source, and the optics feature infinity-corrected plan achromatic lenses.
The microscope supports additional accessories, including dark field, polarisation and phase contrast devices. This microscope is the ideal choice for laboratories, research and teaching.
The microscope:

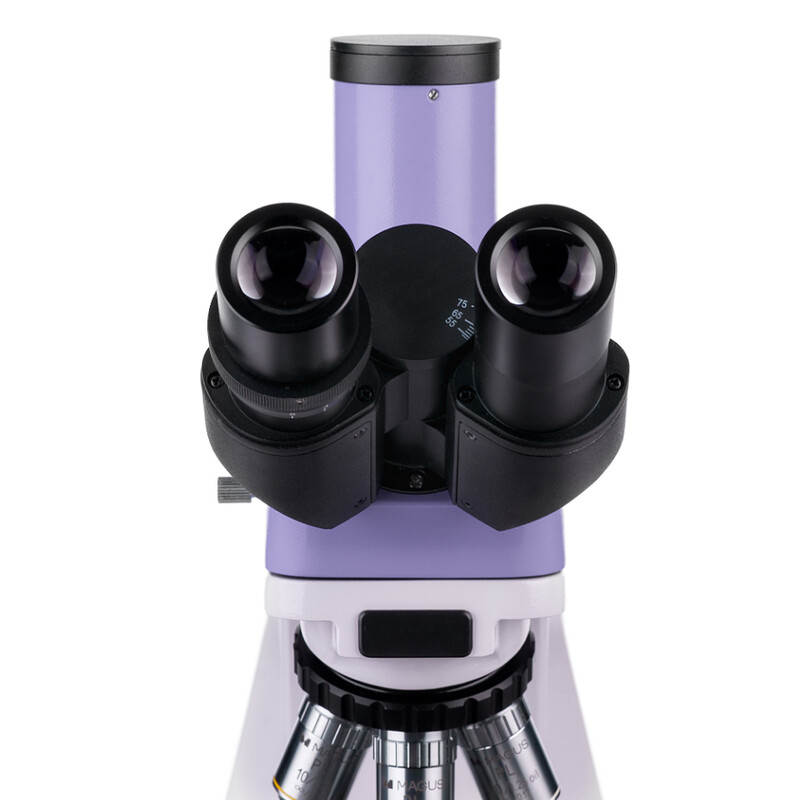

- Trinocular head, objective turret for 5 lenses, infinity-corrected plan achromatic optics
- The eyepiece tubes can be rotated 360° and can therefore be easily adjusted to the height of the observer
- The left tube has a dioptre adjustment ring, coarse and fine adjustment
- The coarse adjustment has a locking knob and a tension adjustment

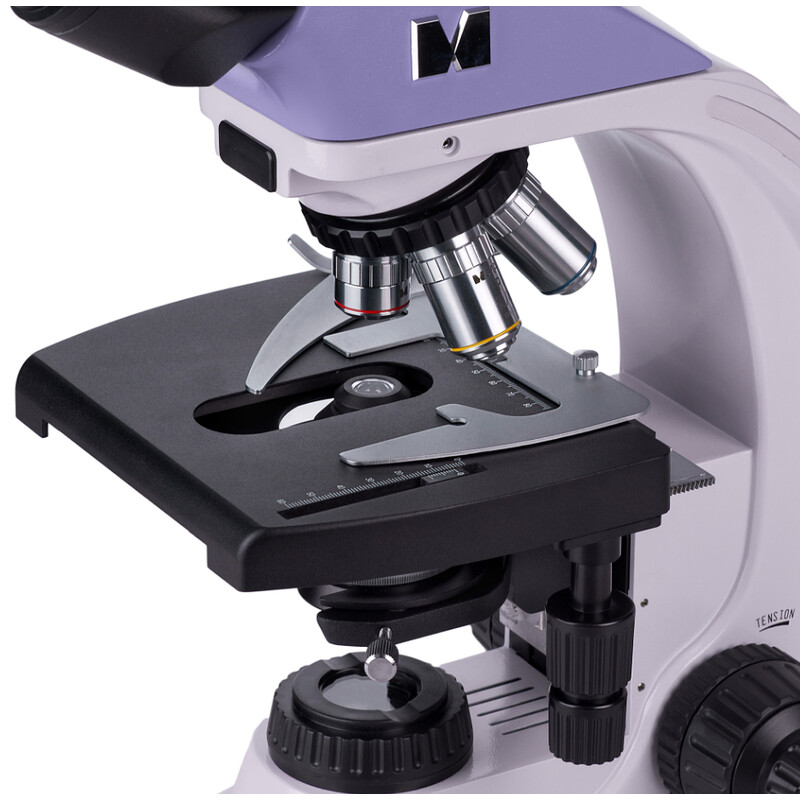

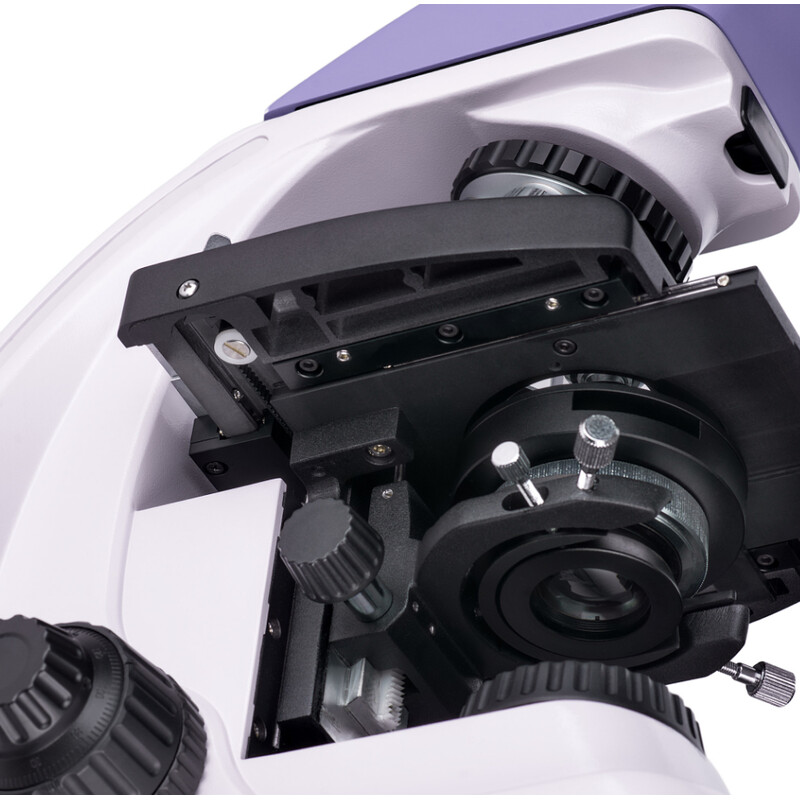

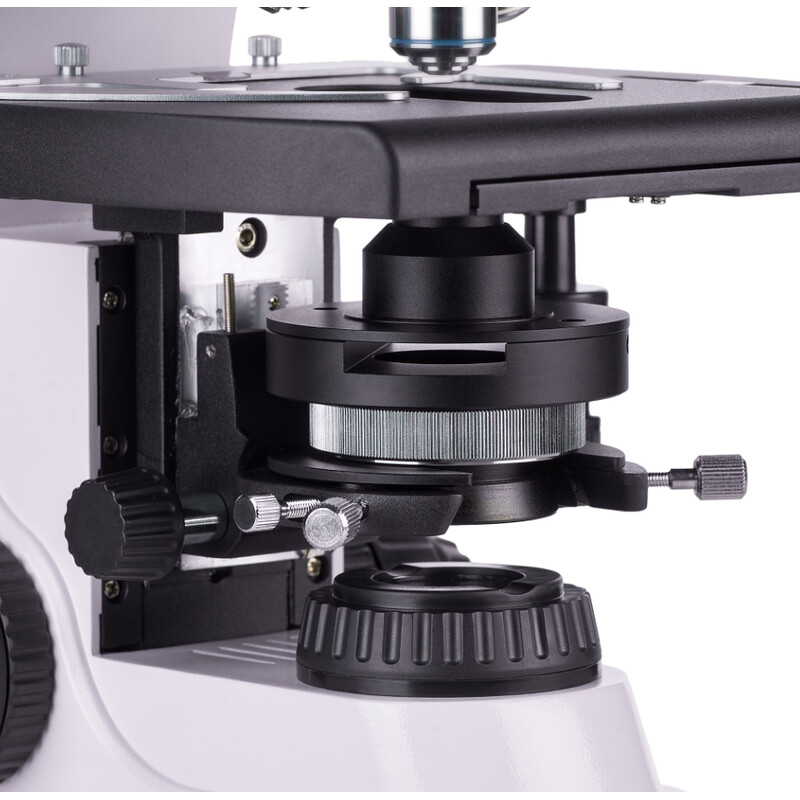

- The Abbe condenser is centred and height-adjustable, and the field and aperture diaphragms enable Köhler lighting to be set up
- Transmitted light source: 3-watt LED with adjustable brightness, powered by 220V power supply
- Option to install additional accessories
The camera:
- The camera works without connection to a PC or installation of software
- HDMI interface for high and stable data transfer rates
- The camera resolution is 1920x1080 px – an ideal choice for displaying images on a Full HD monitor
- 60 frames per second for the observation of moving samples, video recording and sample movement without jerkiness or delays
- The SONY Starvis colour CMOS sensor with backlighting offers low noise levels and high light sensitivity even in poor lighting conditions. You get clearer, brighter and more colour-saturated images
- Software with photo, video recording, editing, external display, length and angle measurements

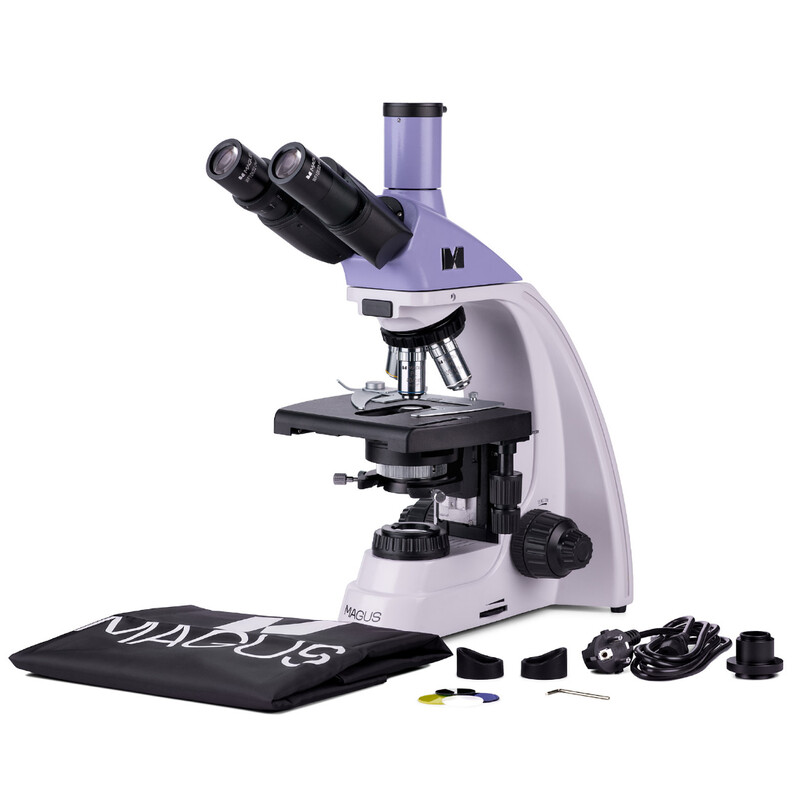

Scope of delivery:
- MAGUS CHD10 digital camera (digital camera, HDMI cable (1.5 m), USB mouse, 32 GB SD memory card, 12 V/1 A AC power adapter (Euro), user manual and warranty card)

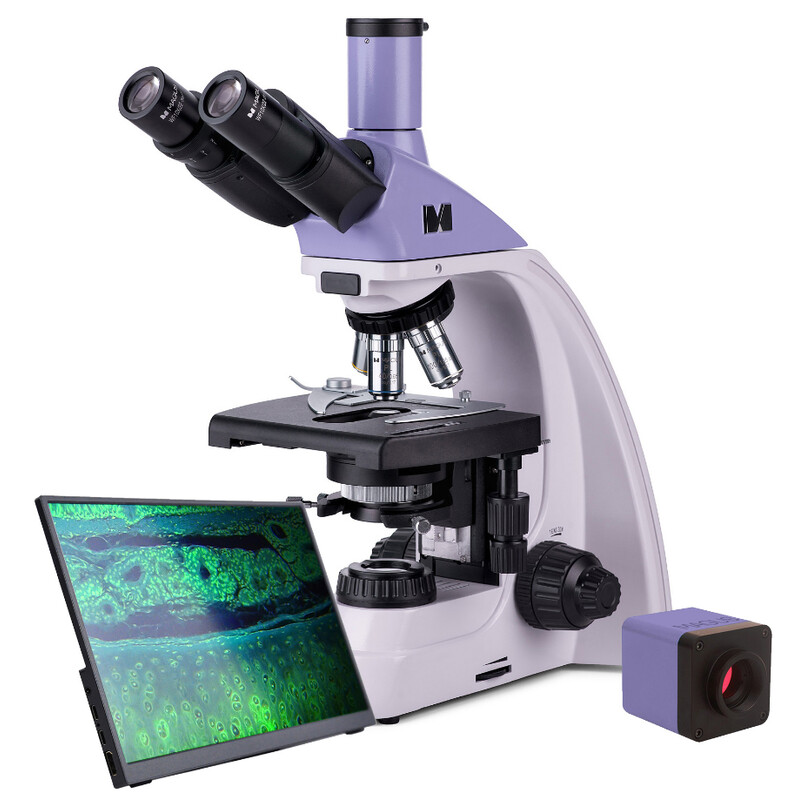

- MAGUS MCD20 LCD screen
- Base with power connection, transmitted light source, focusing mechanism, microscope stage, condenser holder and objective turret
- Abbe condenser
- Trinocular head

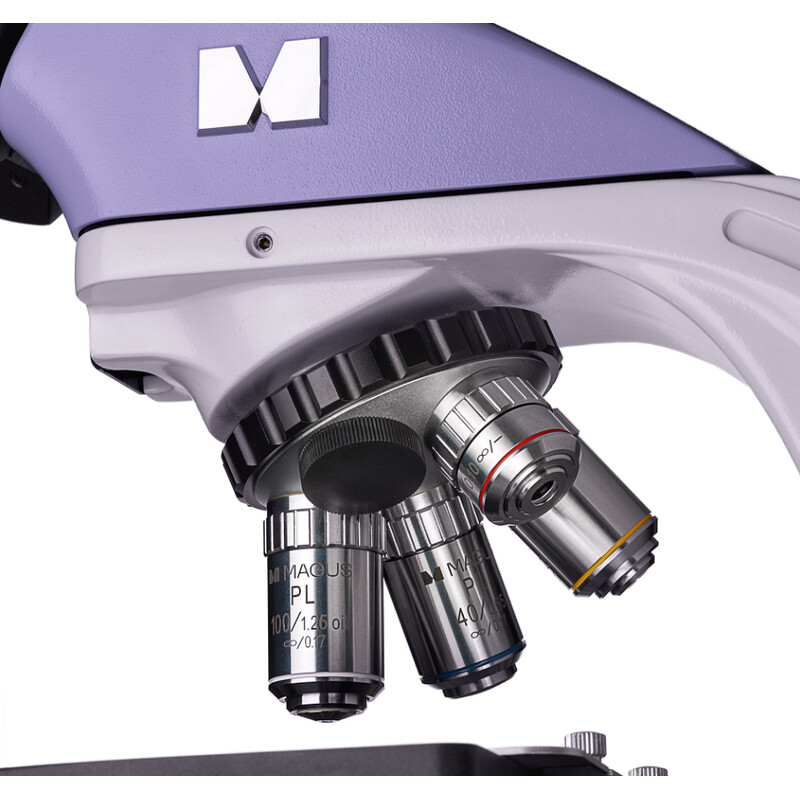

- Infinity-corrected plan achromatic lenses: 4x/0.10
- Infinity-corrected plan achromatic lenses: 10x/0.25
- Infinity-corrected plan achromatic lenses: 40x/0.65 (spring-loaded)
- Infinity-corrected plan achromatic objectives: 100x/1.25 oil (spring-loaded)
- Eyepiece 10x/22 mm with long eye relief (2 pcs.)
- Eyecups (2 pcs.)
- Filters (4 pcs.)
- Camera adapter C-mount
- Bottle of immersion oil
- AC power supply cable
- Dust cover
- Operating instructions and warranty card
