Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Motic > BA-210 > Motic Microscope BA210 bino, infinity, EC- plan, achromatic, 40x-1000x, LED
Product no.: 67730

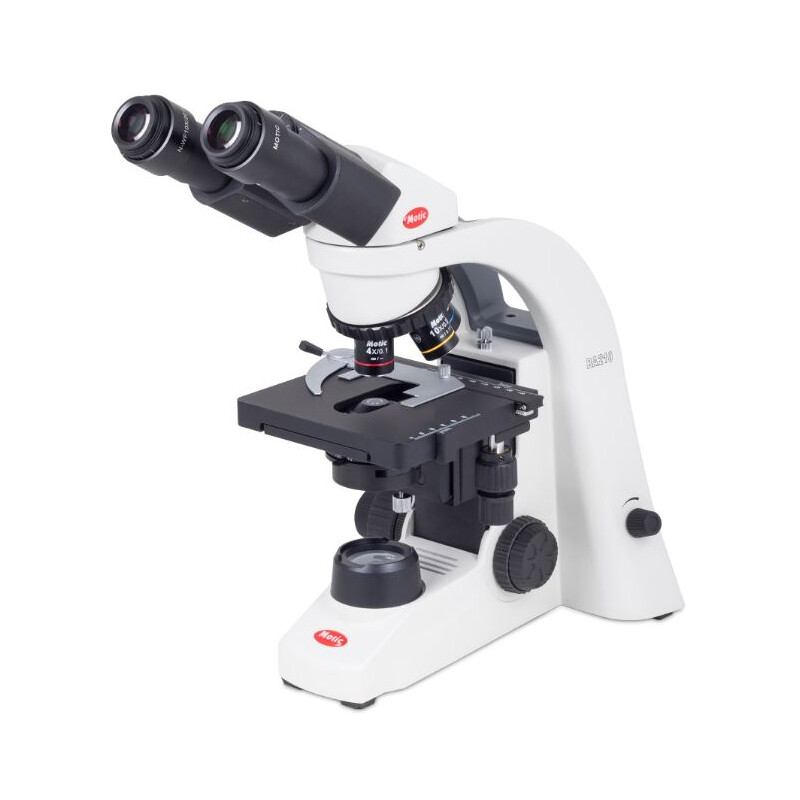

Microscope BA210 bino, infinity, EC- plan, achromatic, 40x-1000x, LED

$ 1,370.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series BA-210...

BA210 LED BINOCULAR

  • Observation tube Binocular head, Siedentopf type
  • Viewing angle 30° viewing angle, tube rotatable 360
  • Eye relief 48-75 mm
  • Diopter adjustment On both eyepieces +/- 5dpt
  • Eyepieces Wide field N-WF10X/20mm, with diopter adjustment
  • Objective turret 5x, rearward facing
  • Lensquality CCIS® EC Plan Achromatic, DIN
  • Lenses/magnification range

-4X/0.10 (AA 15.9 mm)

-10X/0.25 (AA 17.4 mm)

-40X/0.65/S (AA 0.5mm)

-100X/1.25/S-Oil (AA 0.15mm)

  • Objective thread W 4/5" x 1/36" (RMS)
  • Stand type Upright
  • Table Mechanical table with coaxial X/Y drive and 2x specimen holder
  • Table size 180x170mm
  • Travelrange X/Y 80x55mm
  • Condenser Focusable/centred Abbe condenser N.A. 0.90/1.25 with sliding slot
  • Iris diaphragm Iris diaphragm
  • Focus Coaxial coarse/fine drive, adjustability
  • Fine focusstep size 2 µm
  • Travelrange in Z 20 mm
  • Upper table stop Preset ex works, adjustable
  • Filter holder On the light outlet, with fixing ring
  • Transformer Internal
  • Mains voltage 100-240V (CE)
  • Accessories included
  1. dust cover
  2. Power
  3. Hexagon socket wrench
  4. Spare fuse
  5. Cable suspension
  6. Fixing screw
  • Dimensions LxWxH 400x220x400mm
  • Netweight 8.6 kg
  • Transmitted light LED 3W, adjustable

Specifications

Optics


Magnification
400
Eyepiece
10
Lens type
Plan, achromatic (EC-Plan)
Condensor
Abbe condenser (NA 1.25), with slider slot, centering and iris
Lighting
Transmitted light
Lamp type
LED (3W)
Optical system
infinity
Objective 1
4x/0.10 wd 15.9 mm
Objective 2
10X/0.25 AA 17.4 mm
Objective 3
40X/0.65/S AA 0.5 mm
Objective 4
100x/1.25 AA 0.15 mm

Capacity


Brightness control
yes
Power supply
100-240V, VDE plug (CE) mains adaptor
brightfield
yes

Mechanics


Type of build
binocular
Focusing
Coarse and fine movement
Viewing posture (°)
30° oblique viewing, 360° rotating head
Specimen stage
Cross table (150 x 150 mm, 80x30mm)
Revolver
4

Special features


Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes

General


Colour
grey/black
Weight (g)
7200
Length (mm)
360
Height (mm)
395
Width (mm)
220
Series
BA-210

Field of application


Medicine
yes
Education
yes

Area of application


Interference contrast
-
Metallurgy
-
Veterinary medicine
yes
University
yes
Technical training
yes

Miscellaneous


supplier product number
1100100403752

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
