More about the series BA-310...

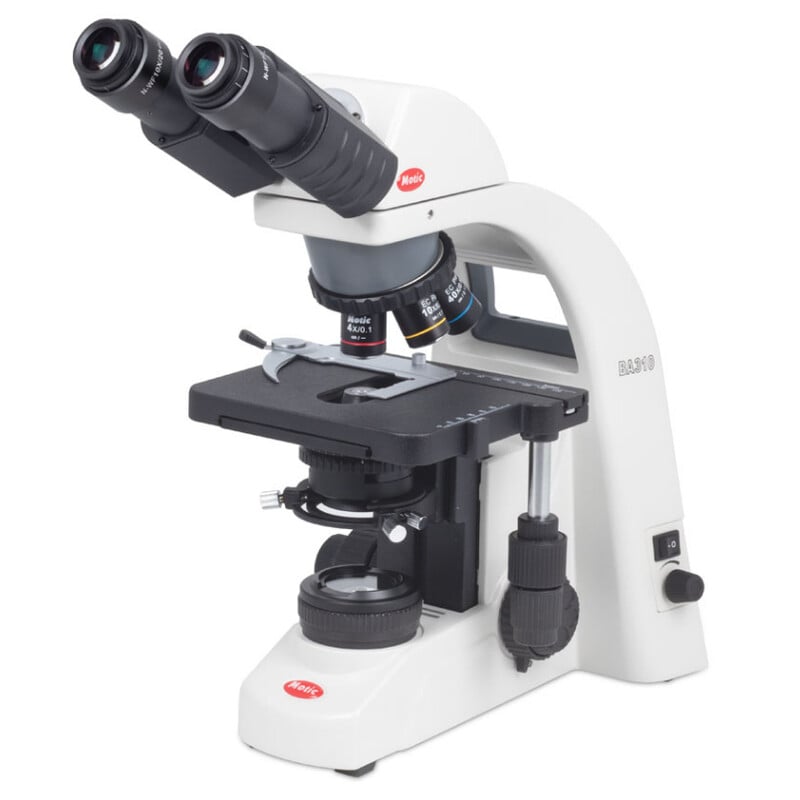

Ba310LED bino
- Optical system Colour Corrected Infinity Optical System (CCIS®)

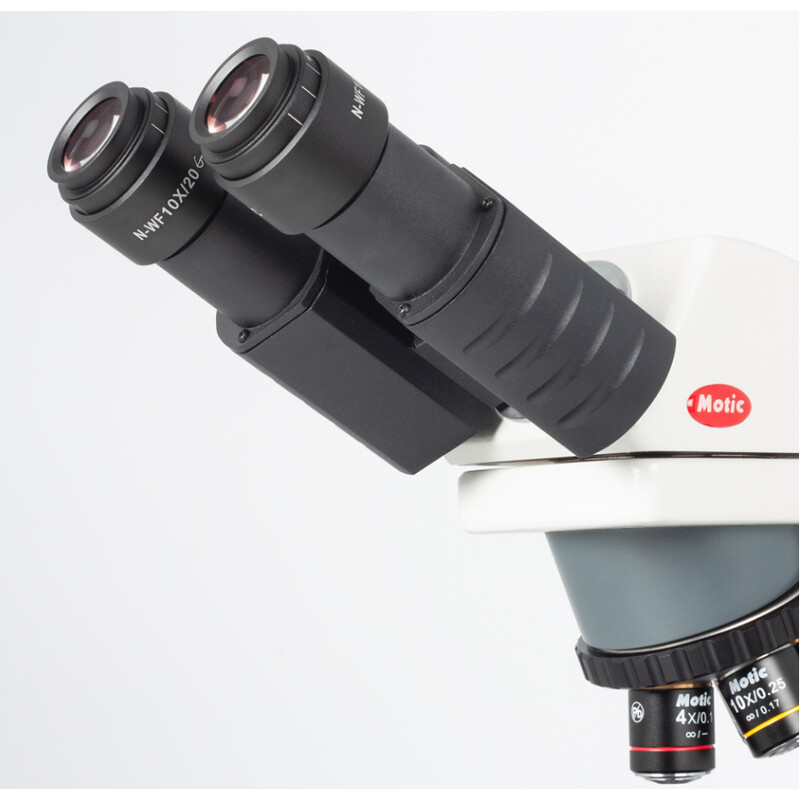

- Observation tube Binocular head, Siedentopf type, 360º swiveling
- Eye relief 48-75 mm adjustable
- Diopter adjustment On both eyepieces +/- 5dpt
- Eyepieces Wide field N-WF10X/20mm, with diopter adjustment
- Objective turret 5x, rearward facing
- Lens quality CCIS® EC Plan Achromatic, DIN
- Objectives/magnification range
-4X/0.10, AA 15.9mm
-10X/0.25, AA 17.4mm
-40X/0.65/S AA 0.5mm
- Lens thread W 4/5" x 1/36" (RMS)
- Stand type Upright

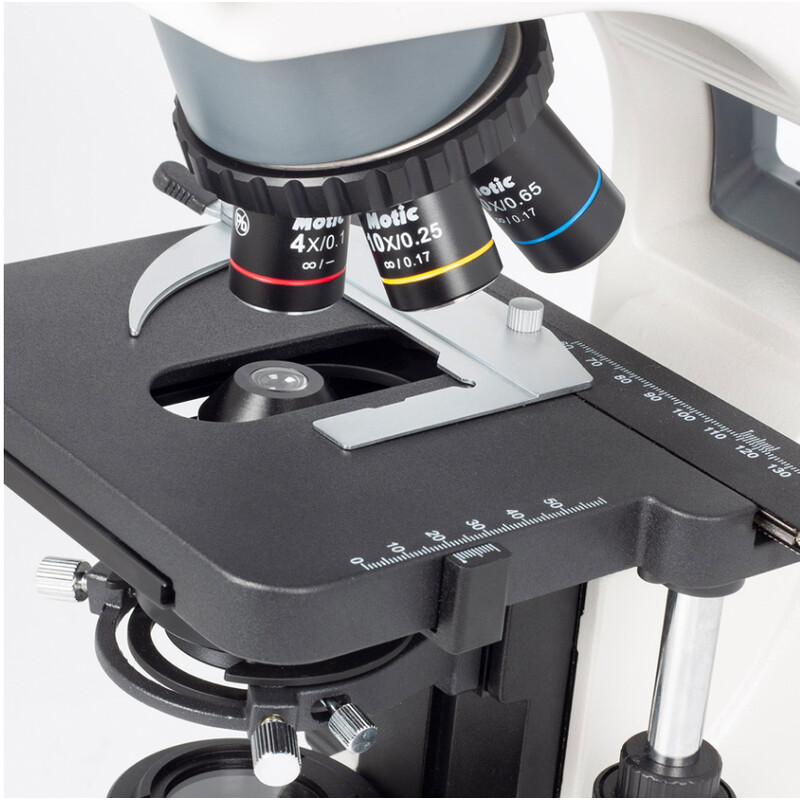

- Table Mechanical table with coaxial X/Y drive and 2-position specimen holder
- Table size 175x140mm
- Travelrange X/Y 76x50 mm
- Condenser Focusable/centring Abbe condenser N.A. 0.90/1.25 with sliding slot
- Iris diaphragm Iris diaphragm
- Focus Coaxial coarse/fine drive, adjustability
- Fine focusstep size 2 µm
- Travelrange in Z 20 mm
- Upper table stop Preset at factory, adjustable
- Filter holder On the light exit
- Transmitted light Köhler LED 3W, adjustable
- Transformer Internal
- Mains voltage 100 -240V (CE)
Scope of delivery
- dust cover
- Power
- Hexagon wrench
- Immersion oil (5 ml)
- Spare fuse
- Cable suspension
- Fixing screw
- Dimensions LxWxH 400x220x400mm
- Weight 8.6 kg
