Panthera C2 range
The Panthera C2 and its selection of specific optics, is your solution when working with coloured sections, native smears, fine needle biopsies, or blood smears, both with and without a protective cover slip. The new ultra contrast (UC) objectives, with additional glass elements, achieve a visual field of 22mm and work perfectly together with neutral eyepieces.
Thanks to CCIS© (Colour Corrected Infinity Optical System), a fully corrected, digitally accessible intermediate image is guaranteed. This produces the best results in terms of colour fidelity and contrast.
Powerful microscope hardware, illumination and handling.
Specification Panthera C2 Trinocular (1100104601141)
- Optical system: Motic CCIS® infinity optics
- Observation tubes: Trinocular Siedentopf type, 25° viewing angle, tube rotatable 360º
- Eye relief (mm): 48-75
- Beam split in trinocular tube: 50/50 fixed

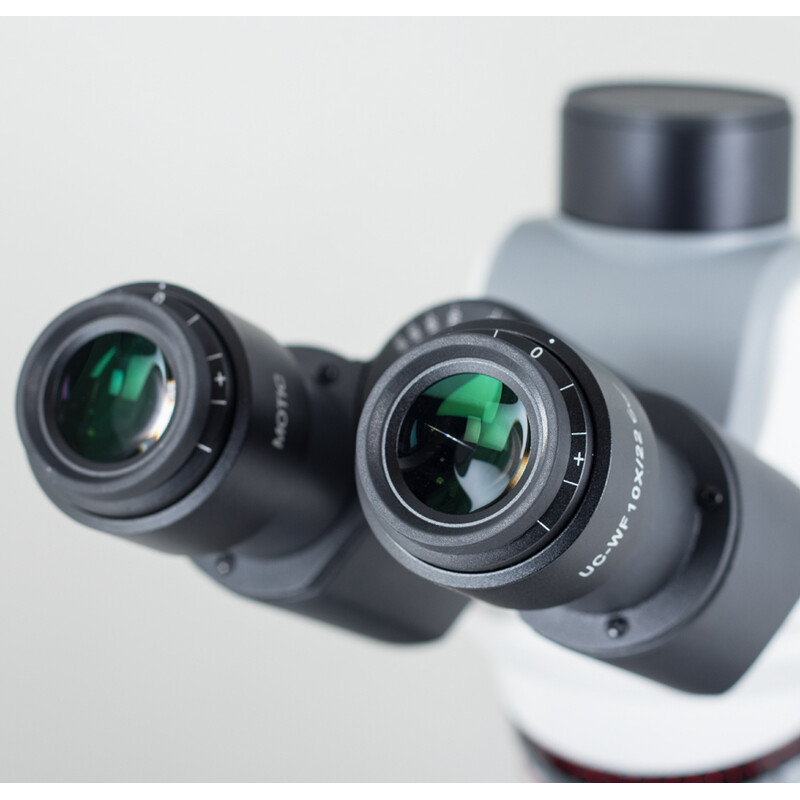

- Eyepieces: UC-WF10X/22
- Diopter adjustment on eyepieces: +/- 5 dpt
- Objective turret: 5-fold; rearward facing; coded

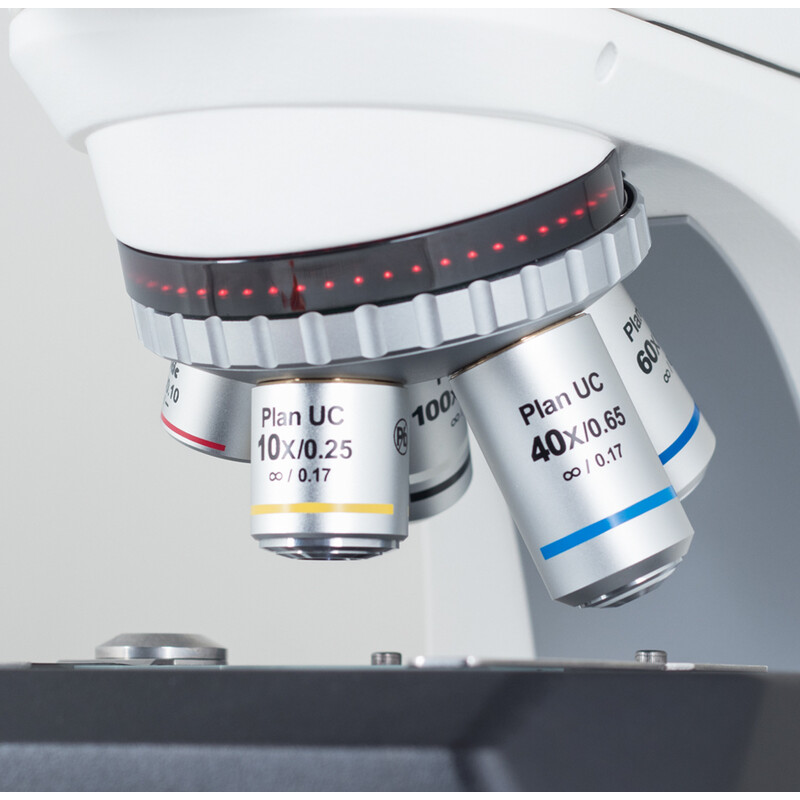

- Lenses: CCIS© Plan UC Achromatic (Pb-free) 4X/0.1 (AA 30.5 mm), 10X/0.25 (AA 17.4 mm), 40X/0.65/S (AA 0.6 mm), 100X/1.25/S-Oil (AA 0.16 mm)
- Objective thread: W 4/5" x 1/36" (RMS)

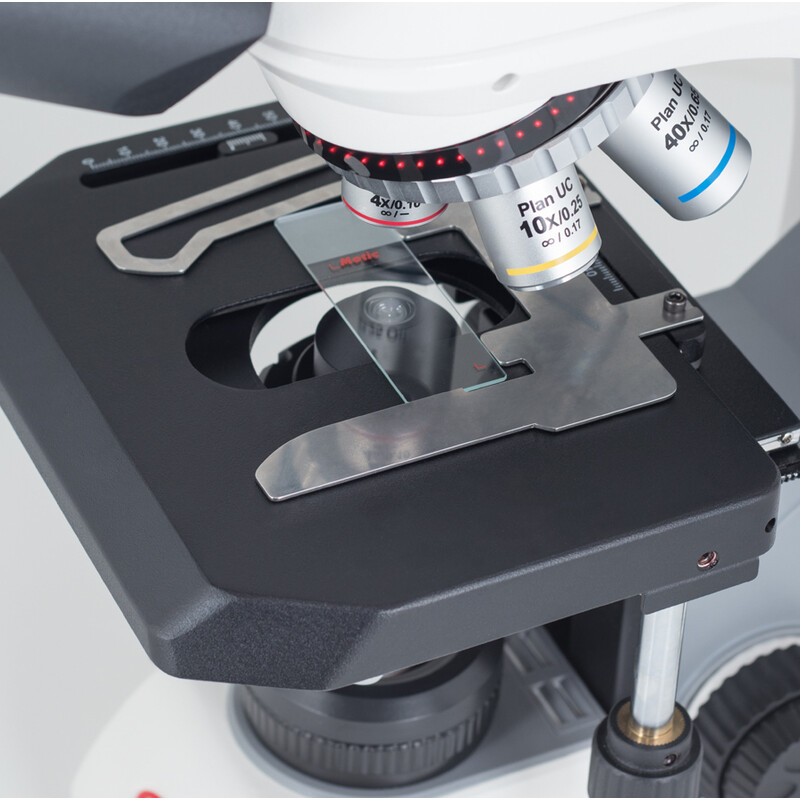

- Stage: Compact mechanical cross-shaped stage with built-in rack-free, coaxial stage control and specimen holder
- Table surface (mm): 185x145
- Travel range (mm): 75x50
- Upper table stop: Preset at factory; can be adjusted later

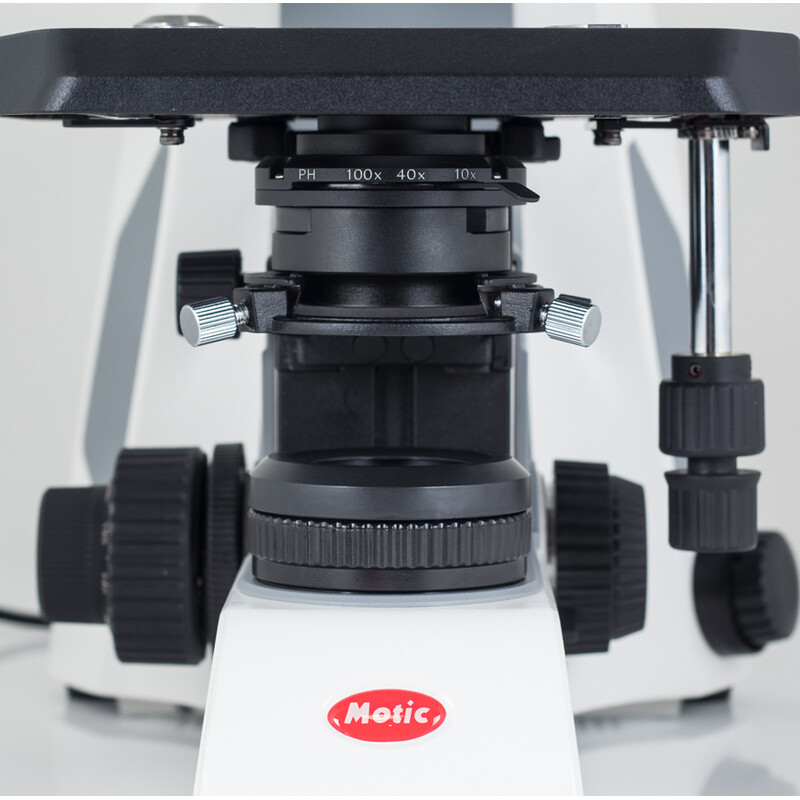

- Condenser: N.A. 0.90 / 1.25 Abbe condenser with iris diaphragm and slot for contrast slider
- Focus: coaxial coarse and fine adjustment
- Smallest step size of fine drive (µm): 2
- Table stroke in Z (mm): 25
- Filter holder: On light exit at tripod pad; with fixing ring
- Lighting: 30W halogen lamps and 3W LED module according to Köhler
- Interchangeable lighting: halogen/LED and interchangeable LED colour temperature
- Illumination function: Motic LightTracer: memory function, sleep mode (automatic switch-off), LED light intensity indicator on the objective turret

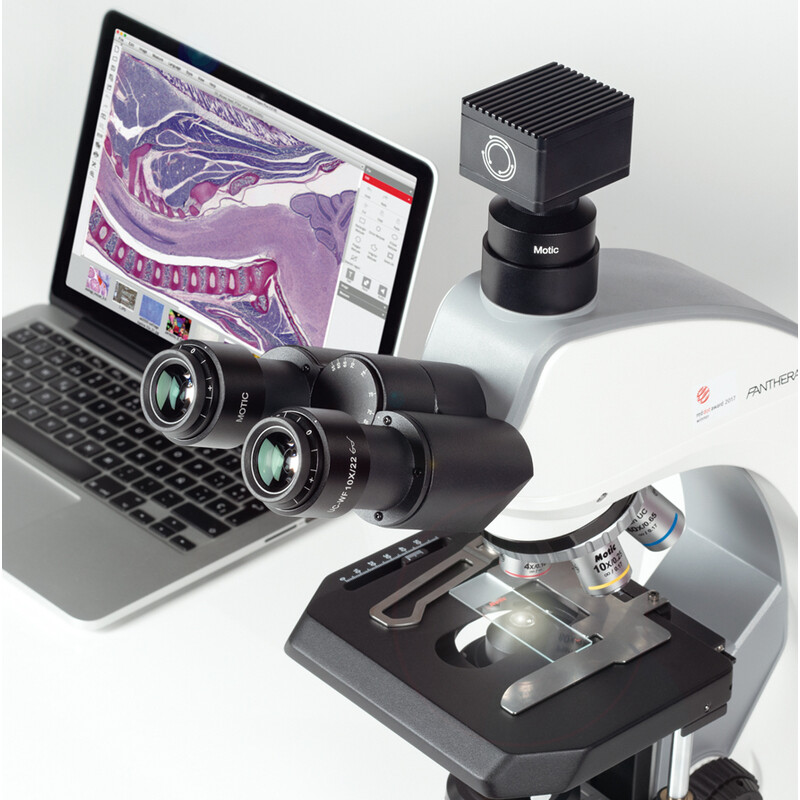

- Interfaces: USB 2.0 for external camera connection
- Mains voltage: 110-240V (CE)
- Dimensions LxWxH (mm): 282 x 210 x 396
- Weight kg: 8.4
- Brightfield: Yes
- Phase contrast: optional with slider and rotating condenser
- POL contrast: optional with add-on
- Simple dark field (up to NA 0.65): optional with slider and rotating condenser
- LED fluorescence: optional with intermediate LED module between tube and tripod
Scope of delivery: Dust cover, power cord, hexagon wrench, immersion oil (5 ml), blue filter, halogen lamps, LED module
