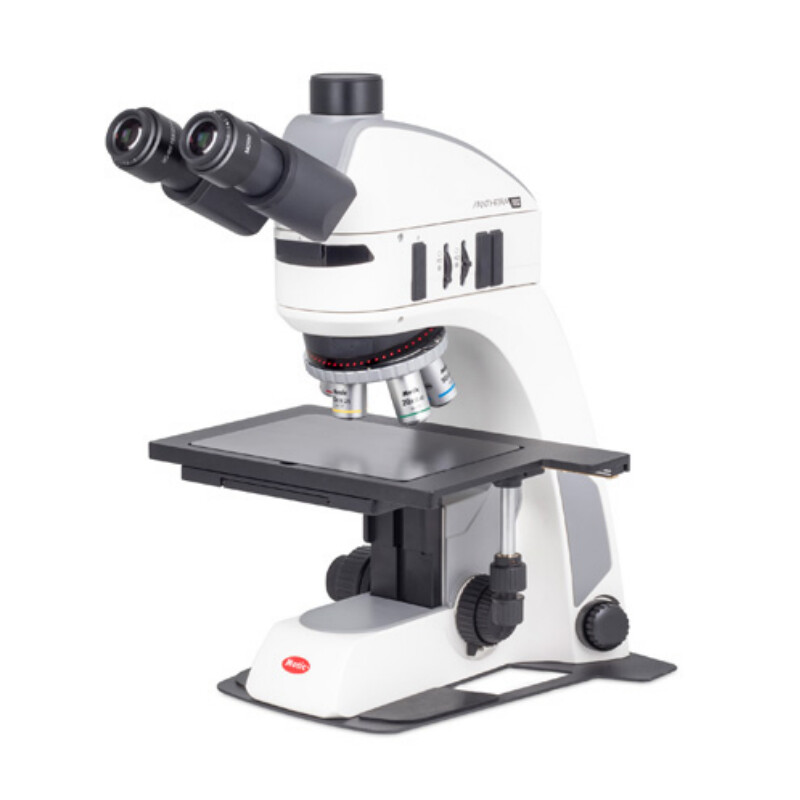

Motic Panthera Tec Mat BF
The Panthera TEC series of industrial microscopes is the missing link in the Panthera family: Incident light microscopes for material sciences, ready to handle semiconductors, LCD panels and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional transmitted light by integrated LED illumination can be chosen.
Specifications
- Trinocular tube, Siedentopf type, 25º viewing angle, tube rotatable 360° (beam split 50:50 fixed) Wide field eyepieces UC-WF10X/22mm with diopter adjustment on both eyepieces, incl. eyepiece cups
- Compact incident light illuminator for HF with 3W LED, with field and aperture diaphragm, with sliding slot for polariser and analyser
- 5-position objective turret, rearward facing, with Motic LightTracer (Intelligent Light Management)
- CCIS® Plan Achromat lenses LD PL 5X, 10X, 20X
- Plan S-Apochromat objective PL S-APO 50X
- Coaxial coarse and fine drive, coarse drive adjustable
- 6"x4" stage with travel range 150x10mm, area 300x180mm
- LED transmitted light condenser with collector and automatic aperture setting; transmitted light dark field
- "Motic LightTracer" system: illumination memory, auto ON/OFF
- LED display for brightness and ON/OFF
- USB port for camera power supply
- Power pack 100V-240V, VDE plug (CE)
- Power cord, hexagonal key, dust cover, fixing screws for lateral stabilisation
- Note: The 3"x2" cross table with 180x140mm surface area and 75x50mm travel range is available on request.
