Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Motic > Panthera TEC MAT > Motic Microscope Panthera TEC MAT BF trino; infinity, plan, 50x-500x, 10x/22mm; Al, LED, 3W
Product no.: 79920

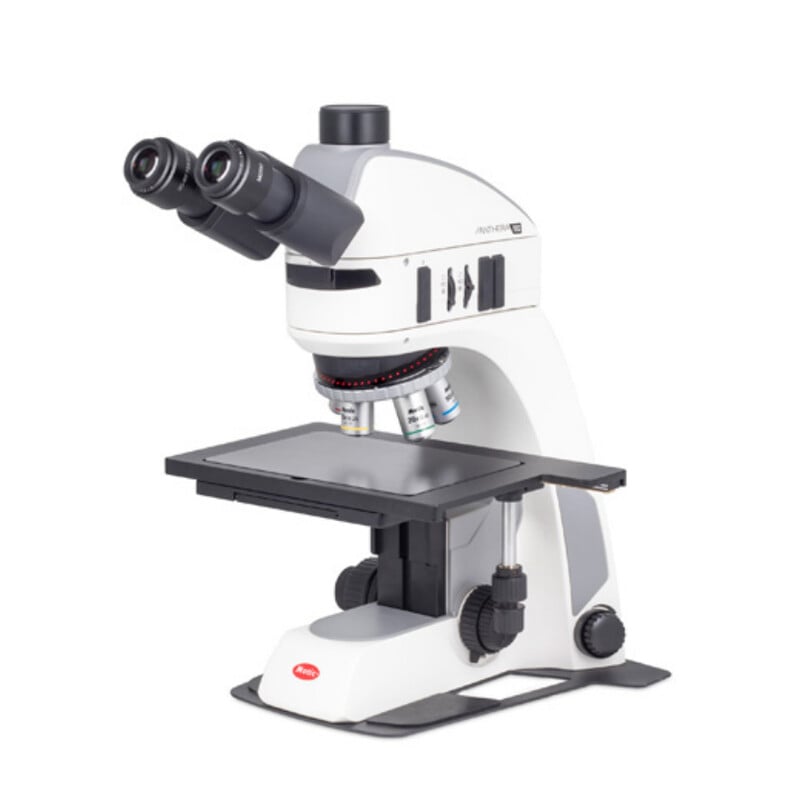

Microscope Panthera TEC MAT BF trino; infinity, plan, 50x-500x, 10x/22mm; Al, LED, 3W

$ 5,800.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series Panthera TEC MAT...

Motic Panthera Tec Mat BF

The Panthera TEC series of industrial microscopes is the missing link in the Panthera family: Incident light microscopes for material sciences, ready to handle semiconductors, LCD panels and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional transmitted light by integrated LED illumination can be chosen.

Specifications

  • Trinocular tube, Siedentopf type, 25º viewing angle, tube rotatable 360° (beam split 50:50 fixed)
  • Wide field eyepieces UC-WF10X/22mm with diopter adjustment on both eyepieces, incl. eyepiece cups
  • Compact incident light illuminator for HF with 3W LED, with field and aperture diaphragm, with sliding slot for polariser and analyser
  • 5-position objective turret, rearward facing, with Motic LightTracer (Intelligent Light Management)
  • CCIS® Plan Achromat lenses LD PL 5X, 10X, 20X
  • Plan S-Apochromat objective PL S-APO 50X
  • Coaxial coarse and fine drive, coarse drive adjustable
  • 6"x4" stage with travel range 150x10mm, area 300x180mm
  • "Motic LightTracer" system: illumination memory, auto ON/OFF,
  • LED display for brightness and ON/OFF
  • USB port for camera power supply
  • Power pack 100V-240V, VDE plug (CE)
  • Power cord, hexagonal key, dust cover, fixing screws for lateral stabilisation
  • Note: The 3"x2" cross table with 180x140mm surface area and 75x50mm travel range is available on request.

Specifications

Optics


Magnification
50-500x
Eyepiece
10/22mm (UC-WF 10x/22mm)
Lens type
Plan, achromatic (CCIS)
Condensor
nein
Lighting
Incident light
Lamp type
LED
Optical system
infinity
Objective 1
Plan Achromat LD 5X/0.13 (WD 20.3mm)
Objective 2
Plan Achromat LD 10X/0.25 (WD 17.5mm)
Objective 3
Plan Achromat LD 20X/0.40 (WD 8.1mm)
Objective 4
Plan S-APO 50X/0.80 (WD 1mm)

Capacity


Power supply
100-240V, VDE plug (CE) mains adaptor
brightfield
yes

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement
Specimen stage
Cross table
Revolver
5

Special features


Dust cover bag
yes

General


Weight (g)
10000
Length (mm)
282
Height (mm)
450
Width (mm)
210
Series
Panthera TEC MAT

Field of application


Medicine
yes
Industry
yes

Area of application


Interference contrast
-
Metallurgy
-
Veterinary medicine
yes
University
yes
Odontotechnics
yes
Materials Science
yes

Miscellaneous


supplier product number
1100104600191

Downloads

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
