Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Optika > B-190PL > Optika Microscope B-192sPL, bino, DIN, N-plan, 40-600x X-LED
Product no.: 71095

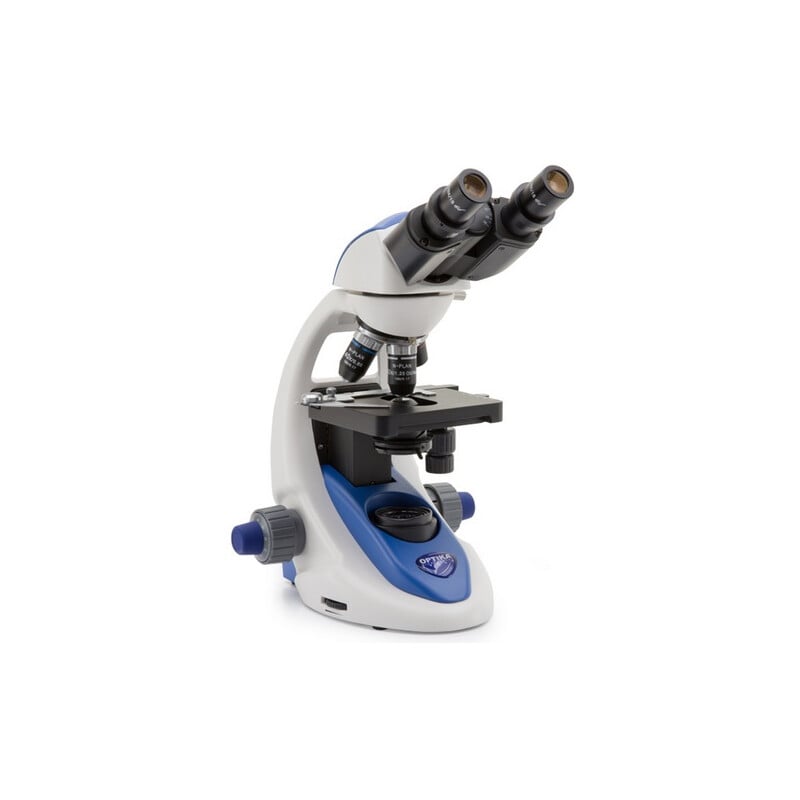

Microscope B-192sPL, bino, DIN, N-plan, 40-600x X-LED

RRP: $ 660.00 Our price:
$ 600.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series B-190PL...

Specification

Head: Monocular 30° inclined; 360° rotating.

Dioptric adjustment: Left eyepiece.

Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:- N-PLAN objective 4x/0.10

- N-PLAN objective 10x/0.25

- N-PLAN objective 40x/0.65

- N-PLAN objective 100x/1.25 (Oil/Water)

All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED² with white 3 W LED and brightness control.

Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply

B-192sPL

Binocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (600x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. Slim and easy to carry, yet sturdy and resistant, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use

Head: Monocular 30° inclined; 360° rotating.

Dioptric adjustment: Left eyepiece.

Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:- N-PLAN objective 4x/0.10

- N-PLAN objective 10x/0.25

- N-PLAN objective 40x/0.65

- N-PLAN objective 60x/0.85

All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED² with white 3 W LED and brightness control.

Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply

Specifications

Optics


Image scale
600
Number of objectives
4
Lighting
Transmitted light
Field curvature
Plan
Colour correction
achromatic
Lamp type
LED
Objective 1
N-PLAN 4x/0.10
Objective 2
N-PLAN 10x/0.25
Objective 3
N-PLAN 40x/0.65
Objective 4
N-PLAN 60x/0.85
Optical system
DIN (160mm)
infinity corrected
no
Magnification
1000

Capacity


Transmitted light
ja
brightfield
yes
Lamp type
LED
Field of view value
18
Magnification
600

Mechanics


Type of build
binocular
Viewing posture (°)
30
Specimen stage
Cross table
Revolver
4

General


Series
B-190PL

Contrast methods


brightfield
yes

Field of application


Education
yes

Area of application


school
yes

Miscellaneous


supplier product number
B-192sPL
