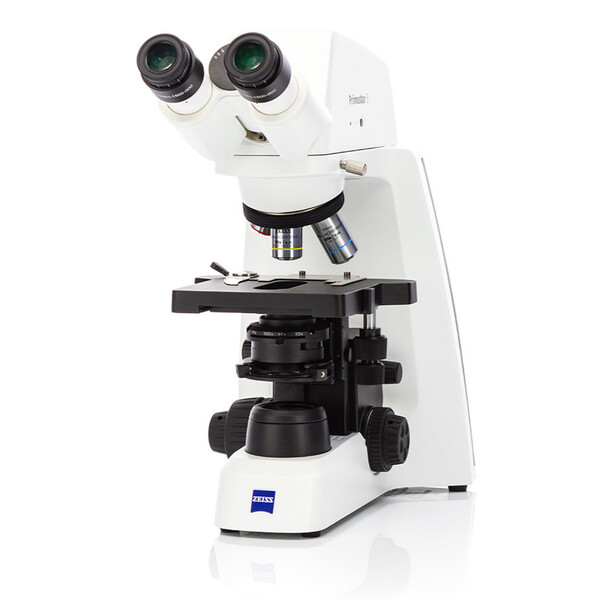

Complete configuration with tripod, camera and fixed Köhler (415501-0071-000)
- Transmitted light illumination LED 1W white light, 5700K
- Objective turret 4-fold, tilted backwards
- Cross table 75x40, drive on the right and object holder for one slide with spring lever on the left
- Binocular tube 25°/22 with integrated 8MP camera
- Eyepieces 10x/20 Br. foc. with eyepiece cups, 1x with pointer
- iPlan achromatic lenses 4x, 10x, 40x
- Abbe condenser 0.9/1.25 with slot
- 5V USB connection
- power pack
- dust cover
Ready-to-use package. Tailored perfectly to your application. The fixed-Köhler version of Primostar 3 comes pre-adjusted with a large 20 mm FOV (field of view) - just plug and play.A useful selection of objective lenses and eyepieces is already in place.Additional plus: manage costs and energy with long-lasting LED illumination.
Specification Primostar 3
- binocular tube 25°
- objectives i-Plan-Achromat 4x, 10x, 40x
- mechanical rackless stage 75x40, driveright and specimen holder for one slide with spring clip left -
- Abbe condenser 0.9/1.25
- Transmitted-light illumination LED 3W 5700K
- external power unit 100...240VAC/50...60Hz/30VA with country-specific adapters
- dust cover
Camera specification
- Sensor type: Sony CMOS colour sensor with rolling shutter
- Number of pixels: 3840 (H) x 2160 (V) = 8.3MP, Ultra HD (4K)
- Selectable resolutions:
- 3840 x 2160 = Ultra HD (4K) and
- 1920 x 1080 = Full HD (1080p) Pixel size: 1.85 µm x 1.85 µm (Ultra HD resolution)
- Sensor size: 7.1 mm x 4.0 mm, equivalent to 1/2.1'' (diagonal 8.15 mm)
- Spectral range: approx. 400 nm - 700 nm, IR filter
- Stand-alone: Image storage format: tiff or jpg Video stream format: mp4 Live
- Frame rates via HDMI: 30 fps @ 4K/1080p (also with HDR)
- Live frame rates via software via Ethernet or USB3.0 (depending on hardware and software configuration),
- Exposure time 1 ms: H x V frame rate
- 3840 x 2160 up to 15 fps (ZEN blue edition)
- 1920 x 1080 up to 27 fps (ZEN blue edition)
- 1920 x 1080 up to 30 fps (Labscope)
- Digitisation: 8 bits/Pixel
- Exposure time: 0.06 msec to 1 sec

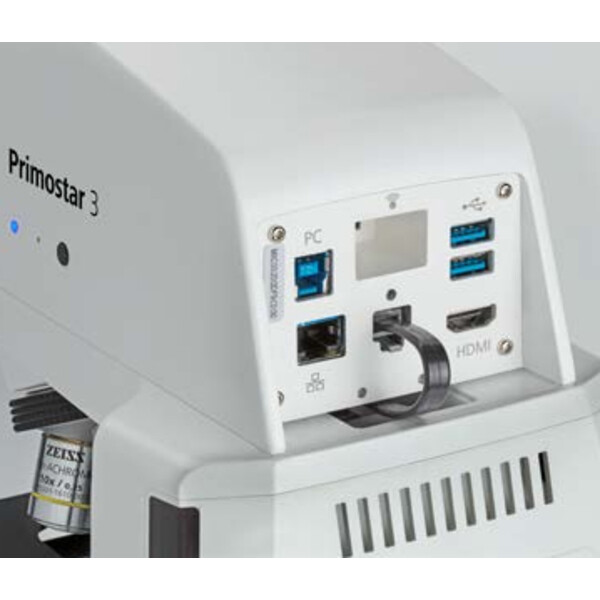

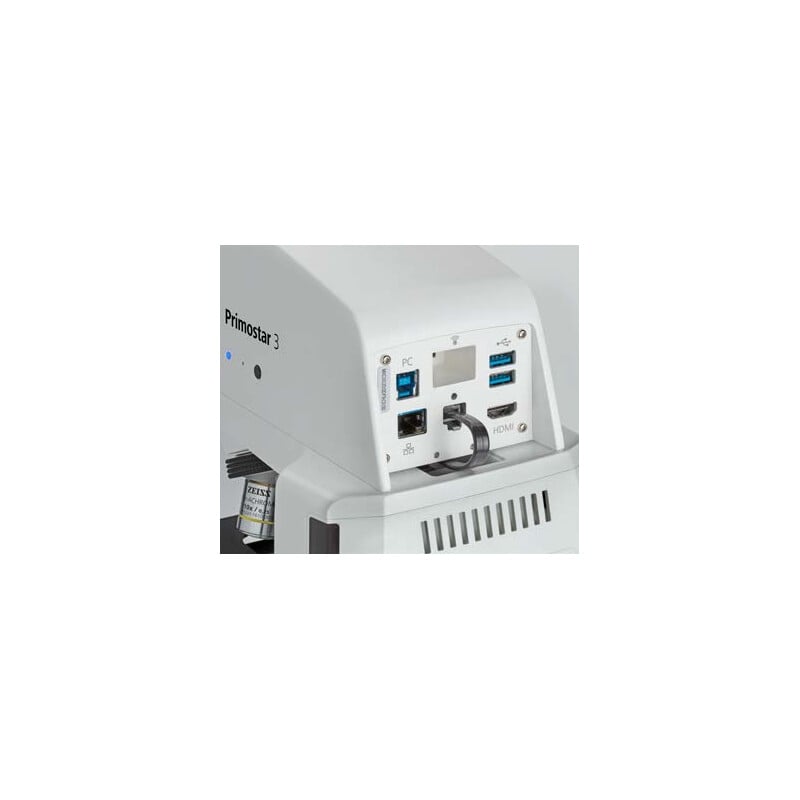

- Interfaces: HDMI for monitor USB 3.0 for USB hub, memory stick, Wi-Fi adaptor or PC connection Ethernet (RJ45) for LAN connection
- Optical interface: integrated adaptor
- Max. file size per image:
- .tiff up to: 24 MB (not dependent on image content)
- .jpg up to: 0.5 MB - 3.3 MB (depending on image content)
- Passive cooling via cooling fins made of aluminium on the cover plate
- Ambient conditions: +10° ... +40° Celsius, max. 75% relative humidity, non-condensing, free air circulation required
- Supported operating systems: for ZEN: Windows 10 x64 Prof./Ultimate and higher for Labscope: Windows 7/10 x64 Prof./Ultimate and iOS v11 and higher
- Supported application software:
- ZEN blue v3.0 and higher (includes ZEN lite/pro/system)
- ZEN core v2.7 and higher (includes ZEN starter/core)
- Labscope v2.9 (Win) v2.8.3 (iOS) and higher
- TWAIN Plugin: Additional program for controlling the camera via third-party application software
- The camera is network-compatible and can be used with the ZEISS iOS app and Labscope. The app is available as a free download from the Apple App Store. Unless otherwise specified by the distributor, iPad and WLAN routers are not available from ZEISS.
