Astronomy > Filters > Nebulae filters > Broadband Filters > Astronomik > CLS CCD > Astronomik Filters 2" CLS CCD filter
Product no.: 16748

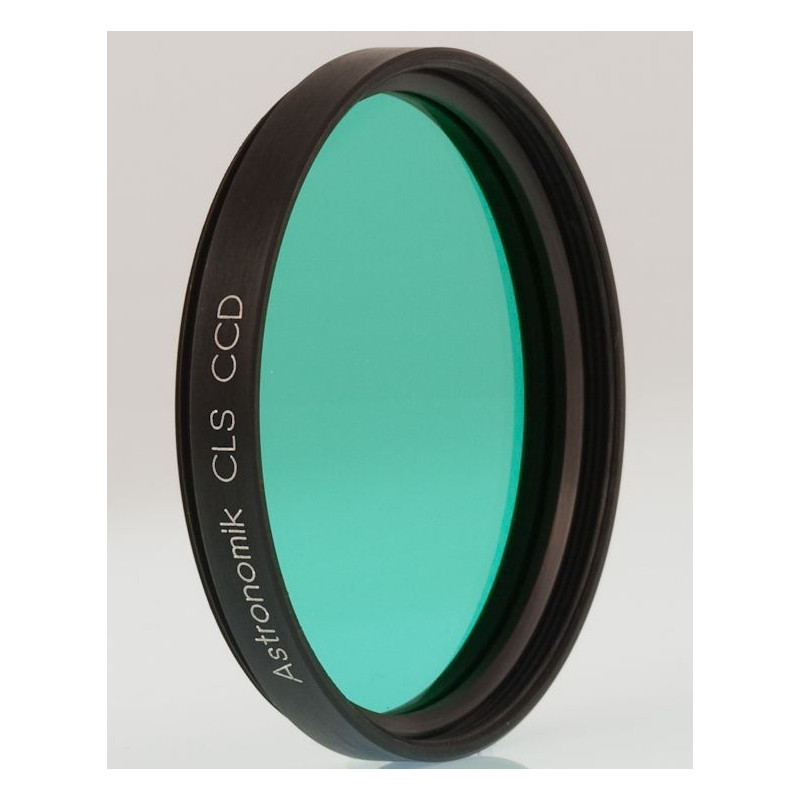

Filters 2" CLS CCD filter

$ 262.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

This filter is suitable for photography from areas with artificial light pollution using cameras that are also sensitive to infrared. It enhances the contrast of all deep sky objects. If your camera already has an IR filter, you can also use the slightly cheaper CLS filters (without the "CCD" suffix) from Astronomik.

The CLS CCD filter increases the contrast between astronomical objects and the sky background. Due to the wide transmission range, a large amount of light can pass through the filter, so stars are only slightly attenuated. This filter is optimised to block as much stray light as possible and allow as much light from the objects to pass through. The filter is ideal for use on telescopes of all apertures with aperture ratios from 1:2 to 1:15.

How it works

The filter completely blocks the emission lines of low- and high-pressure lamps (mercury (Hg) and sodium (Na)) and the lines of airglow. All important emission lines of astronomical objects and the spectral range in which the eye has maximum sensitivity at night are transmitted. The integrated IR blocking layer allows use with digital cameras and webcams without their own IR filter.

Tips and further usage information

As an EOS clip filter, photography with DSLR cameras is possible even in extreme light pollution without damaging the colour balance. As a 1.25" and 2" version, it is also suitable for visual observation from light-polluted areas.

Alternatives

If an IR filter is already available for electronic photography, the less expensive CLS filter is a good option.

Suitability of the filter

  • Visual observation (country): Good, with light pollution from mercury vapour lamps
  • Visual observation (city): Neutral, a UHC-E or UHC filter is more suitable
  • Conventional film: Very good, white balance is very good
  • CCD astrophotography: Very good, optimal suppression of light pollution
  • DSLR astrophotography (unmodified): Very good, colour shift but improved contrast
  • DSLR astrophotography (astromodified): Very good, white balance is very good
  • DSLR astrophotography (modified with MC clear glass): Very good, white balance is very good
  • Webcam / video (Planets): Not suitable
  • Webcam / video (deep sky): Very good if light pollution is a major problem


Technical data for the filter

  • 95% transmission at 486 nm (H-beta)
  • 95% transmission at 496 nm (OIII)
  • 95% transmission at 501 nm (OIII)
  • 97% transmission at 656 nm (H alpha)
  • 1. Passband 450 nm to 520 nm
  • 2. Passing range 640 nm to 690 nm
  • Homofocal with all other Astronomik filters
  • Not sensitive to moisture, non-ageing, scratch-resistant
  • Fine-optical polished carrier material
  • The filter is supplied in durable packaging

Specifications

Capacity


Connection (to the telescope)
2"
Coating of optical system
multiple
Mount material
Aluminium
Frame
2"

General


Series
CLS CCD
Type
Filters
Type of build
Broadband Filters

Area of application


Visually useful
no
Useful for photographs
yes
Anti light-pollution
yes

Product safety

Manufacturer: astro-shop, Eiffestr. 426, 20537 Hamburg, DE, www.astro-shop.com
Astronomik Filters 2" CLS CCD filter

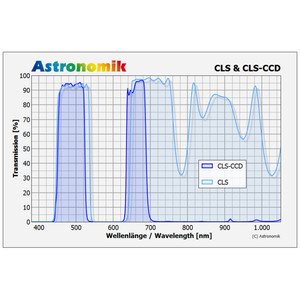

Light transmission curve
