Microscopy > Microscopy accessories > Cameras > Cameras > Bresser > MikroCam II > Bresser Camera MikroCamII 5MP HIS, colour, CMOS, 2/3'', 3.45 µm, USB3
Product no.: 75538

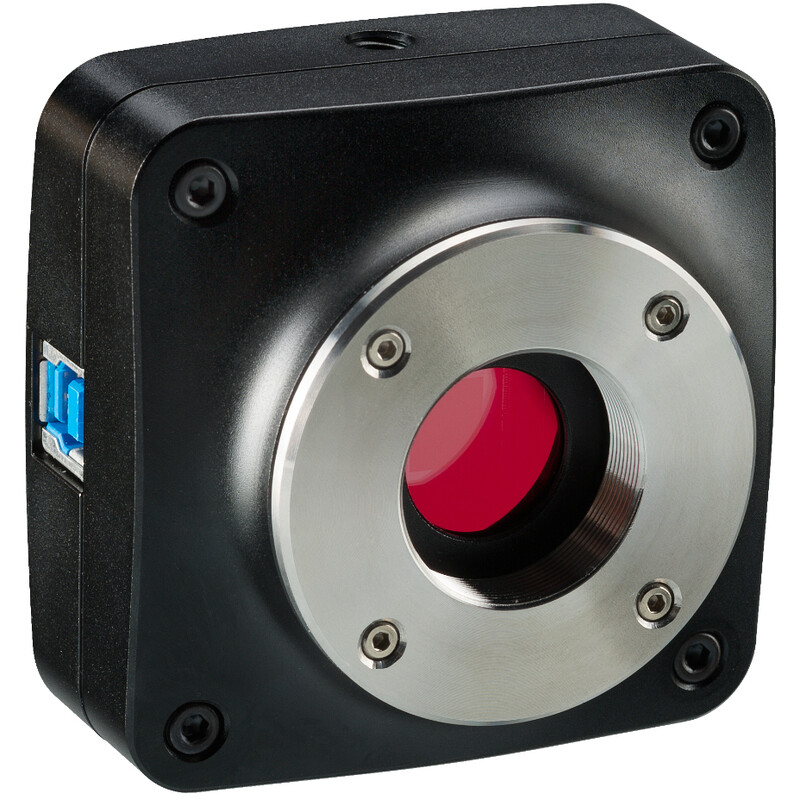

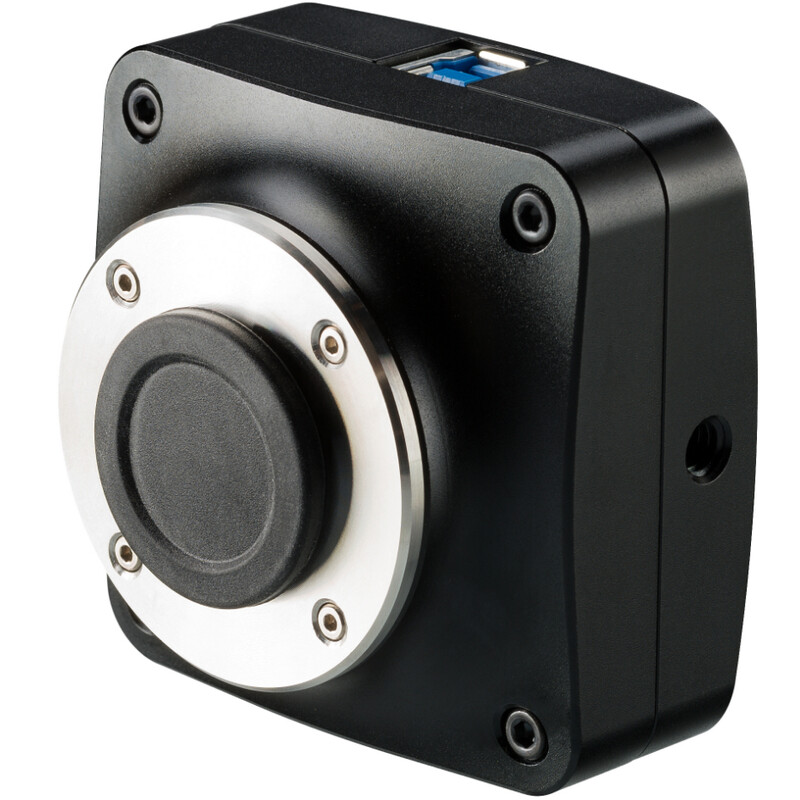

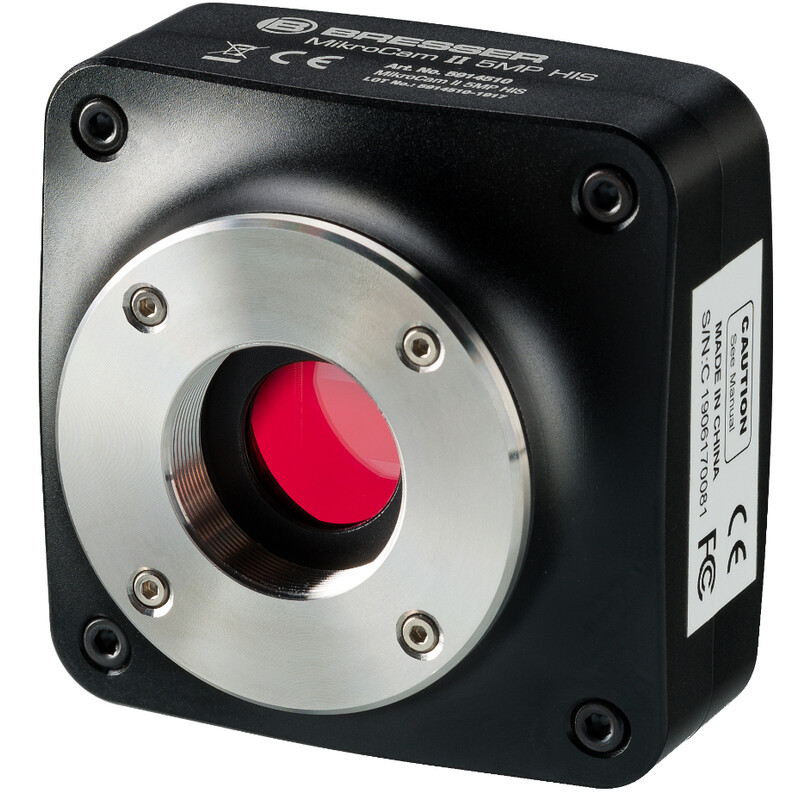

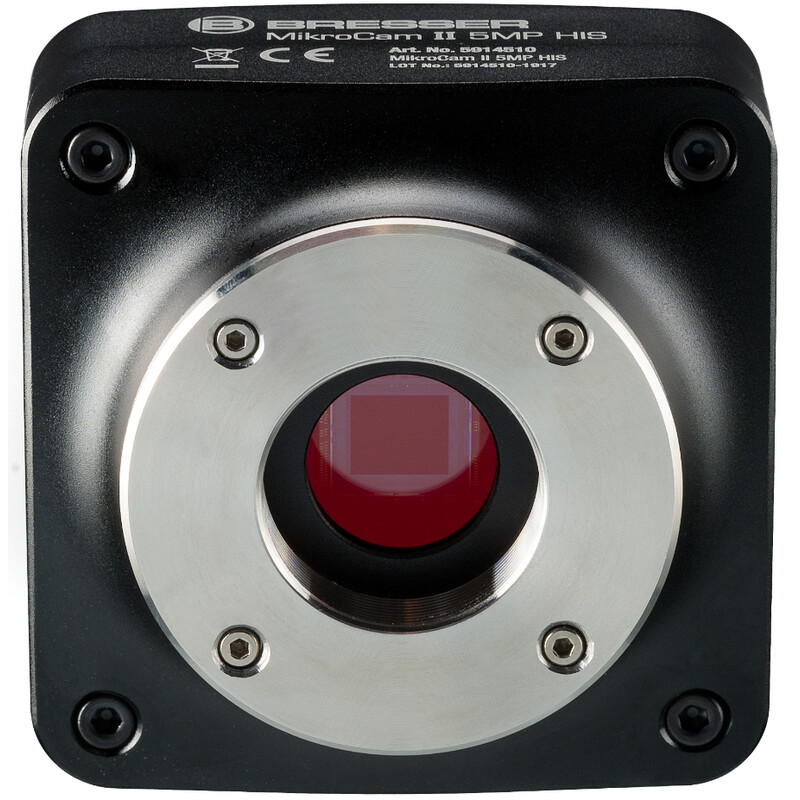

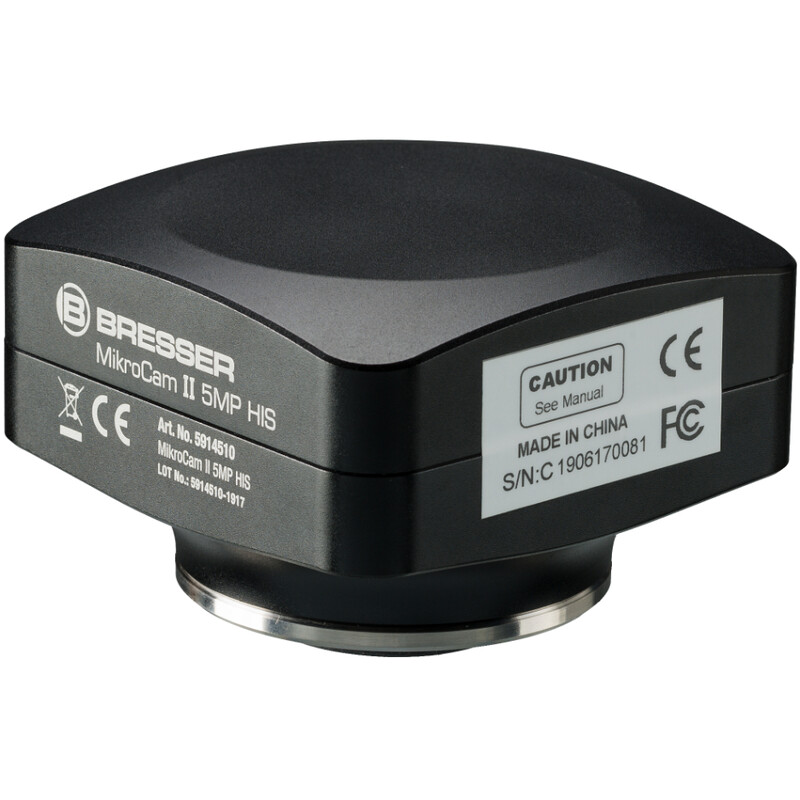

Camera MikroCamII 5MP HIS, colour, CMOS, 2/3'', 3.45 µm, USB3

$ 1,320.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

The BRESSER MikroCamII 5MP HIS with the highly light-sensitive and low-noise Sony(R) IMX264 sensor is ideal for use in difficult lighting conditions. The camera works with a global shutter. This prevents distortion of moving objects. If there is sufficient light, even fast movements can be practically frozen thanks to the extremely short exposure time of up to 1/50,000 second.

The MikroCam Lab II software offers a variety of different functions, such as measurement in the live image (calibration sample required), mosaic image creation, focus stacking (for increased depth of field). Furthermore, almost all automatic functions (exposure time, sensitivity, white balance, etc.) can also be set manually.

The mosaic and focus stacking (EDF) functions can be generated directly from the live image. This can save a lot of time.
Even if you are not a professional, you will achieve quick results. A cross table is required to use the mosaic function optimally.

Due to the large sensor, the camera is not ideally suited for every microscope. Edge shading (vignetting) may occur in some cases. In most cases, this shading can be prevented by using a 0.75x lens (item no. 5914007), which is screwed into the camera.

This camera is not designed for the trinocular tube of the ETD-201. With this microscope, only part of the image field can be used.

FEATURES

  • Modern Sony(R) IMX264 sensor 8.45 mm x 7.07 mm (2/3'')
  • 5 MP (2448x2048)
  • Global shutter for distortion-free movements
  • Many software functions, such as measurement, focus stacking (for superimposing multiple images to increase depth of field), mosaic (for displaying larger image fields)
  • Image and video recording, including time-lapse function
  • High-quality metal housing
  • 1/4'' tripod thread, e.g. for a photo tripod
  • Good compatibility with various microscopes
  • C-mount thread: for easy adaptability, also suitable for C-mount lenses
  • High-speed USB 3.0 connection

SYSTEM REQUIREMENTS

  • Windows 8.1, 10 or 11
  • Intel i3, i5, i7 or i9 processor from 6th generation or higher
  • AMD Ryzen processor
  • Optical drive or internet connection for software download
  • USB 3.0, 3.1

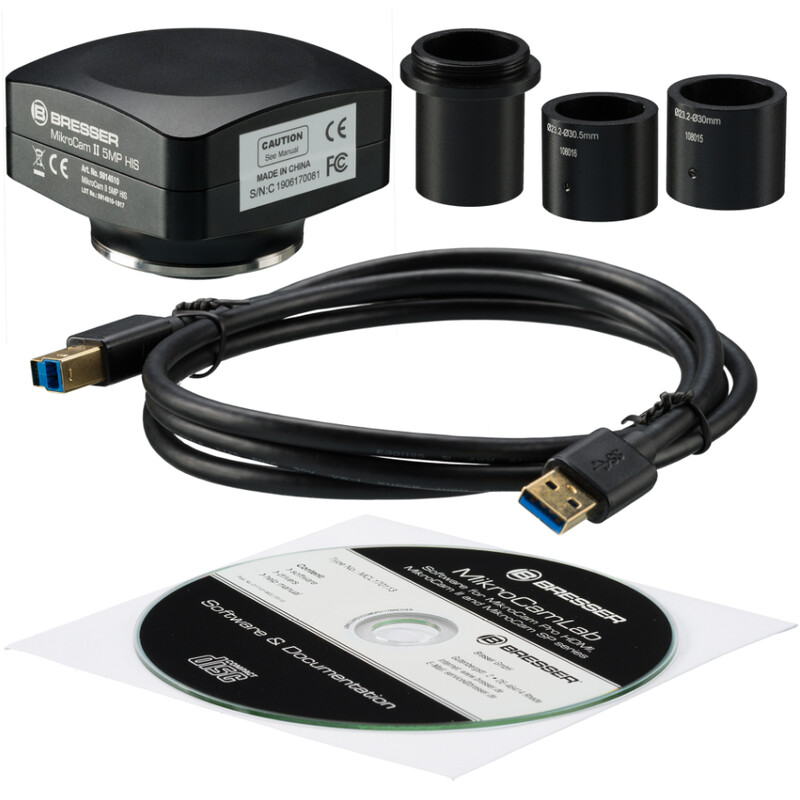

SCOPE OF DELIVERY

  • Camera head
  • USB 3.0 cable
  • 23.2 mm adaptors, 30 mm and 30.5 mm
  • Recording and image editing software (for Windows)

Specifications

Capacity


Size of chip (mm)
8,45 x 7,07
Megapixel
5.0
Image format
BMP, JPG und RAW
Resolution Photograph (Pixel)
2448x2048
Internal memory (Megabyte)
-
Video format
AVI
Max. length of video
unendlich
TV output
-
Interface
USB 3.0
Power supply
USB 3.0
Video function
yes

Camera


Peltier cooling
no
Colour camera
yes
Image transmission
USB 3.0
sensor
CMOS
Pixel size
3,45
Software
MikroCamLab II
Shutter
Rolling Shutter
adapter required
0.75x
Supported operating systems
Win 8.1/10/11

General


Colour
black
Weight (g)
300
Length (mm)
68
Width (mm)
68
Height (mm)
46
Series
MikroCam II

Miscellaneous


supplier product number
5914510

Product safety

Manufacturer: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, www.bresser.de
