Microscopy > Microscopy accessories > Cameras > Cameras > Euromex > EduPad > Euromex Camera EduPad-2, color, CMOS, 1/2.9", 2MP, USB 2, Tablet 8"
Product no.: 65764

Camera EduPad-2, color, CMOS, 1/2.9", 2MP, USB 2, Tablet 8"

$ 1,110.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series EduPad...

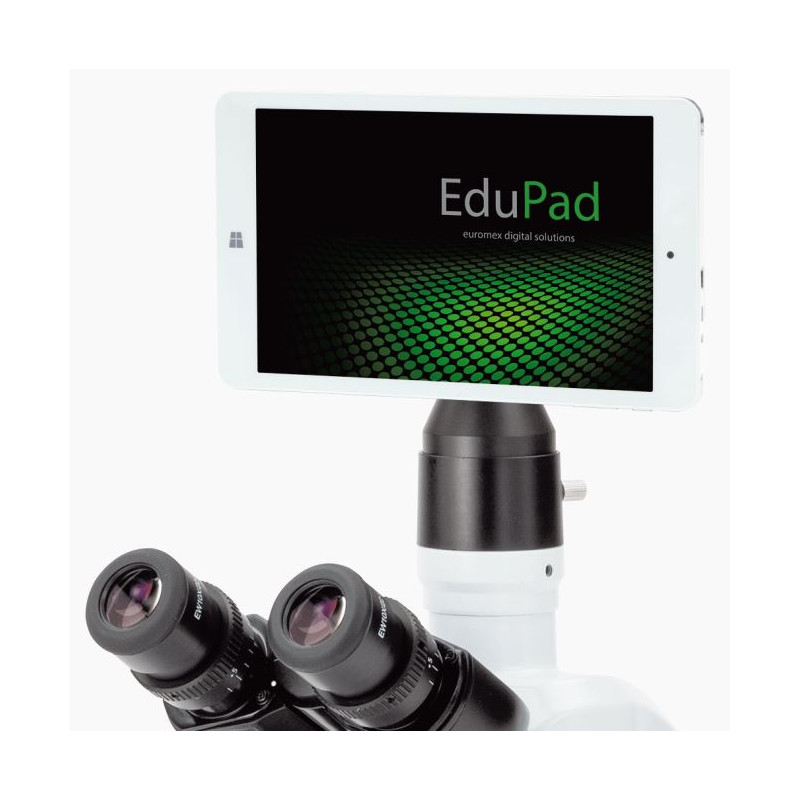

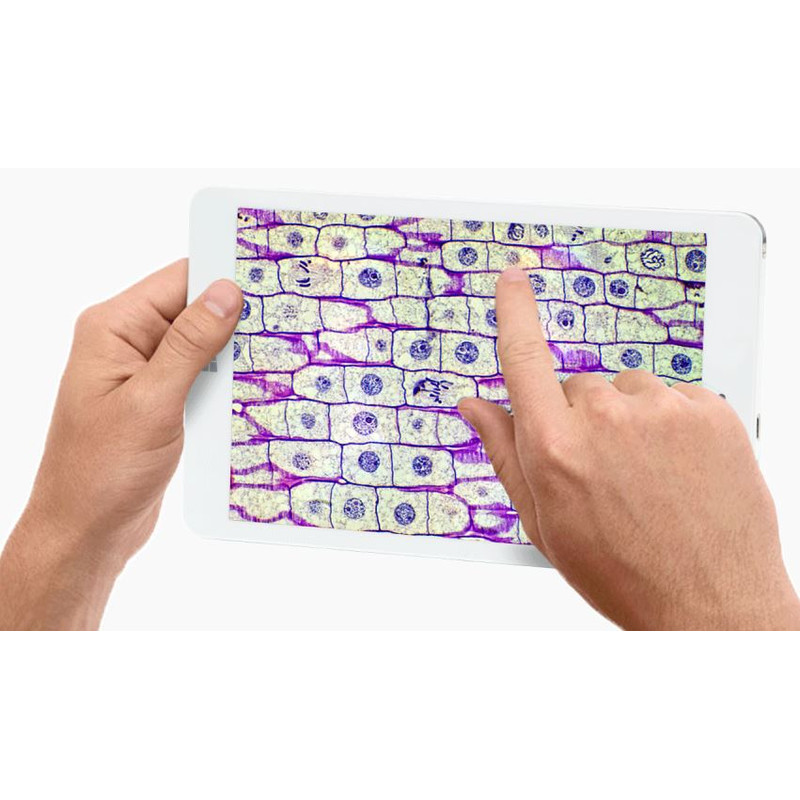

EduPad tablet 8" with microscope camera

The EduPad tablet with an 8" display is available with a 1.3 MP, 3.2 MP, 5 MP or even a WiFi camera. Together with the ImageFocus 4 or ImageFocus Alpha software, it offers a complete solution for modern microscopy in education, industry and laboratories.

  • 8" tablet with microscope camera
  • 1280 x 800 Pixel touchscreen
  • Full Windows 8.1, 32-bit system
  • ImageFocus 4 software for PC
  • ImageFocus Alpha for WiFi-enabled PCs and Android instruments
  • Tablet can be completely separated from the camera
  • 1.3 MP, 3.2 MP, 5.0 MP or WiFi camera

Specifications

PROCESSOR: Quad Core 1.33 GHz with HD graphics processor

SCREEN: 1280 x 800 pixels (WGXA) touchscreen, LED backlight

WORKING MEMORY: 1 GB DDR RAM, 2 MB cache

HARD DRIVE: 32 GB internal SDD, micro SD up to 32 GB

WEBCAM: 2MP , 1600 x 1200 pixels front camera and rear camera resolution

Interfaces: Micro USB 2.0, Wi-Fi 802.11 b/g/n and Bluetooth 4.0

AUDIO: Stereo system with 3.5 mm audio jack and internal microphone

BATTERY: Lithium , 4420 mAh, 17 Wh

HOUSING: Aluminium, white, 214 x 128 x 9.8 mm

WEIGHT: 370 grams

COMPATIBLE WITH Windows Windows 7, 8 and 10, both 32 and 64 bit configuration

SOFTWARE

The EduPad comes with ImageFocus 4 software, which is compatible with all of the above USB 2 cameras. In addition to live preview, the software captures images in jpeg, tiff or bmp formats or video recordings in avi format. The software has a wide range of functions and measurements for stored and live images. Brightness, contrast and saturation of the displayed images can be adjusted. Camera parameters for exposure time, white balance and colour control are easily accessible.

Specifications

Capacity


Size of chip (mm)
1/2.9”
Megapixel
2.1
Resolution Photograph (Pixel)
1920 x 1080
Resolution video (Pixel)
1920 x 1080
Internal memory (Megabyte)
-
Extendable storage
32 GB intern, SDD, Micro SD 64GB
TV output
yes
Interface
HDMI-Exit
Video function
yes
LCD screen
8", 1280 x 800 P

Camera


Megapixel
2.1
Peltier cooling
no
Colour camera
yes
Pixel size
2,8
Image transmission
Tablet
sensor
CMOS
Size of chip (″)
1/2.9
Resolution Photograph (Pixel)
1920x1080
Sensitivity (mV/s)
0.51 V/lux sec
Supported operating systems
Win 10
Shutter
Rolling Shutter

General


Length (mm)
21
Width (mm)
12
Height (mm)
9
Weight (g)
400
Series
EduPad

Miscellaneous


supplier product number
EP.2000f

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
