Microscopy > Microscopy accessories > Cameras > Cameras > Euromex > EduPad > Euromex Camera EduPad-5, 5MP, USB2, 8 inch Tablet
Product no.: 60726

Camera EduPad-5, 5MP, USB2, 8 inch Tablet

$ 1,250.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series EduPad...

Euromex CMEX_5, 5MP, 1/2.5" CMOS, USB 2.0

CMEX-5 digital 5 Mpix USB-2 CMOS camera DC.5000c

The Euromex CMEX-5 digital 5 Mpix USB-2 CMOS camera and ImageFocus 4 analysing software are the perfect solution for modern digital microscopy for teaching, basic industrial and live sciences applications and for demanding amateurs. Suitable for biological and metallurgical microscopes as well as for stereomicroscopes

  • Sensor: 1/2.5" CMOS
  • Pixels: 5 megapixels
  • Output: High resolution 2592 ×1944 pixels format
  • Pixel Size: 2.2 µm × 2.2 µm
  • Frame Rate: @ 2592 x 1944 pixels up to 5 f/s depending camera settings and illumination, @ 1280 x 960 pixels up to 21 f/s depending camera settings and illumination, @ 1024 x 768 pixels up to 25 f/s depending camera settings and illumination, @ 640 x 480 pixels up to 38 f/s depending camera settings and illumination
  • Color filter: RGB
  • Mount: C/CS-mount
  • ADC: 10 bits
  • Color depth: 24 bits
  • Signal/Noise ratio: 42 db
  • Dynamic range: 65 db
  • Sensitivity: > 1.3 V/lux @ 550 nm
  • Exposure: Automatic or manual from 1 ms to 800 ms
  • Interface: High Speed USB 2.0 (480 Mb/s)

Non-compressing real-time image data. High sensitivity camera features, suitable Bright Field, Dark Field, Phase Contrast, Epi-illumination. Very convenient to use, fits a standard 23.2 mm trinocular tube or eyepiece tube. Supplied with USB 2.0 cable

To be used with Euromex ImageFocus 4 software, which can be freely downloaded. The software works solely with CMEX-1, CMEX-3, CMEX-5, CMEX-10, CMEX Pro 3, CMEX Pro 5, sCMEX-1, sCMEX-3 and Euromex cooled CCD color camera captured images

Delivered with 0,5 x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereomicroscopy, 76 x 24 mm calibration 1mm/100 slide, CDROM with ImageFocus 4 software, carton box

Compatible with Microsoft Windows XP, Windows Vista, Windows 7 and Windows 8, 32- and 64 bits

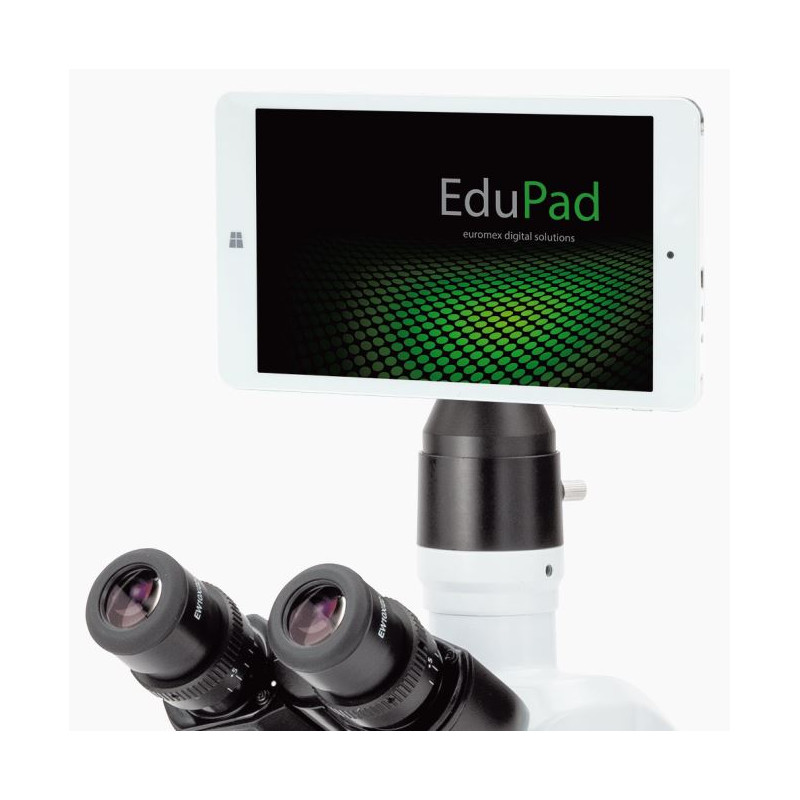

EduPad tablet 8" with microscope camera

The EduPad tablet with an 8" display is available with a 1.3 MP, 3.2 MP, 5 MP or even a WiFi camera. Together with the ImageFocus 4 or ImageFocus Alpha software, it offers a complete solution for modern microscopy in education, industry and laboratories.

  • 8" tablet with microscope camera
  • 1280 x 800 Pixel touchscreen
  • Full Windows 8.1, 32-bit system
  • ImageFocus 4 software for PC
  • ImageFocus Alpha for WiFi-enabled PCs and Android instruments
  • Tablet can be completely separated from the camera
  • 1.3 MP, 3.2 MP, 5.0 MP or WiFi camera

Specifications

PROCESSOR: Quad Core 1.33 GHz with HD graphics processor

SCREEN: 1280 x 800 pixels (WGXA) touchscreen, LED backlight

WORKING MEMORY: 1 GB DDR RAM, 2 MB cache

HARD DRIVE: 32 GB internal SDD, micro SD up to 32 GB

WEBCAM: 2MP , 1600 x 1200 pixels front camera and rear camera resolution

Interfaces: Micro USB 2.0, Wi-Fi 802.11 b/g/n and Bluetooth 4.0

AUDIO: Stereo system with 3.5 mm audio jack and internal microphone

BATTERY: Lithium , 4420 mAh, 17 Wh

HOUSING: Aluminium, white, 214 x 128 x 9.8 mm

WEIGHT: 370 grams

COMPATIBLE WITH Windows Windows 7, 8 and 10, both 32 and 64 bit configuration

SOFTWARE

The EduPad comes with ImageFocus 4 software, which is compatible with all of the above USB 2 cameras. In addition to live preview, the software captures images in jpeg, tiff or bmp formats or video recordings in avi format. The software has a wide range of functions and measurements for stored and live images. Brightness, contrast and saturation of the displayed images can be adjusted. Camera parameters for exposure time, white balance and colour control are easily accessible.

Specifications

Capacity


Megapixel
5.0

Camera


Resolution Photograph (Pixel)
2592 x 1920
Pixel size
2,2
Megapixel
5
Peltier cooling
no
Colour camera
yes
Image transmission
Tablet
Size of chip (″)
1/2.5
sensor
CMOS
Shutter
Rolling Shutter
Sensitivity (mV/s)
2 V/lux sec
Supported operating systems
Win 10

General


Series
EduPad
Weight (g)
400
Length (mm)
21
Width (mm)
12
Height (mm)
9

Miscellaneous


supplier product number
EP.5000c

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
Euromex Camera EduPad-5, 5MP, USB2, 8 inch Tablet
Euromex Camera EduPad-5, 5MP, USB2, 8 inch Tablet
