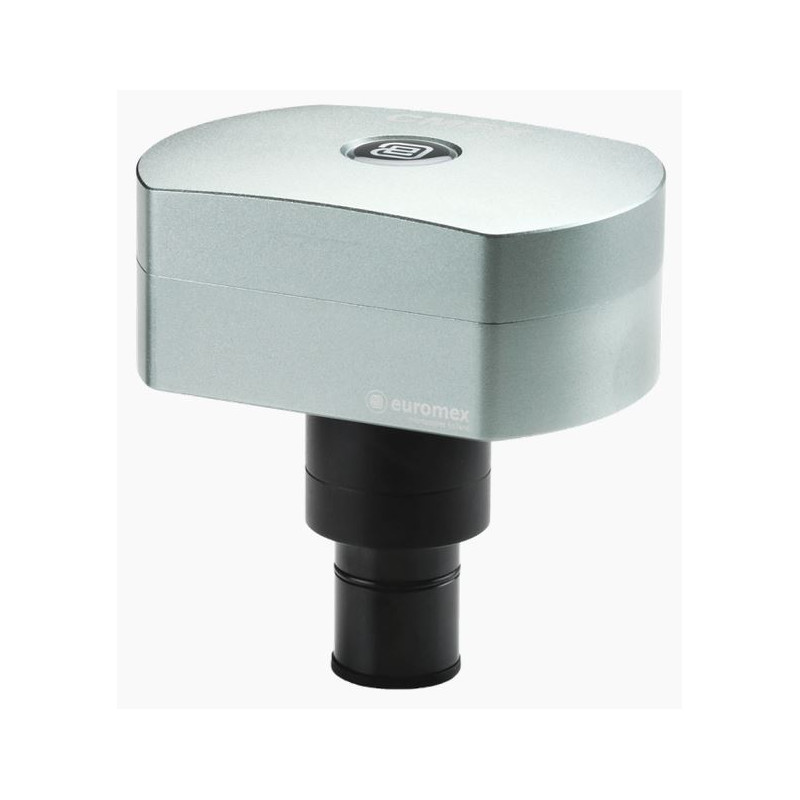

sCMEX
The different USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes sCMEX USB-3 cameras with Scientific sCMOS sensorThe sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
Besides capturing images and videos, the software allows measurements on still and live images and annotations on captured images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations. Also compatible with Mac OS (image capturing only). PC requirements: Intel Core2 2.8 GHz or higher or equivalent, 2 GB memory, USB-3 port, 17 inch display
Highlights
- Highest speed camera
- SONY Exmor R sCMOS color USB 3.0 camera
- Low signal/noise ratio
- USB 3.0 interface
- Back-illuminated sCMOS sensor
- Perfect color-reproduction capability
TECHNICAL DATA sCMEX-6 (DC.6000s)
- Sensor: SONY Exmor R sCMOSs 1/1.8"
- Pixels: 3072 x 2048 pixels, 6.3 Mpix
- Pixel size: 2.5 µm x 2.5 µm
- Colour filter: RGB
- Connection: C-mount
- Max fps: @3072 x 2048 pixels-30 f/s
- @ 1536 x 1024 pixels-38 fps
- ADC: 16 bits
- Colour: 36 bits
- Sensitivity: 0.15 V/lux-sec @ 550 nm
- Exposure: automatic or manual from 0.1 ms to 3 seconds
- White balance: automatic/manual
- Signal-to-noise ratio: 69 dB
- Interface: USB 3.0 at 480 Mb/s
- Operating conditions: 0–60°C, 45–85% humidity
- Storage temperature: -20 to 70°C

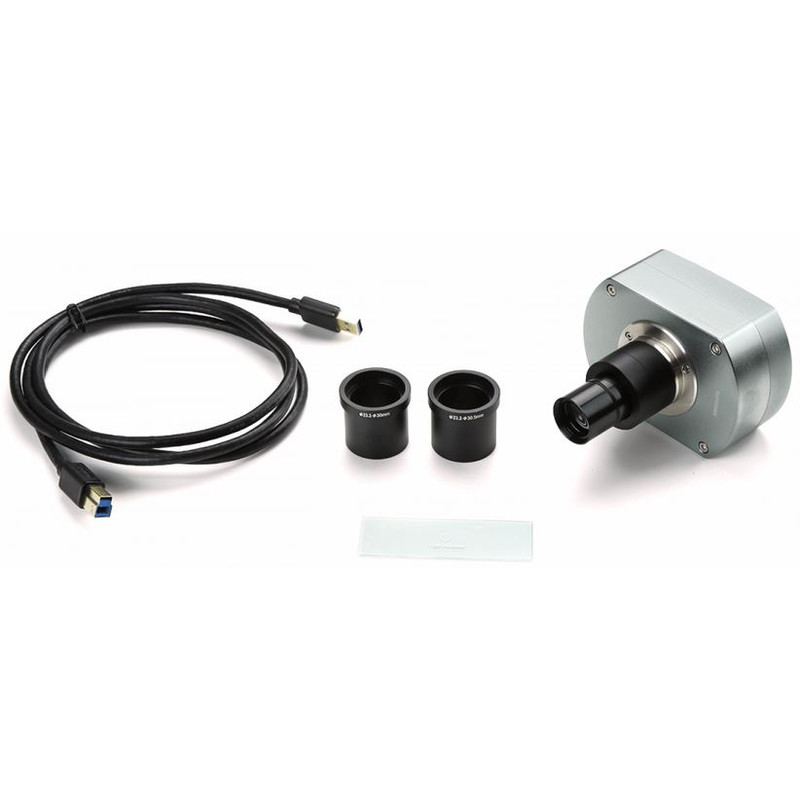

- Supplied with: The scope of delivery includes a 0.5x lens with C/CS ring, a USB 3.0 cable, a 30 and 30.5 mm adaptor for stereo microscopes, a 76 x 24 mm calibration glass 1 mm/100, and a CD-ROM with the ImageFocus 4 software. All components are packed in a sturdy cardboard box.
- Software: Windows XP, Vista, Windows 7, Windows 8 (32 and 64 bit configurations), Windows 10
- Product number: DC.6000s
