In brief:
- HD 1080p HD video camera

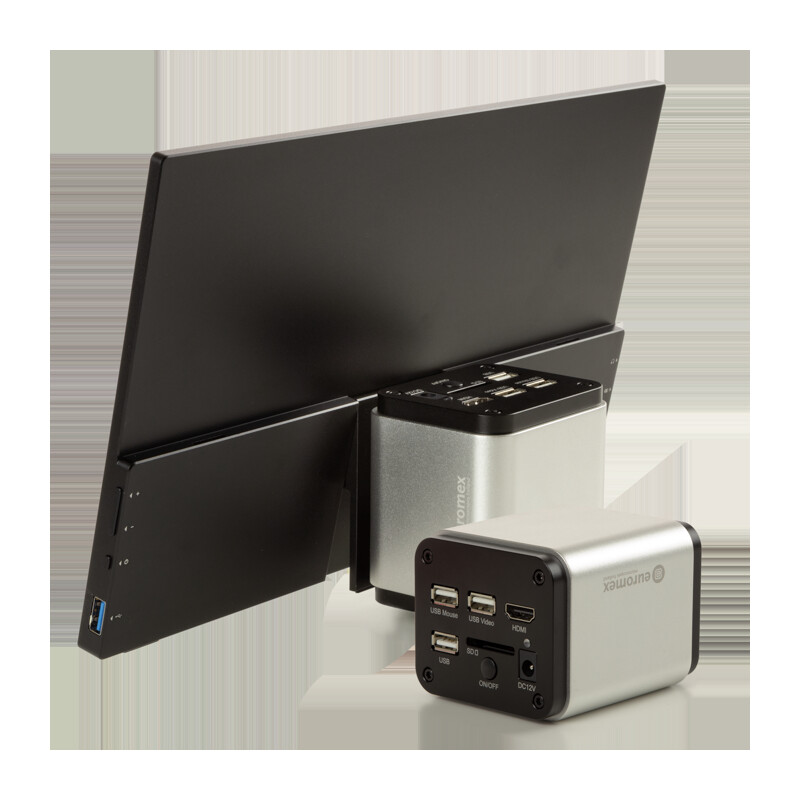

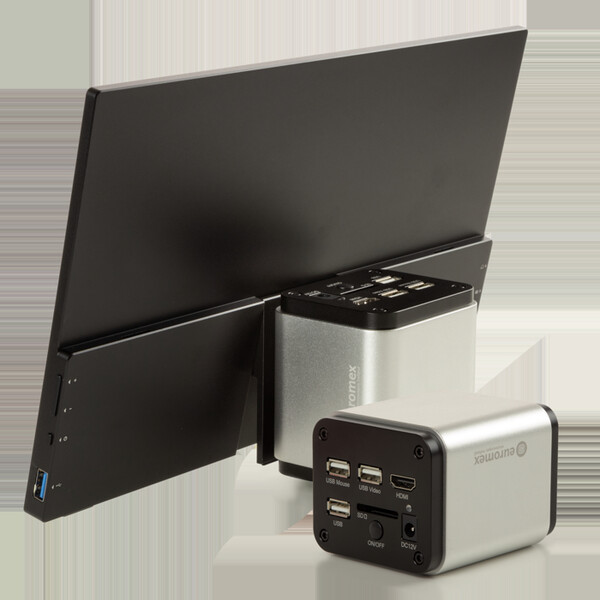

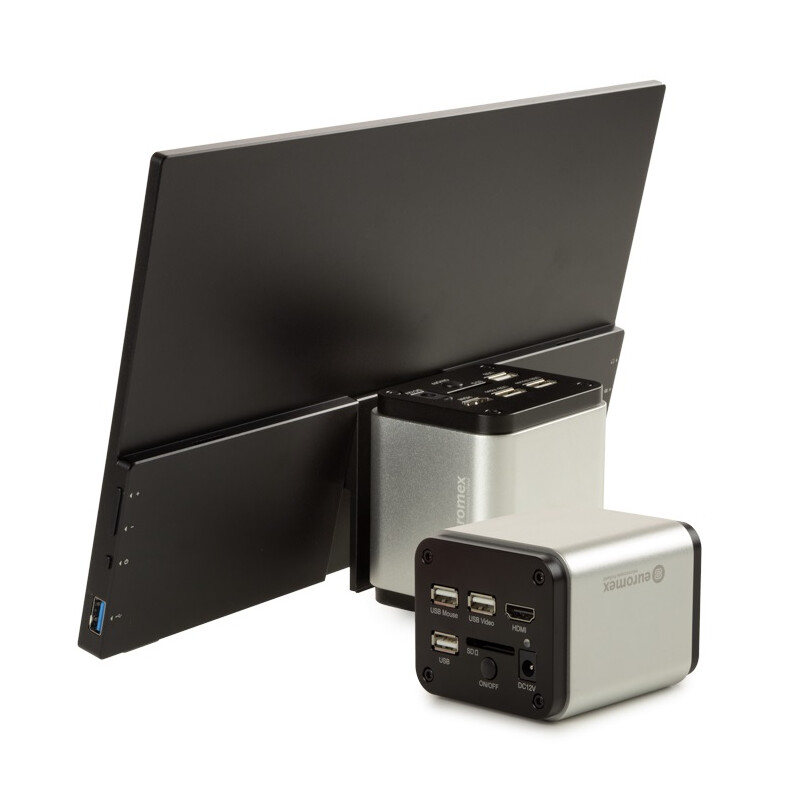

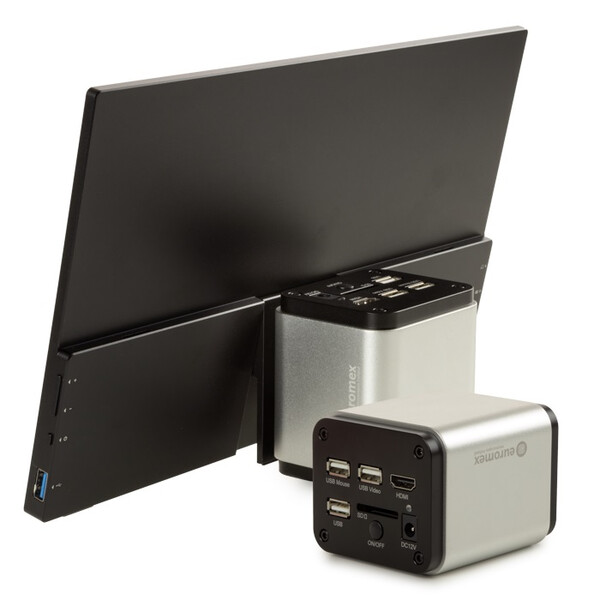

- Available with 11.6-inch HD screen (VC.3039-HDS)
- Real-time images directly on the screen
- Stand-alone or via PC or simultaneous use
- Integrated, mouse-controlled software
- C-mount connection

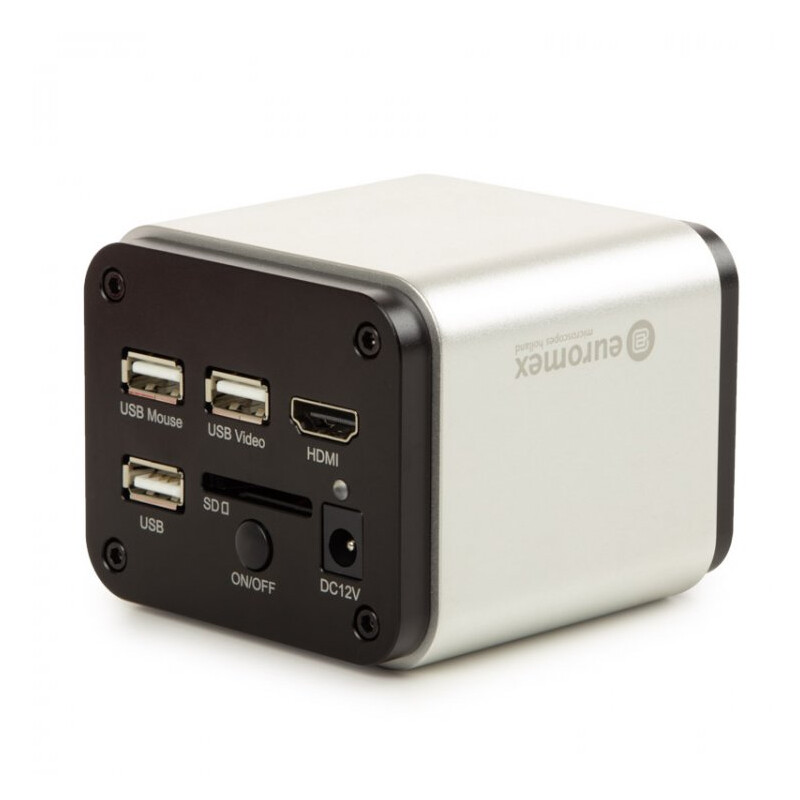

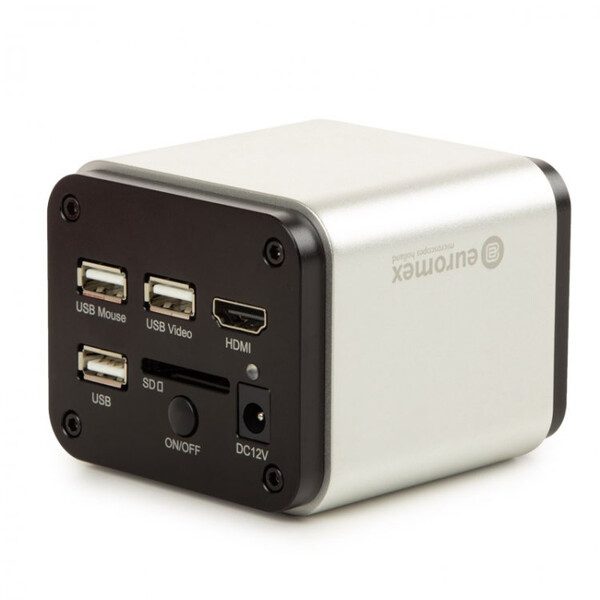

- HDMI, USB-C and SD memory card
- Compatible with ImageFocus Alpha software
Specification:
Sensor SONY CMOS EXMOR 8 MP
Sensor size 1/2 .8", HDTV 1080p (50/60Hz)
Pixel
3840x2160 pixels (capture mode)
1920 x 1080 pixels (live preview),
HDMI 60 fps, USB 26 fps
Pixel size 1 .45 x 1.45 µm
Video 1080p pixel video recording mode
HD screen (VC.3039-HDS) 13"
Video output Digital HDMI, USB-C
Scan mode Progressive scan, rolling shutter
Exposure Automatic/manual 0.04-1000 ms
White balance Automatic/manual/ROI
Sensitivity 300 mV with 1/30 s
Noise 3D algorithm
Colour reproduction 24
Signal-to-noise ratio (dB) 38
Dynamic range (dB) 66
Interfaces Digital HDMI, USB-C
Storage Standard high-speed 32 GB SD memory card (128 GB max)
Camera buttons On/off
Mounts C-mount interface
Power supply External power pack DC 12V/1A
Operating temperature -10 ~ 50 C, 30~80% humidity
Storage temperature-20~ 60 C, 10~60% humidity
PC software
ImageFocus Alpha mount and measurement software for Windows 10/11 (32 and 64 bit versions), Mac OS and Linux
PC requirements
Equivalent to Intel Core 2, 2.8 GHz or higher, memory: 2 GB, USB-C
Scope of delivery VC.3039 / VC.3039-HDS:
- USB mouse

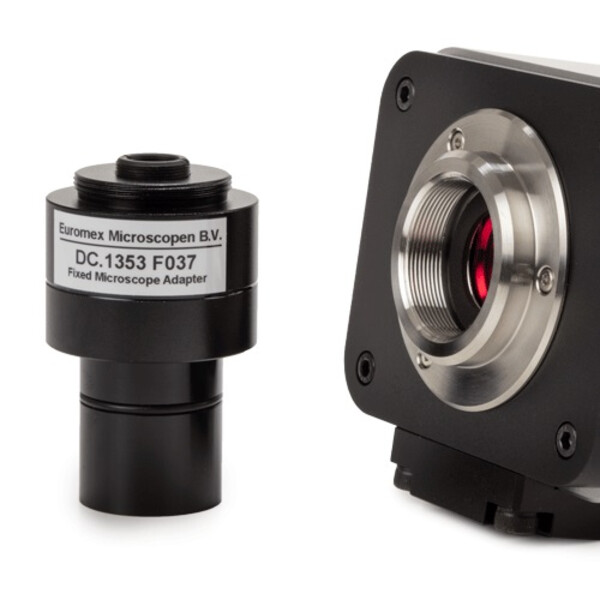

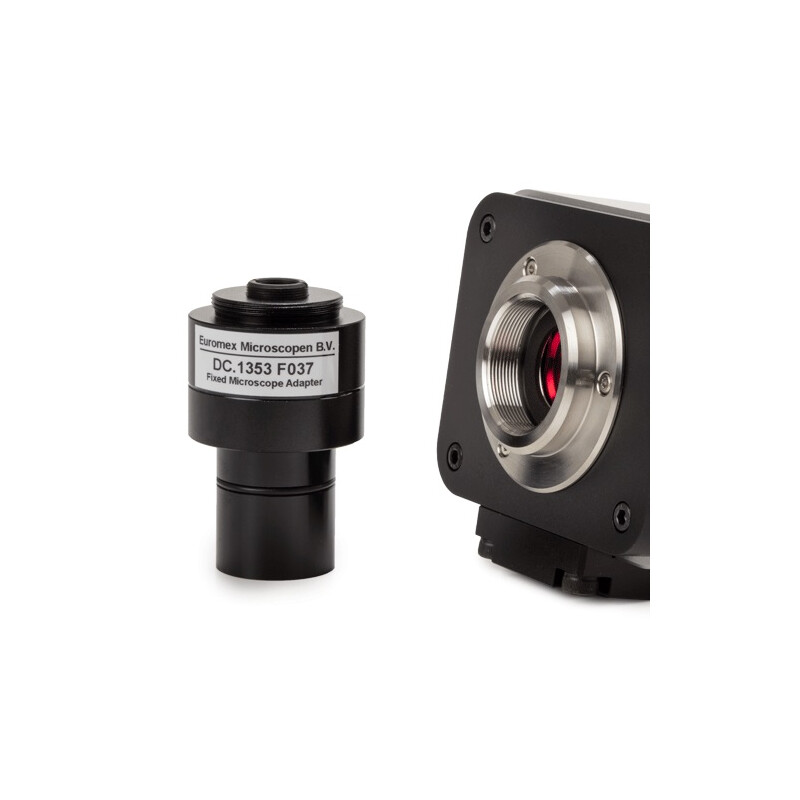

- C-mount adaptor (0.35x)
- Conversion adaptors (30.0 mm and 30.5 mm, for use with stereo microscopes)
- 12V 1A power supply
- USB-2 synchronisation cable (1.5 m)
- Calibration slide 76 x 24 mm (1 mm / 100)
- 32 GB SD memory card
- HDMI cable
- 13-inch HD screen only included with VC.3039-HDS
