Microscopy > Microscopy accessories > Cameras > Cameras > Evident Olympus > Evident Olympus Camera CAM-SC180, colour, CMOS, 1/2.3", 1.25 µm, 10.5 fps, 18.1 MP
Product no.: 76687

Camera CAM-SC180, colour, CMOS, 1/2.3", 1.25 µm, 10.5 fps, 18.1 MP

$ 7,800.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

SC180 18.1MP CMOS camera ( E9700478)

In brief:

  • Real-time digital microscopy images with fast 4K UHD
  • The CMOS sensor delivers up to 59 fps, allowing you to work reliably and completely on the screen.
  • Olympus Smart Image Averaging (OSIA) and Automatic White Balance (AWB)
  • ICC colour reproduction technology
  • Focus Peaking technology

Lifelike microscope images

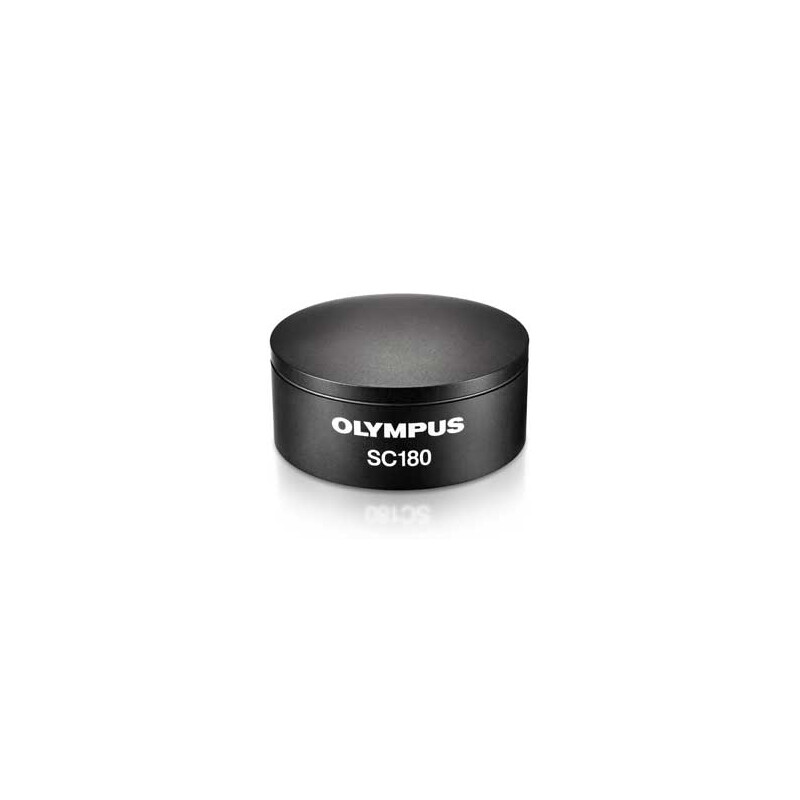

The high-resolution SC180 digital colour microscope camera (18 MP) shows the smallest details and structures of a sample.

With almost four times more pixels than a standard microscope camera, the SC180 camera allows the full lens resolution to be used to display details and structures of the sample (example image 1, cross-section of a human kidney: with detailed magnification (middle image), captured with a standard camera (UPLSAPO10X, 1X TV adaptor), with detailed magnification (left image), captured with an SC180 18-megapixel camera (UPLSAPO10X, 1X TV adaptor)).

The SC180 digital microscope camera with 4K UHD enables live display of even the smallest sample details on the screen at 25 frames per second (fps).

Olympus' colour profiling technology automatically ensures excellent colour fidelity and reproduction, maintaining consistency between input and output colours and between different cameras (integrated ICC colour reproduction technology).

Focus Peaking technology allows the focused areas of the sample to be displayed for sharp images with fewer manual focusing steps (sample image 2). Two selectable and adjustable Focus Peaking modes highlight all focused areas in the live image.

By simply moving the cross table, captured images from multiple sample areas can be combined into a single panoramic image using the Multiple Image Alignment (MIA) function (example image 3). By adding a motorised table, the stitching function can be fully automated. The digital stitching function (manual or automatic) can expand the field of view to analyse a large area.

Scope of delivery:

Camera with C-mount cover, USB cable, user manual

Specifications

Capacity


Megapixel
18,1

Camera


Pixel size
1,25
Megapixel
18,1
Resolution Photograph (Pixel)
4912×3684
Internal memory (Megabyte)
-
TV output
-
Colour camera
yes
Image transmission
USB 3.0
sensor
CMOS
Size of chip (″)
1/2.8
adapter required
0.35x, 0.5x
Supported operating systems
Win 10
frame rate (fps)
10,5
Min. exposure time (ms)
0,022
Max. exposure time (ms)
1000

Miscellaneous


supplier product number
E9700478

Downloads

Product safety

Manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
Evident Olympus Camera CAM-SC180, colour, CMOS, 1/2.3", 1.25 µm, 10.5 fps, 18.1 MP

Example image 1

Evident Olympus Camera CAM-SC180, colour, CMOS, 1/2.3", 1.25 µm, 10.5 fps, 18.1 MP

Example image 2

Evident Olympus Camera CAM-SC180, colour, CMOS, 1/2.3", 1.25 µm, 10.5 fps, 18.1 MP
Sample entry 3
