Microscopy > Microscopy accessories > Cameras > Cameras > Evident Olympus > Evident Olympus Camera DP23-CU-1-2, 6.4 MP, 1/1.8 inch, CMOS, colour, USB 3.1
Product no.: 77976

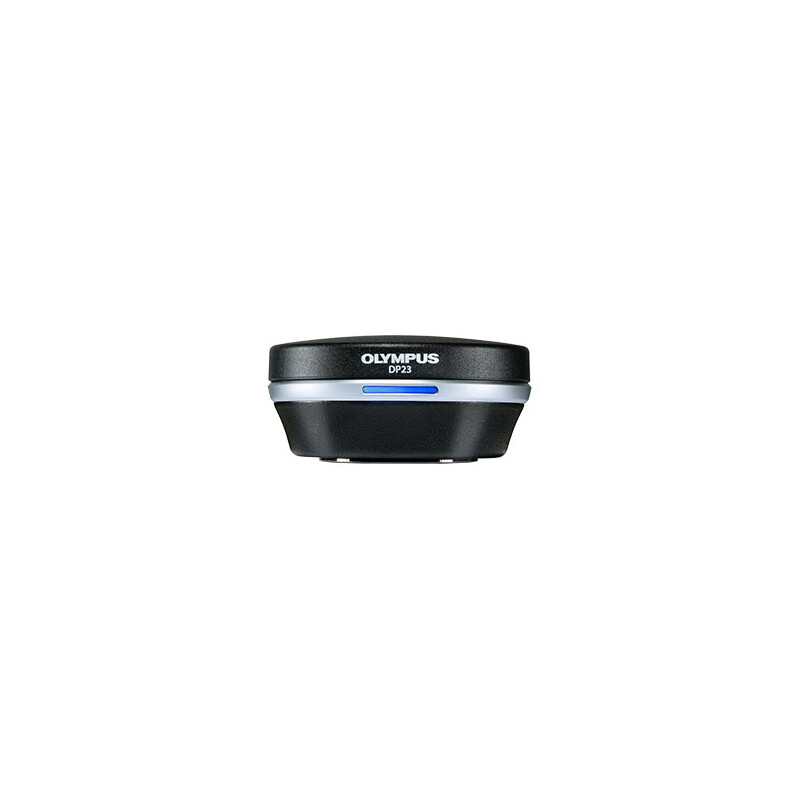

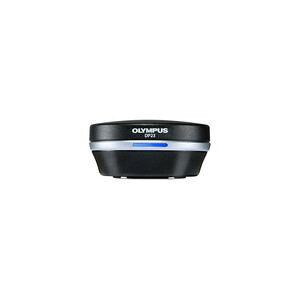

Camera DP23-CU-1-2, 6.4 MP, 1/1.8 inch, CMOS, colour, USB 3.1

$ 4,900.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

DP23-CU-1-2 (E9701757)

6.4 MP, 1/1.8 inch, CMOS colour camera for C-mount adaptation, no cooling, USB 3.1 interface. Includes: camera head, USB 3.1 cable and user manual. Supported by cellSens/STREAM, DP2-TWAIN and DP23-AOU.

HD microscope camera for the laboratory

Designed for routine bioscience and clinical microscopy imaging, the combination of intelligent features and excellent colour reproduction of the DP23 digital microscope camera delivers high-quality images in an easy-to-use camera.

With fast image capture in the highest quality and high resolution, the DP23 is also suitable for image sharing, locally and remotely, for conferences and consultations. For efficient collaboration, all critical data (images, annotations and live measurements) can be easily displayed and shared locally or remotely. Images and data are shared using the cellSens software, the NetCam solution or the image sharing function with the independent camera control module.

The measurement area always remains in focus, as can be seen in example image 1. Special ICC profiles display samples in their natural colours (see example image 2). Dyes frequently used in the life sciences are reproduced with accurate colours.

Thanks to the very large field of view (field number 25), a larger portion of the sample is visible, provided that the existing microscope system has a corresponding field number.

The Olympus Smart Image Averaging (OSIA) function suppresses noise and artefacts while maintaining a fast frame rate.

The high contrast mode enables easier image acquisition with a high signal-to-noise ratio, allowing high-quality images to be captured even from poorly illuminated samples during polarisation and fluorescence microscopy.

Scope of delivery:

Camera with C-mount cover, USB cable, user manual

Specifications

Capacity


Connection
C-Mount
Resolution Photograph (Pixel)
3088 × 2076
Resolution video (Pixel)
3088 × 2076
Megapixel
6.4
Interface
USB 3.0

Camera


Pixel size
2,4
frame rate (fps)
32
adapter required
C-Mount 0.5x
Size of chip (″)
1/1.8
Colour camera
yes
Shutter
Rolling Shutter

Miscellaneous


supplier product number
E9701550

Product safety

Manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
Evident Olympus Camera DP23-CU-1-2, 6.4 MP, 1/1.8 inch, CMOS, colour, USB 3.1

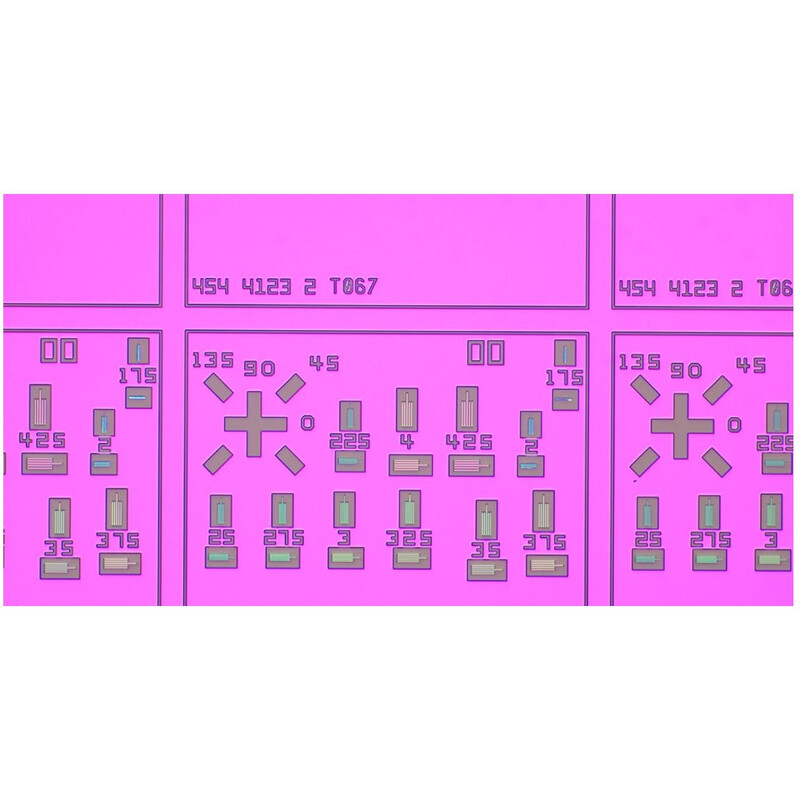

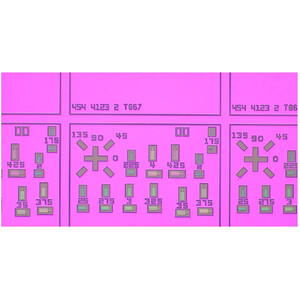

Example image 1

Evident Olympus Camera DP23-CU-1-2, 6.4 MP, 1/1.8 inch, CMOS, colour, USB 3.1

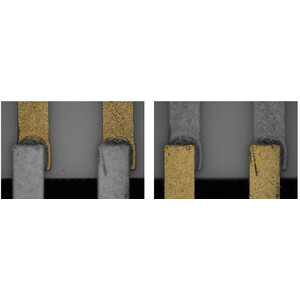

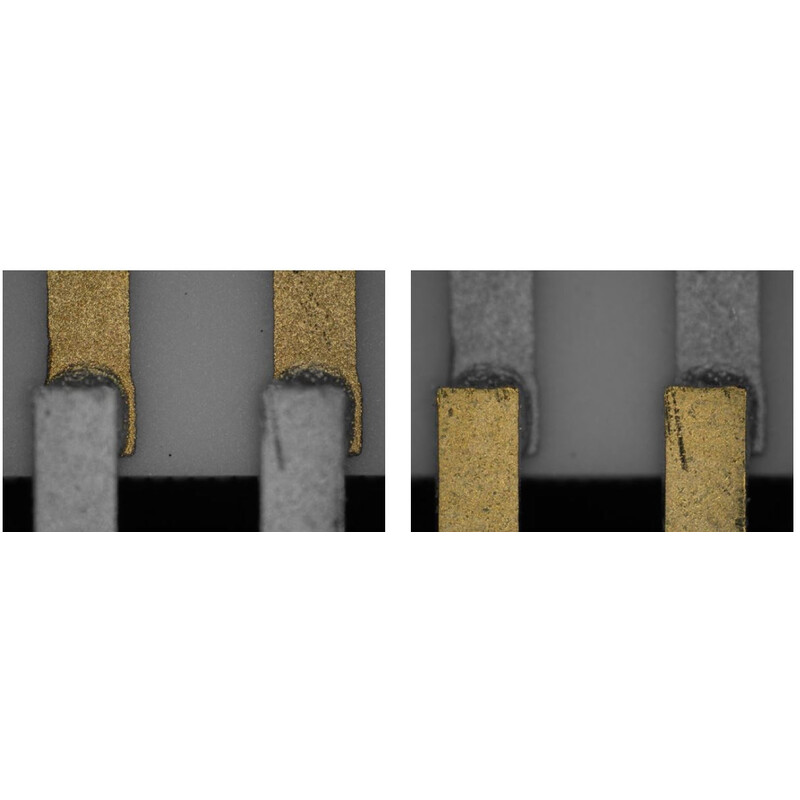

Example image 2
