Microscopy > Microscopy accessories > Cameras > Cameras > MAGUS > MAGUS Camera CBF10 colour CMOS USB 3.0 18MP 1.25µm 1/2.3"
Product no.: 86348

Camera CBF10 colour CMOS USB 3.0 18MP 1.25µm 1/2.3"

$ 580.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Colour camera with Aptina CMOS sensor

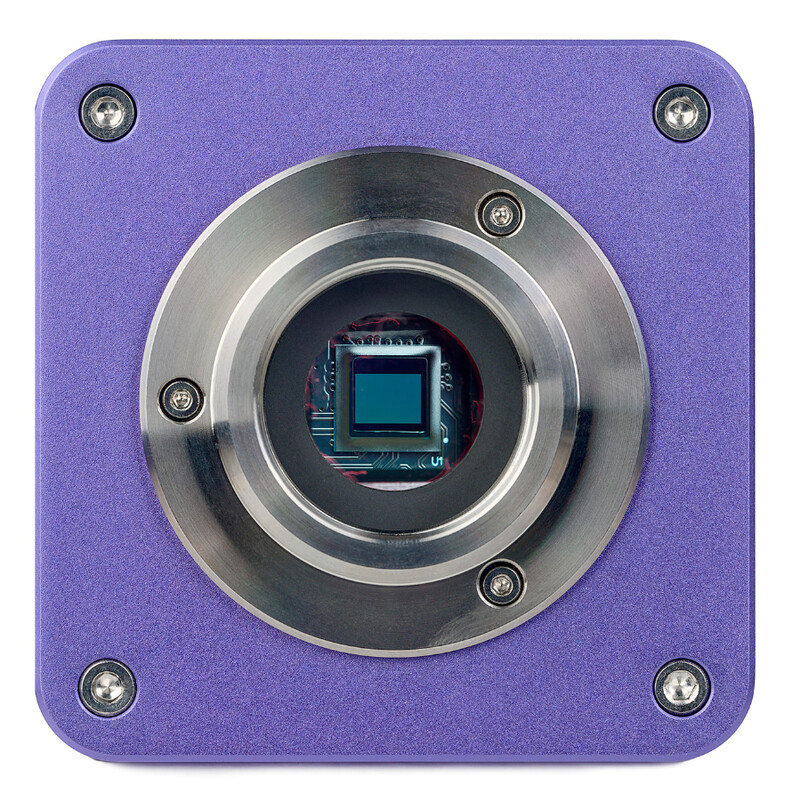

  • Connection via C-mount thread

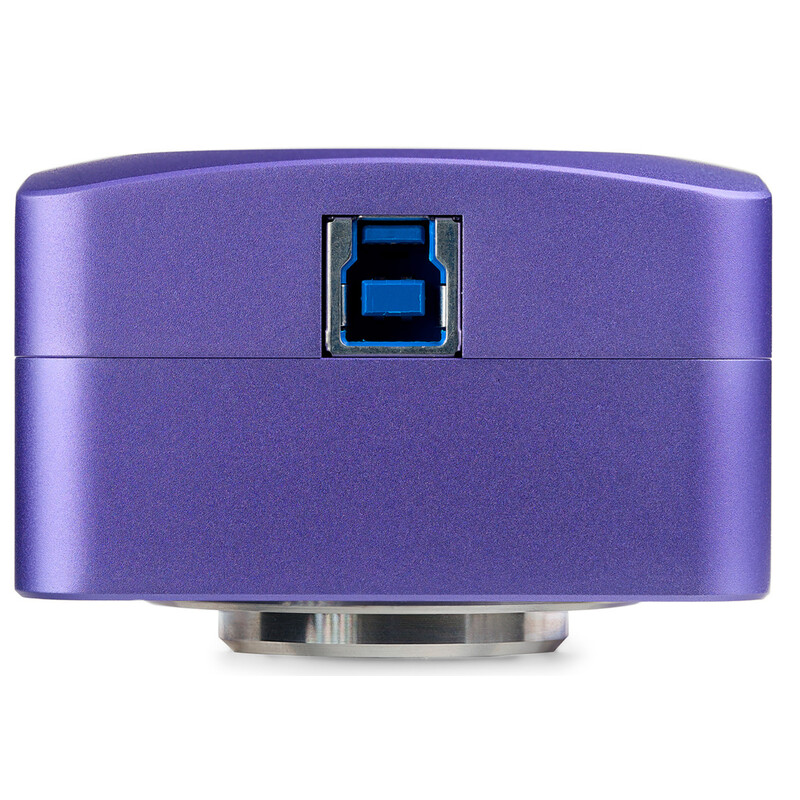

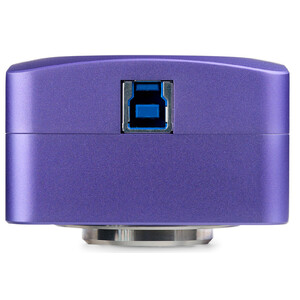

  • Connection via USB 3.0
  • Software included
  • Spectral range: 380–650 nanometres

Product description

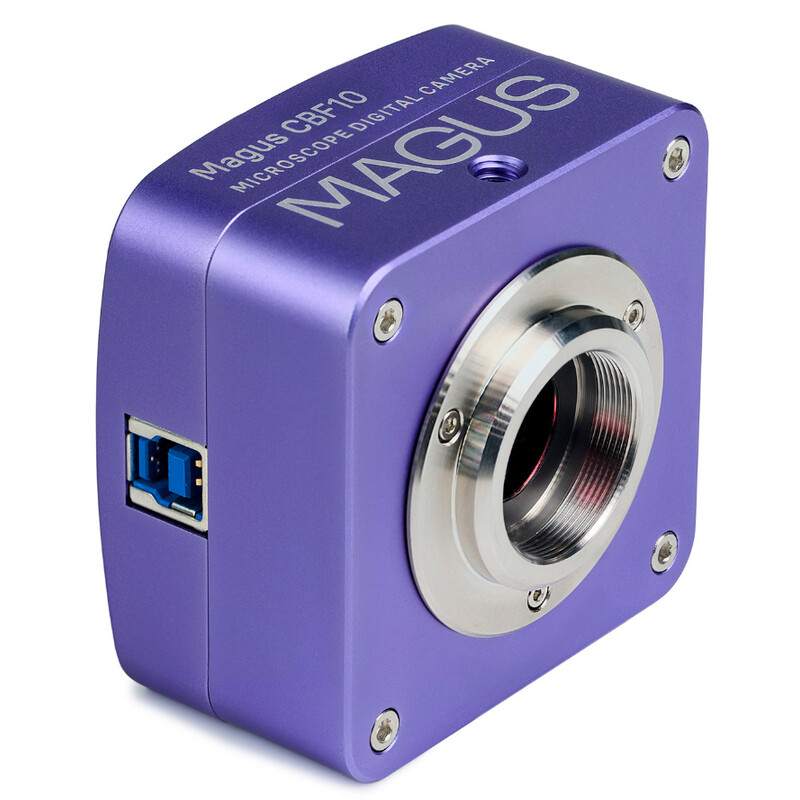

The MAGUS CBF10 digital camera is equipped with an Aptina CMOS sensor with a light sensitivity of 0.62 mV/lux/s. With an adaptor with 0.4 to 0.6x magnification, you can achieve the maximum field of view without distortion.

The 18 MP sensor enables realistic and detailed images with a resolution of 4912x3684 pixels. In this mode, videos are recorded at 13.1 frames per second. By reducing the resolution, you can increase the frame rate and thus improve the smoothness of the video.

A USB 3.0 interface is used to connect to a computer. Data transfer is ten times faster than with the previous generation. The camera's fast performance makes it an excellent choice for professional laboratories, research and university education.

The MAGUS CBF10 digital camera comes with a software CD. It is used for photography, video recording, image display and editing. After software calibration, line and angle measurements can be performed.

The camera can be installed either in the eyepiece tube (instead of an eyepiece) or in a trinocular tube. C-mount adaptors and adapter rings for the desired installation diameter are available separately.

System requirements: Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8 GHz Intel Core 2 or higher, at least 2 GB RAM, USB 3.0 port, CD-ROM, 17-inch or larger screen

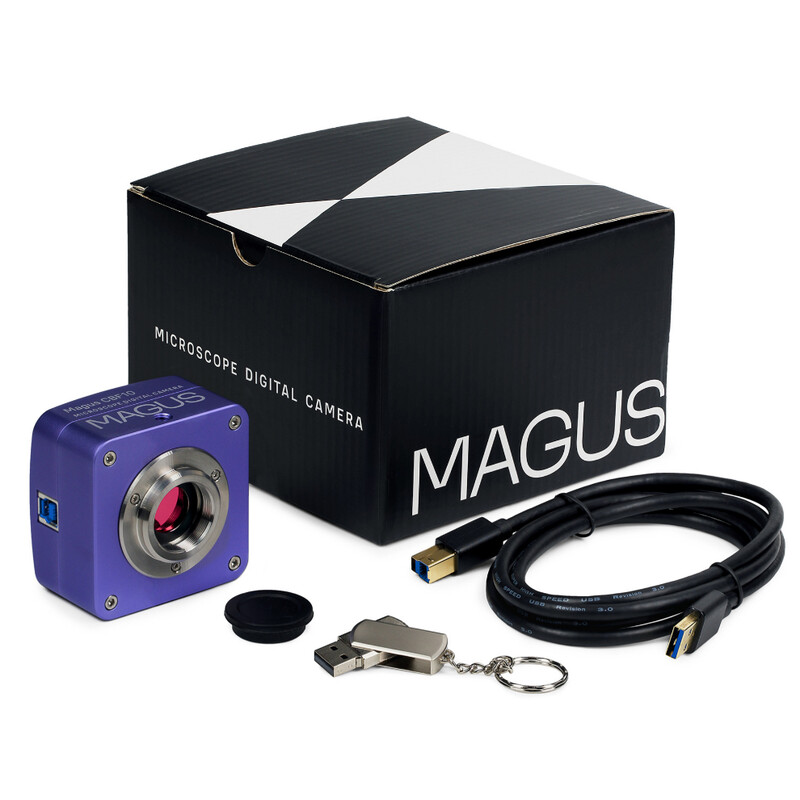

Scope of delivery:

  • Digital camera
  • USB cable
  • Installation CD with drivers and software
  • Operating instructions and warranty card

Specifications

Capacity


Size of chip (mm)
6,14 x 6,14
Megapixel
18
Image format
JPG, BMP, PNG, TIFF
Resolution Photograph (Pixel)
4912 x 3684
Internal memory (Megabyte)
-
Video format
wmv, avi
TV output
-
Power supply
USB
Video function
yes
Connection
C-Mount

Camera


Peltier cooling
no
Colour camera
yes
Spectral Range (nm)
380-650
Image transmission
USB 3.0
sensor
CMOS (Aptina)
Pixel size
1,25
Software
MAGUS View
frame rate (fps)
13,1 (at full resolution)
Max. exposure time (ms)
2000
Min. exposure time (ms)
0,1
Shutter
Electronic Rolling Shutter
adapter required
C-Mount 0,75x
Supported operating systems
Windows, Linux, Mac OS X

Product safety

Manufacturer: Levenhuk Optics s.r.o., V Chotejne 700/7, 102 00 Prag, CZ, www.levenhuk.com
