Microscopy > Microscopy accessories > Cameras > Cameras > MAGUS > MAGUS Camera CBF70 color CMOS USB 3.0 21MP 3.3µm 4/3"
Product no.: 85622

Camera CBF70 color CMOS USB 3.0 21MP 3.3µm 4/3"

$ 1,320.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • 21 MP colour camera with Sony sensor
  • Connection via C-mount thread
  • Connection via USB 3.0
  • Software included
  • Spectral range: 380–650 nanometres

Product description

With the MAGUS digital camera, you can take photos and videos through a microscope, edit the resulting files, organise presentations and measure lines and angles of objects (after correct calibration).

The SONY Exmor Backlit colour CMOS sensor allows the camera to be used even in poor lighting conditions. The image remains clear and bright.

The MAGUS digital camera has a USB 3.0 interface, ensuring that data is transferred as quickly as possible without loss or delay.

The camera can be installed in the trinocular tube of the microscope using a C-mount adaptor. Installation in an eyepiece tube is also possible and requires a C-mount adaptor and an adapter ring for the diameter of the tube.

The camera is designed for microscopes with 4x, 10x, 20x and 40x magnifications.

System requirements: Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8 GHz Intel Core 2 or higher, at least 2 GB RAM, USB 3.0 port, CD-ROM, 17-inch or larger screen

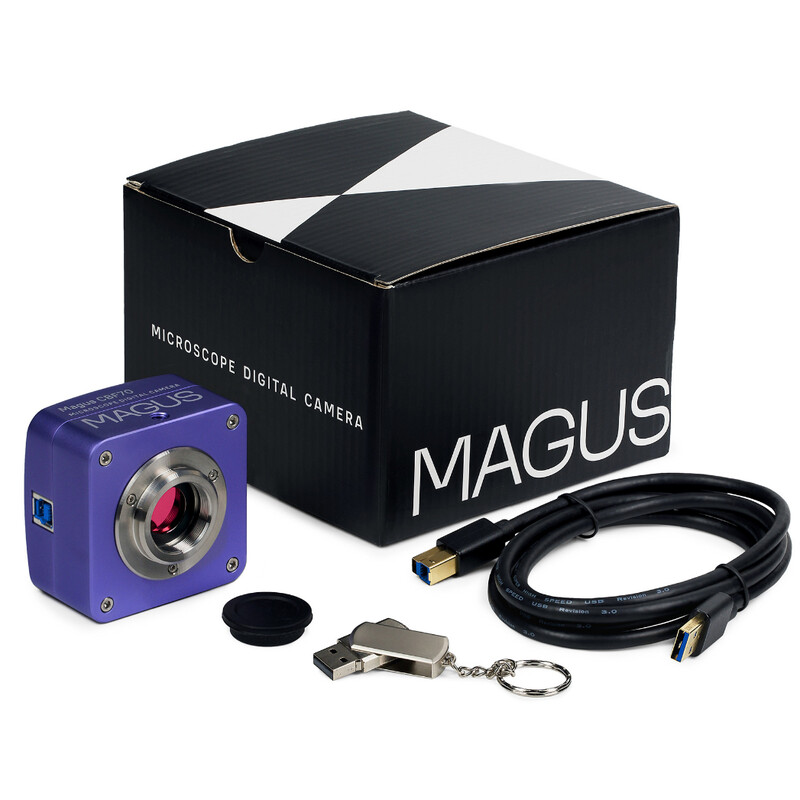

Scope of delivery:

  • Digital camera
  • USB cable
  • Installation CD with drivers and software
  • Operating instructions and warranty card

Specifications

Capacity


Size of chip (mm)
17,4 x 13,0
Megapixel
21
Image format
JPG, BMP, PNG, TIFF
Resolution Photograph (Pixel)
5280 x 3954
Internal memory (Megabyte)
-
Video format
wmv, avi
Max. length of video
unendlich
TV output
-
Power supply
USB
Video function
yes
Connection
C-Mount

Camera


Peltier cooling
no
Colour camera
yes
Spectral Range (nm)
380-650
Image transmission
USB 3.0
sensor
CMOS (Sony Exmor)
Pixel size
3,3
Software
MAGUS View
frame rate (fps)
17 (at full resolution)
Max. exposure time (ms)
15000
Min. exposure time (ms)
0,1
Shutter
Electronic Rolling Shutter
adapter required
C-Mount 1,0x
Supported operating systems
Windows, Linux, Mac OS X

General


Weight (g)
300
Length (mm)
68
Width (mm)
68
Height (mm)
46

Product safety

Manufacturer: Levenhuk Optics s.r.o., V Chotejne 700/7, 102 00 Prag, CZ, www.levenhuk.com
MAGUS Camera CBF70 color CMOS USB 3.0 21MP 3.3µm 4/3"
MAGUS Camera CBF70 color CMOS USB 3.0 21MP 3.3µm 4/3"
MAGUS Camera CBF70 color CMOS USB 3.0 21MP 3.3µm 4/3"
MAGUS Camera CBF70 color CMOS USB 3.0 21MP 3.3µm 4/3"
