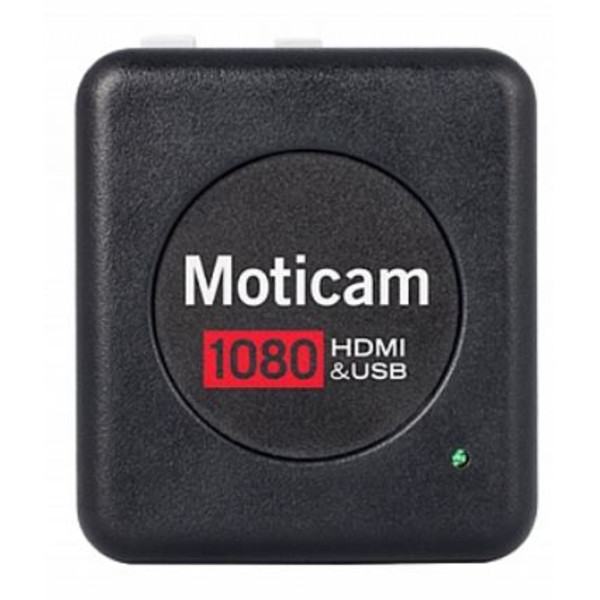

MOTICAM 1080

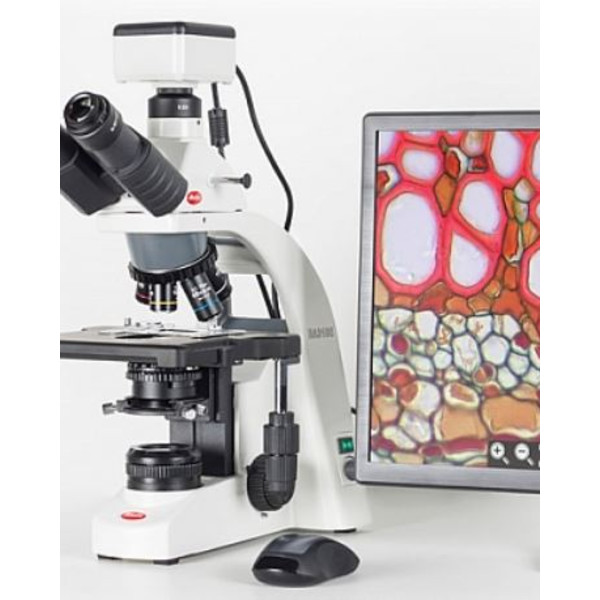

The Moticam 1080 is a microscope camera with HDMI and USB output and impressive 1080p full HD live images with maximum colour fidelity. The alternative USB signal is designed for use with a PC and the full version of Motic Images 3.0 software. The microscope is adapted via the separate photo output of the microscope. In HDMI mode, the on-board software allows the camera to be controlled via an external full HD monitor with a wireless mouse connected via the camera's USB port.
Specification MOTICAM 1080
Sensor type: CMOS
Sensor format: 1/2.8"
Active sensor area: 5,346 x 3,003 mm
Still image resolution: 8MP (3840x2160 pixels)
Image resolution on SD card: 8MP (3840x2160 pixels)
Video resolution on SD card: 1920x1080p (Full HD)
Live image via USB: 1920x1080 pixels (Full HD)
Live image via HDMI: 1920x1080 (Full HD)
Pixel size: 2 .8x2.8μm
Scan mode: Progressive scan
Data transfer: HDMI (1080p), USB 2.0
Max. frame rate (fps) USB: 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps
Exposure time: 0.06 ms - 40 ms with auto exposure (0.06 ms to 999 ms with manual exposure)
Operating temperature: From -10° to +60° Celsius, non-condensing
Signal-to-noise ratio: 40dB
Dynamicrange: 71dB
Sensitivity: 0 .51V (at 1/30 sec)
Card slot: SD card(max. 32GB)
Control buttons: On/Off
Supported instruments: TWAIN and Direct Show drivers
Supported operating systems: Windows XP SP3/Vista/7/8/10 and MAC OSX, Linux
Minimum system requirements: 2GHz dual-core processor, 2GB RAM, minimum 512MB video memory
Thread: C-mount
Focusable lens: 12 mm
Software: On-board software
Functions: Single image capture, live image with zoom in/out, magnifying glasses, ROI, mirror, rotate, split, freeze, crosshairs, gallery, auto/manual exposure, gain, auto/manual white balance, saturation, contrast, gamma, sharpness, noise reduction, user settings, additional languages (English, Chinese and Japanese), SD card formatting.
Mains voltage: 12V (external power supply)
Scope of delivery: CS ring, focusable lens, 30 mm and 38 mm eyepiece adaptors, USB 2.0 cable, HDMI cable, Motic 4-point calibration scale, macro tube, Motic Images Plus 3.0 for PC/OSX/Linux, universal power pack.
