Microscopy > Microscopy accessories > Cameras > Cameras > Motic > Moticam A > Motic Camera A1, colour, sCMOS, 1/3.1, 4.1µ, 30fps, 1MP, USB 2.0
Product no.: 76558

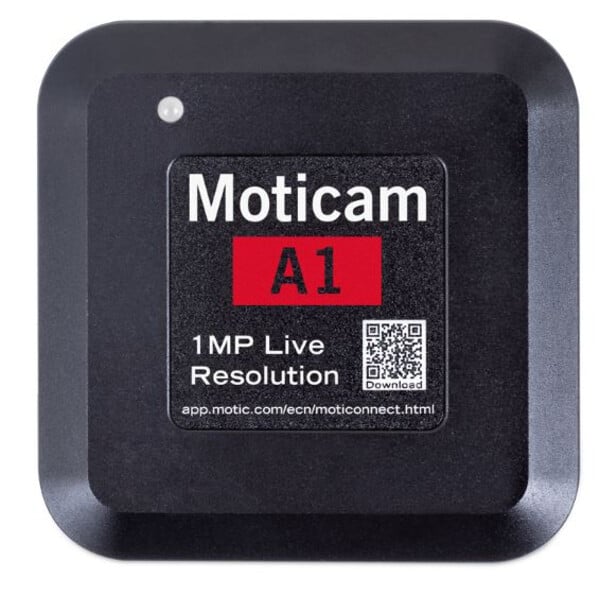

Camera A1, colour, sCMOS, 1/3.1, 4.1µ, 30fps, 1MP, USB 2.0

$ 296.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Moticam A Series

Highlights of the series:

  • Ideally suited for beginners
  • Models from 1 to 16 MP
  • Easy to use
  • Robust metal housing
  • Flexible all-in-one solution with a wide range of accessories

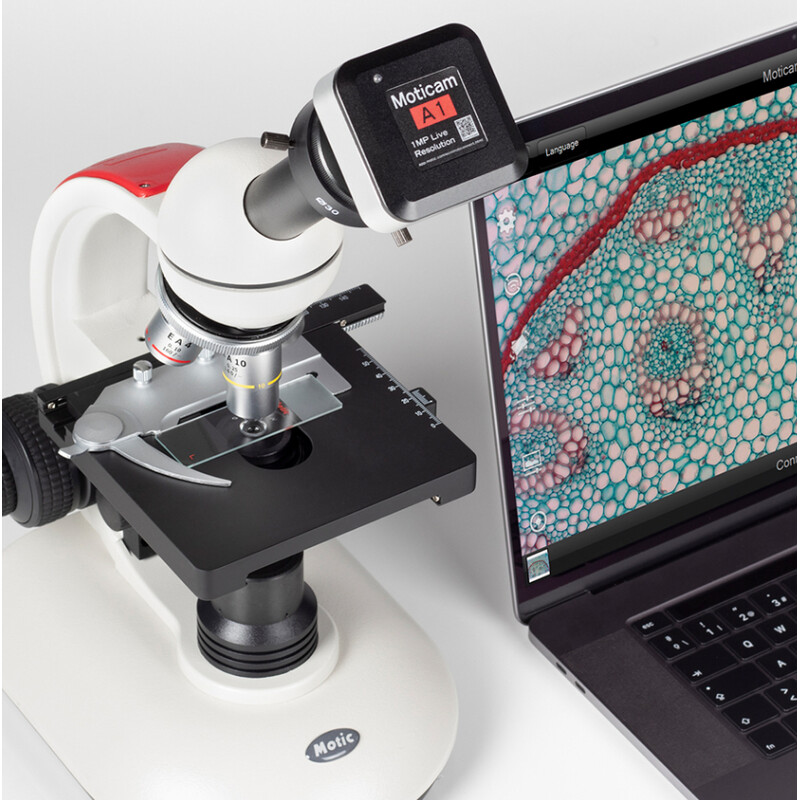

The Moticam A1 is suitable for both beginners and advanced enthusiasts looking for an affordable digital solution for their microscope. Take pictures at 720p and work with a consistent frame rate and all accessories.

Specifications Moticam A1:

Sensor type: sCMOS

Sensor size: 1/3.1"

Image area: 5.95 mm (diagonal)

Number of pixels: 1MP

Live display mode via USB: 1280x720, 1024x768 pixels

Pixel size: 4.1x4.1µm

Scan mode: Progressive

Shuttermode: Rolling shutter

Data transfer: USB 2.0

Max. frames per second (fps): 1280x720 @ 30 fps, 1024x768 @ 30 fps

Operating temperature: -10 to +60 degrees Celsius, non-condensing

Sensitivity: >2000mV

Supported instruments: TWAIN, SDK and Direct Show Driver

Supported operating systems: Microsoft Windows 7/8/10, MAC OSX10.9, Linux UBUNTU1604 or higher

Minimum computer requirements: 2GHz dual-core processor, 2GB RAM

Lensconnection: C-mount

Focusable lens: 12 mm

Software: MotiConnect for Windows/OSX/Linux (download only)

Software features: Still image and video recording, still image measurement, image settings, white balance, automatic and manual exposure, individual lens calibration system.

Power supply: 5V (from USB port)

Scope of delivery: CS ring adaptor, focusable lens, 30 mm and 38 mm eyepiece adaptors, USB 2.0 cable, Motic 4-position calibration slide holder, macro tube.

Moticam A1

  • Sensor type  sCMOS
  • Sensor size  1/3.1"
  • Imaging area 5.95mm (Diagonal)
  • Capture resolution  1MP
  • Live display mode through USB 1280x720, 1024x768 pixels
  • Pixel size  4.1x4.1µm
  • Scan mode  Progressive
  • Shutter Mode Rolling Shutter
  • Data transfer USB 2.0
  • Max. frames per second (fps) 1280x720 @ 30 fps, 1024x768 @ 30 fps (*)
  • Operating temperature From -10 to +60 Degrees Celsius non condensing
  • Sensitivity  >2000mV
  • Support device TWAIN, SDK and Direct Show Driver
  • Supported OS Microsoft Windows 7/8/10, MAC OSX10.9, Linux UBUNTU1604 or higher
  • Minimum computer requirements 2GHz dualcore - RAM memory 2GB
  • Lens mount  C-Mount
  • Focusable lens 12mm
  • Software MotiConnect for Windows/OSX/Linux (Download only)
  • Functions Still image and video capture, still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.

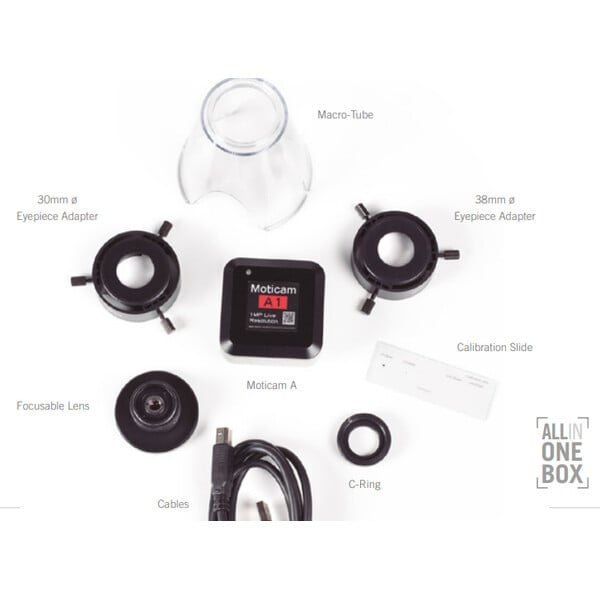

Components:

  • CS ring adaptor
  • focusable lens
  • 30mm and 38mm eyepiece adapters
  • USB 2.0 cable
  • Motic 4-dot calibration slide
  • macro tube
  • calibration card

Specifications

Capacity


Size of chip (mm)
5.95
Megapixel
1
Resolution Photograph (Pixel)
1280*720
Extendable storage
-
Resolution video (Pixel)
1024*768
TV output
-
Power supply
5 V
Video function
yes
Connection
C-Mount
frame rate (fps)
30

Camera


Peltier cooling
no
Colour camera
yes
Image transmission
USB 2.0
Size of chip (″)
1/3.1
sensor
CMOS
Pixel size
4.1
frame rate (fps)
30
Shutter
Rolling Shutter
Min. exposure time (ms)
0.03
Max. exposure time (ms)
30
Sensitivity (mV/s)
>2000mV
Software
MotiConnect
Supported operating systems
Windows 7/8/10, MAC OSX, Linux
Interface
USB-2

General


Colour
black
Series
Moticam A

Miscellaneous


supplier product number
1100600101412

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
Motic Camera A1, colour, sCMOS, 1/3.1, 4.1µ, 30fps, 1MP, USB 2.0
Motic Camera A1, colour, sCMOS, 1/3.1, 4.1µ, 30fps, 1MP, USB 2.0
Motic Camera A1, colour, sCMOS, 1/3.1, 4.1µ, 30fps, 1MP, USB 2.0
