Microscopy > Microscopy accessories > Cameras > Cameras > Motic > Moticam A > Motic Camera A2, colour, sCMOS, 1/3.1, 2.7µm, 30fps, 2MP, USB 2.0
Product no.: 76579

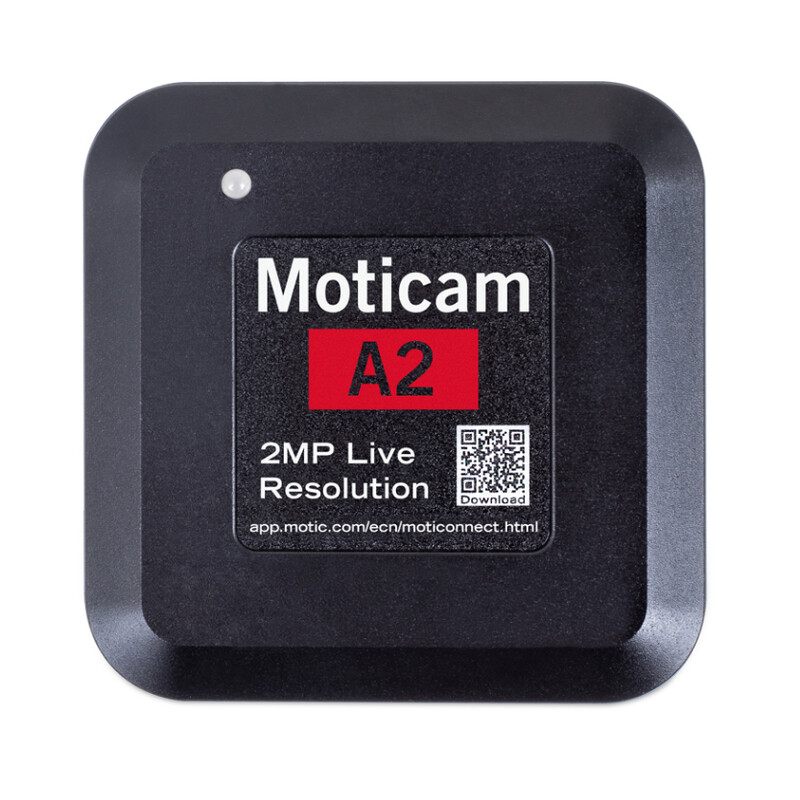

Camera A2, colour, sCMOS, 1/3.1, 2.7µm, 30fps, 2MP, USB 2.0

$ 432.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Moticam A Series

Highlights of the series:

  • Ideally suited for beginners
  • Models from 1 to 16 MP
  • Easy to use
  • Robust metal housing
  • Flexible all-in-one solution with a wide range of accessories

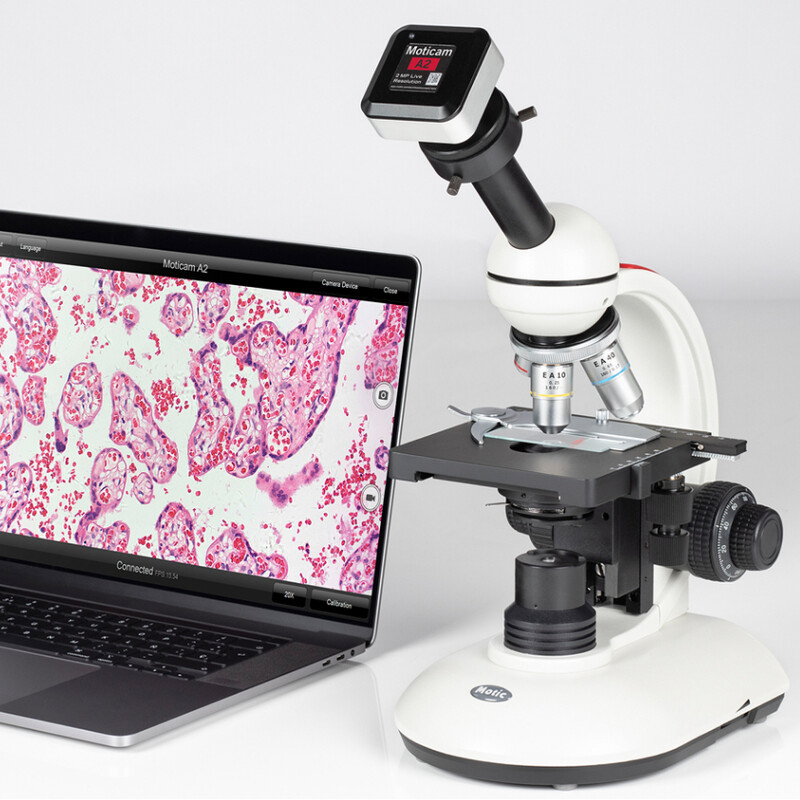

The Moticam A2 is the obvious choice for anyone starting their journey into live imaging and wanting to share their discoveries. Discover live specimens at a stable 30 fps and get a head start in digital microscopy with 1080p resolution.

Specifications Moticam A2:

Sensor type: sCMOS

Sensor size: 1/3.1"

Image area: 5.95 mm (diagonal)

Number of pixels: 2MP

Live display mode via USB: 1280x720, 1024x768 pixels

Pixel size: 2.7x2.7µm

Scan mode: Progressive

Shuttermode: Rolling shutter

Data transfer: USB 2.0

Max. frames per second (fps): 1920x1080 @ 30 fps, 1280x720 @ 30 fps

Operating temperature: -10 to +60 degrees Celsius, non-condensing

Sensitivity: >2000mV

Supported instruments: TWAIN, SDK and Direct Show Driver

Supported operating systems: Microsoft Windows 7/8/10, MAC OSX10.9, Linux UBUNTU1604 or higher

Minimum computer requirements: 2GHz dual-core processor, 2GB RAM

Lensconnection: C-mount

Focusable lens: 12 mm

Software: MotiConnect for Windows/OSX/Linux (download only)

Software features: Still image and video recording, still image measurement, image settings, white balance, automatic and manual exposure, individual lens calibration system.

Power supply: 5V (from USB port)

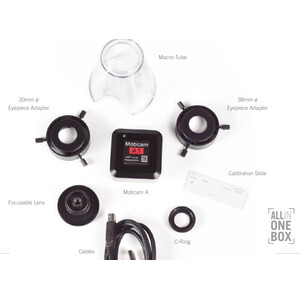

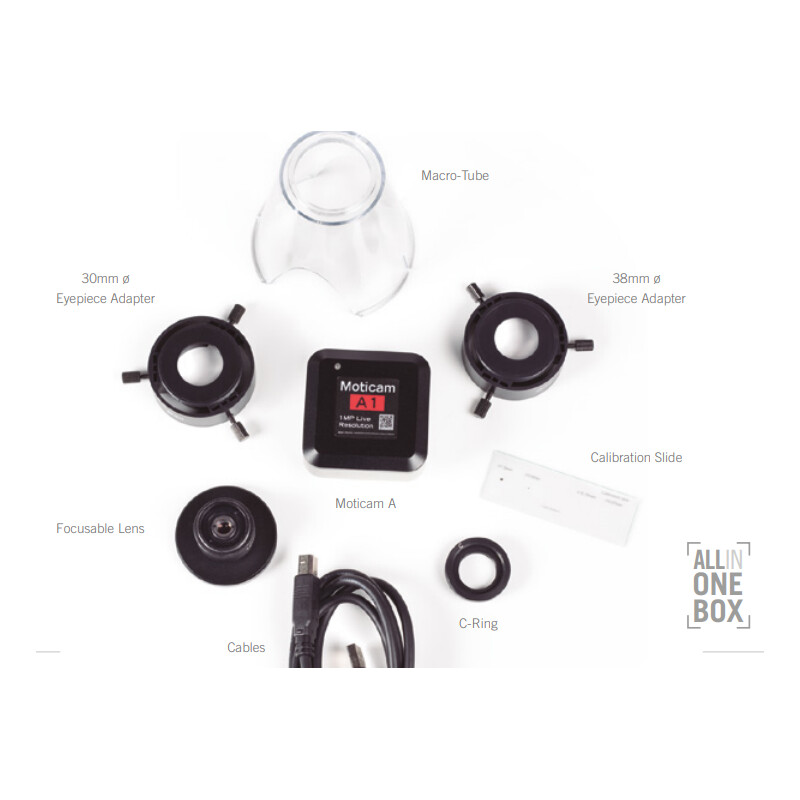

Scope of delivery: CS ring adaptor, focusable lens, 30 mm and 38 mm eyepiece adaptors, USB 2.0 cable, Motic 4-position calibration slide holder, macro tube.

Specifications

Capacity


Size of chip (mm)
5.95
Megapixel
2
Resolution Photograph (Pixel)
1280*720
Extendable storage
-
Resolution video (Pixel)
1024*768
TV output
-
Power supply
5 V
Video function
yes
Connection
C-Mount
frame rate (fps)
30

Camera


Peltier cooling
no
Colour camera
yes
Image transmission
USB 2.0
Size of chip (″)
1/3.1
sensor
CMOS
Pixel size
4.1
frame rate (fps)
30
Shutter
Rolling Shutter
Min. exposure time (ms)
0.03
Max. exposure time (ms)
30
Sensitivity (mV/s)
>2000mV
Software
MotiConnect
Supported operating systems
Windows 7/8/10, MAC OSX, Linux
Interface
USB-2

General


Colour
black
Series
Moticam A

Miscellaneous


supplier product number
1100600101192

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
Motic Camera A2, colour, sCMOS, 1/3.1, 2.7µm, 30fps, 2MP, USB 2.0
Motic Camera A2, colour, sCMOS, 1/3.1, 2.7µm, 30fps, 2MP, USB 2.0
Motic Camera A2, colour, sCMOS, 1/3.1, 2.7µm, 30fps, 2MP, USB 2.0
