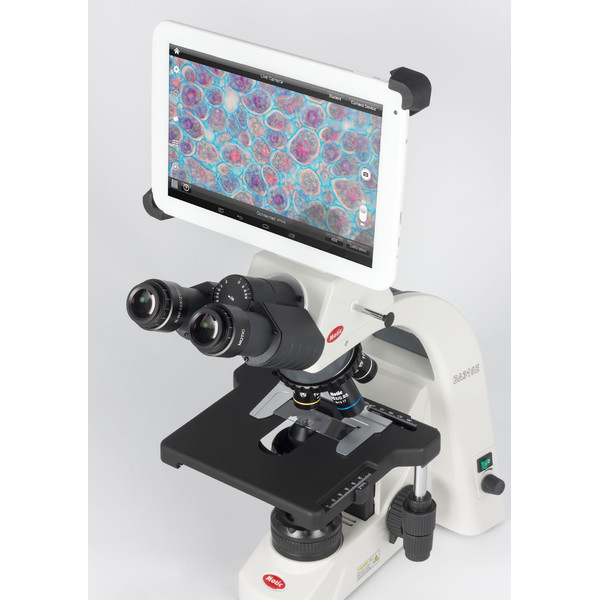

The Motic Tablet models - Moticam BTU8, BTU10 and BTW - open up new dimensions of interactivity in microscopy, helping teachers, students and anyone working with conventional microscopes to display images and share microscopy results with others. Take, edit and share microscope images directly on the microscope with these user-friendly tablet cameras.

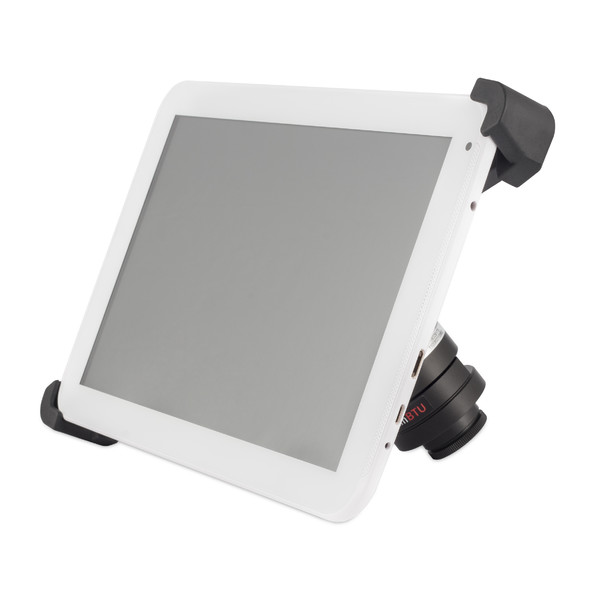

Moticam BTU10 - 10" LCD tablet camera
Specifications
- 10.1" LCD tablet camera
- Attachable C-mount camera
- Capacitive touchscreen
- Sensor: CMOS
- Sensor size: 1/2.5"
- Resolution: 1280x800 pixels (16:10)
- Image capture resolution: 5.0MP
- Video recording resolution: 720p
- Android 4.4 operating system
- 1.6GHz quad core (RK3188 1.6GHz)
- 16 GB internal memory
- 1GB integrated DDR3 memory
- Integrated Li-ion battery (3.7V/6000mAh)
- Screen 10.1" (IPS) 16:10 ratio
- Mini HDMI output
- SD/MMC/TF card slot (up to 32GB)
- Bluetooth 4.0
- Integrated microphone, speaker and headphone jack
- Wi-Fi 802.11b/g/n, Bluetooth 4.0
- MicroSD 4GB included in package
- Pre-installed MotiConnect app
- Motic Images Plus 3.0 software for Windows, OSX and Linux
- Motic (4-point) calibration scale
- Power supply / charger 100-240V (CE certified)
Image Analysis Software Motic Images Plus 3.0
Motic Images Plus for PC is a software suite for live microscopy imaging that aims to be at the same time professional in its features and simple in its operation. It is the result of more than a decade of close cooperation with end-users and professionals around the world.
Our multi-language interface offers several choices for either basic or more advanced image control options, filters and color correction. Measurement tools can be used both on live images as well as on captured ones, and measurement data can be exported at any time for further analysis. Video recording or time lapse capturing are other significant integrated features.
At Motic, we do our best to ensure that our Moticam cameras are compatible with the latest technology available (Windows, MAC, Linux). With our Direct Show and Twain compatibility, the Moticam cameras can also be integrated into third-party application programs.
Motic offers other software packages. Motic Assembly or Motic Multi-focus for Image Stitching and Image Stacking. MoticNet, a multi-user observation and supervision platform that gives you the option to connect up to 100 digital microscopy stations together with the supervision from the teacher's platform. Motic Trace for teaching forensic and first-level evidence processing centers.
