MOTICAM 1080 BMH

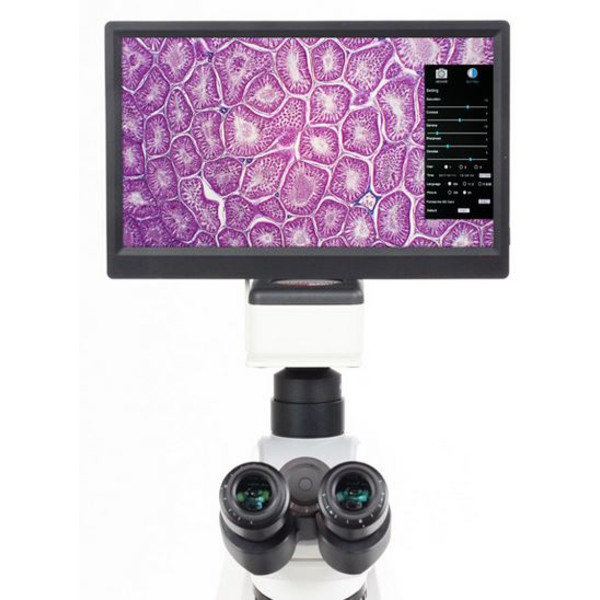

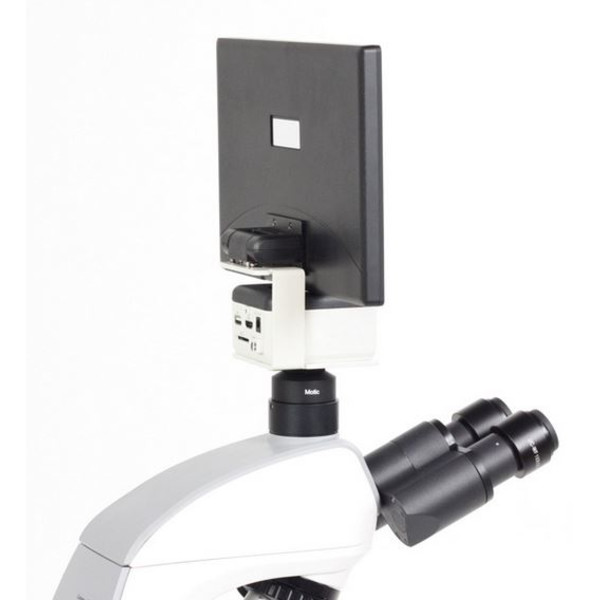

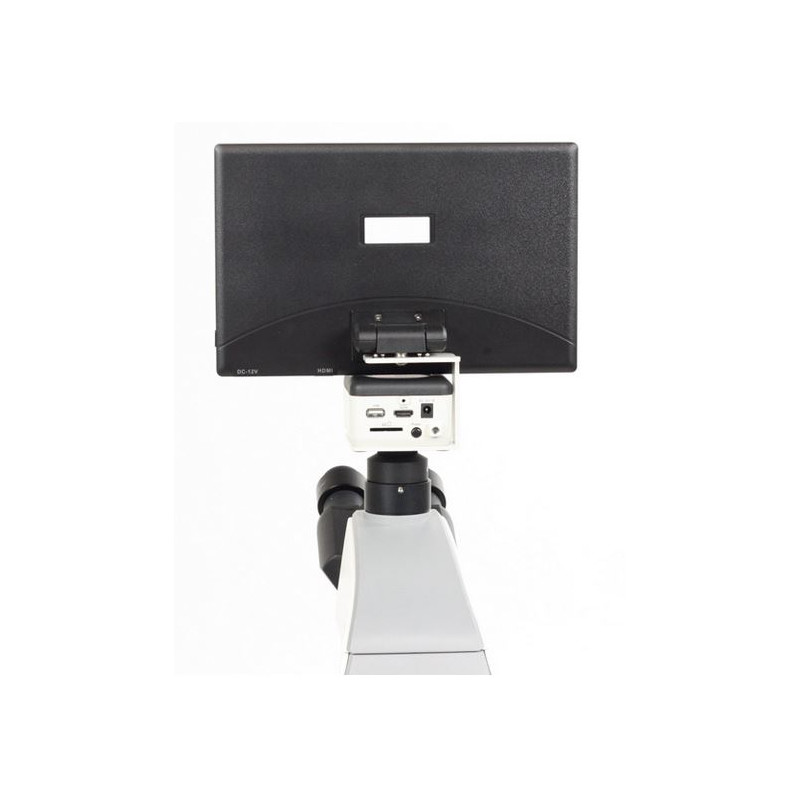

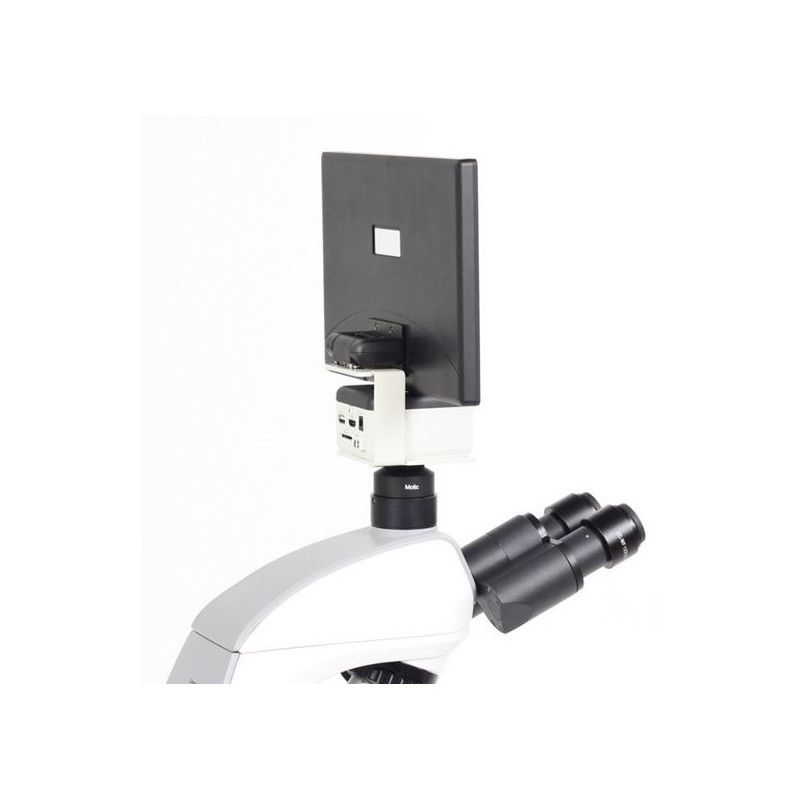

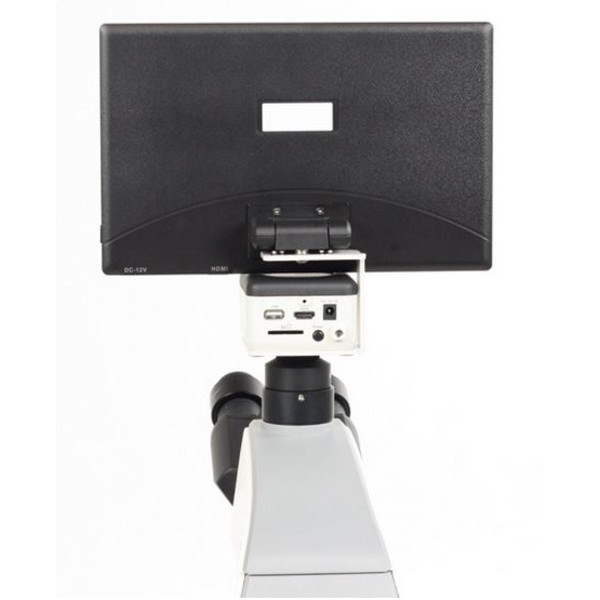

The Moticam 1080 BMH is a microscope camera with HDMI and USB output and impressive 1080p full HD live images with maximum colour fidelity. The alternative USB signal is designed for use of the camera with a PC and the full version of the Motic Images 3.0 software. The camera is adapted via the separate photo output of the microscope. In HDMI mode, the on-board software allows the camera to be controlled via the integrated 11.6" full HD monitor with wireless mouse connected via the camera's USB port.
Specifications Moticam 1080 BMH
Sensor type: CMOS
Sensor format: 1/2.8"
Active sensor area: 5,346 x 3,003 mm
Still image resolution: 8MP (3840x2160 pixels)
Image resolution on SD card: 8MP (3840x2160 pixels)
Video resolution on SD card: 1920x1080p (Full HD)
Live image via USB: 1920x1080 pixels (Full HD)
Live image via HDMI: 1920x1080 (Full HD)
Pixel size: 2.8x2.8μm
Scan mode: Progressive scan
Data transfer: HDMI (1080p), USB 2.0
Max. frame rate (fps): 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps
Exposure time: 0.06ms - 40ms with auto exposure (0.06ms to 999ms with manual exposure)
Operating temperature: -10° to +60° Celsius, non-condensing
Signal-to-noise ratio: 40dB
Dynamicrange: 71dB
Sensitivity: 0.51V (at 1/30 sec)
Card slot: SD card (max. 32GB)
Control buttons: On/Off
Supported instruments: TWAIN and Direct Show drivers
Supported operating systems: Windows XP SP3/Vista/7/8/10 and MAC OSX, Linux
Minimum system requirements: 2GHz dual-core processor, 2GB RAM, minimum 512 MB video memory
Thread: C-mount
Focusable lens: 12 mm
Screen: 11.6" 1920x1080 Pixel Full HD screen with holder
Software: On-board software
Software features: Single image capture, live image with zoom in/out, magnifying glasses, ROI, mirror, rotate, split, freeze, crosshairs, gallery, auto/manual exposure, gain, auto/manual white balance, saturation, contrast, gamma, sharpness, noise reduction, user settings, additional languages (English, Chinese and Japanese), SD card formatting.
Mains voltage: 12V (external power supply)
Scope of delivery: CS ring, focusable lens, 30 mm and 38 mm eyepiece adaptors, USB 2.0 cable, HDMI cable, Motic 4-point calibration scale, macro tube, Motic Images Plus 3.0 for PC/OSX/Linux, universal power supply.
The Full HD Multi-Output camera, the Moticam 1080, is the improved successor of the well-established model Moticam580.
The Moticam 1080 is a stand-alone system works without computer and delivers an impressive 1080 (60P) live image on HDMI screen. Still images or HDMI videos from the microscope can be saved onto its removable SD card. To control image and capture parameters via a powerful onboard software, just connect a wireless mouse to the USB port. It can also be plugged into a Windows, OSX or Linux system through USB if you want work with the new Motic Images Plus 3.0. HDMI and USB signal even can be used to run the camera on HDMI and PC screen in a parallel mode, working with the computer and visualizing the image in a HD screen. With or without computer, thanks to its multi-output configuration the Moticam 1080 is ready to be implemented in your daily workflow.
Moticam 1080 BMH
- Sensor Type: CMOS
- Sensor Size: 1/2.8"
- Capture resolution (on SD-card) - Still Image: 8.0MP (3840 x 2160) / Video: Full HD 1920 x 1080
- Live Display Mode (through USB): 1920 x 1080 (Full HD) @ 30 fps
- Live Display Mode (through HDMI): 1920 x 1080 (Full HD) @ 60 fps
- Data Transfer: HDMI (1080p) and USB 2.0
- Screen: LCD 11,6" Full HD
- On-board software
- Supported OS: Microsoft Windows XP SP3/Vista/7/8/10 and MAC OSX & Linux Minimum Computer Requirements: 2GHz dualcore – RAM memory 2GB – Video memory min. 512 MB
