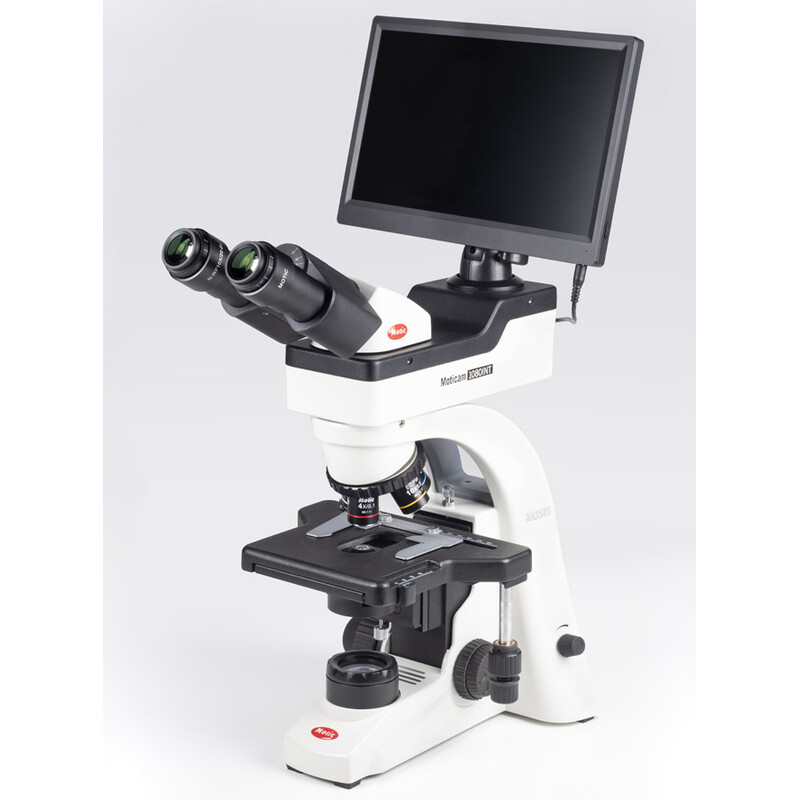

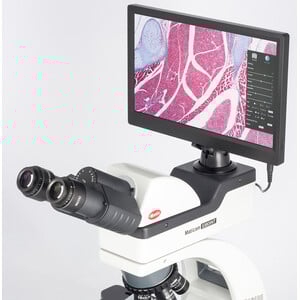

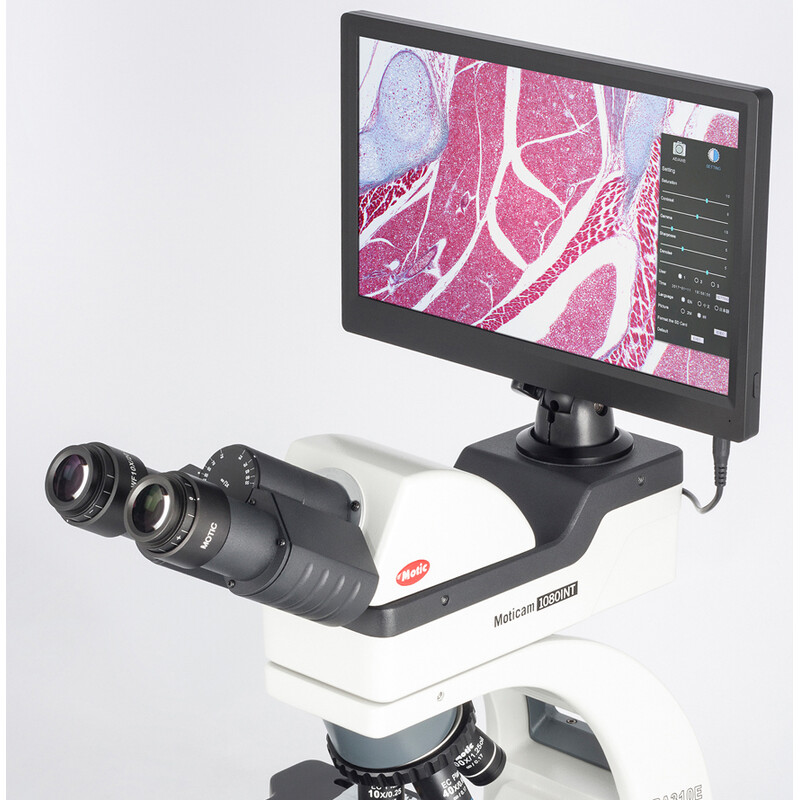

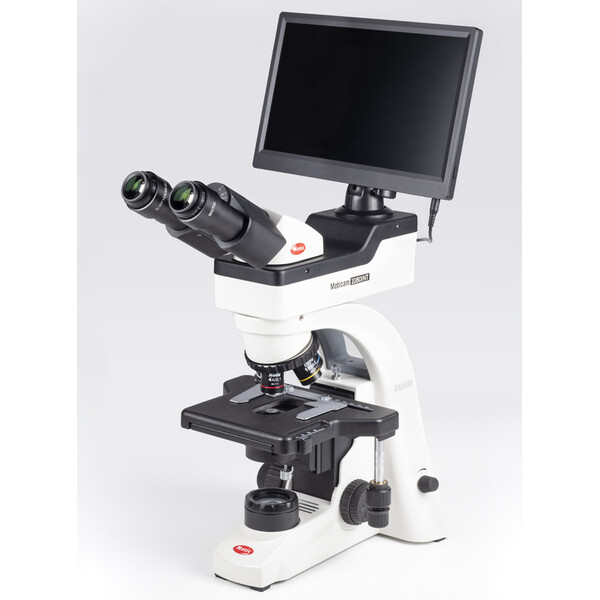

The Moticam 1080 INT is an intermediate multitasking camera for the BA series and delivers impressive, fast 1080p full HD live images with maximum colour fidelity on the integrated LCD screen. The camera does not require a computer thanks to the on-board software, which can be operated using a wireless mouse connected to the USB port and the integrated 11.6" full HD monitor.
Specifications Moticam 1080 INT
Sensor type: CMOS
Sensor format: 1/2.8"
Active sensor area: 5,346 x 3,003 mm
Still image resolution: 8MP (3840x2160 pixels)
Image resolution on SD card: 8MP (3840x2160 pixels)
Video resolution on SD card: 1920x1080p (Full HD)
Live image via USB: 1920x1080 pixels (Full HD)
Live image via HDMI: 1920x1080 (Full HD)
Pixel size: 2.8x2.8μm
Scan mode: Progressive scan

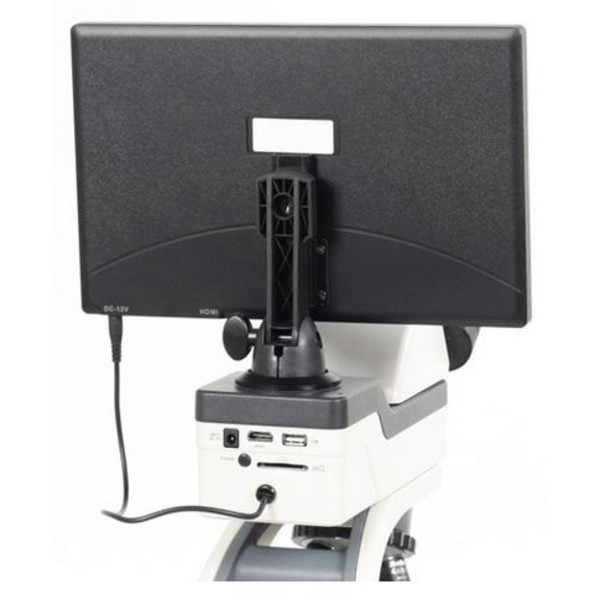

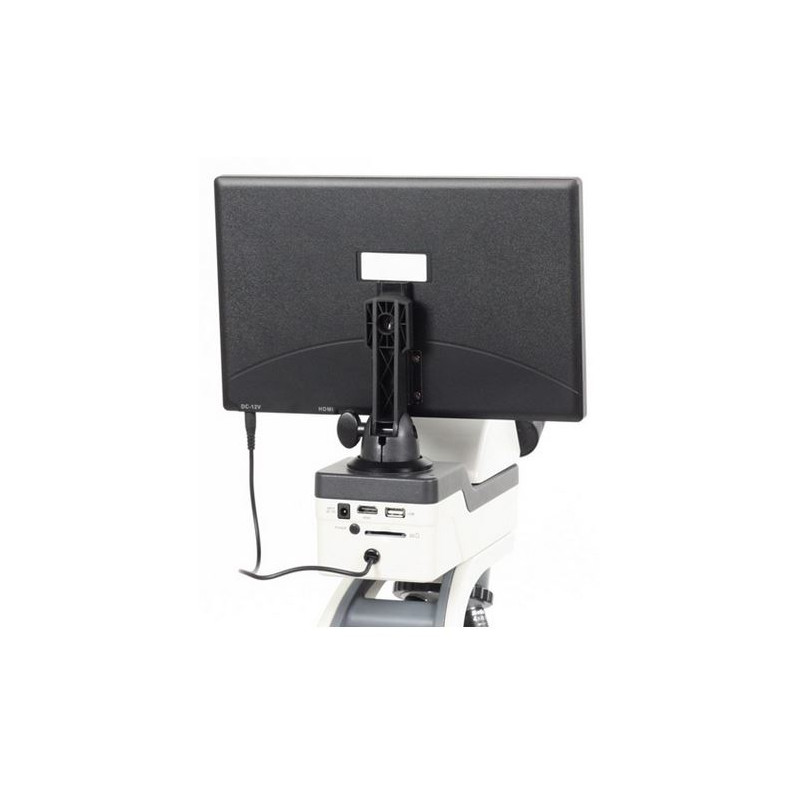

Data transfer: HDMI (1080p), USB 2.0
Max. frame rate (fps) USB: 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps
Exposure time: 0.06 ms - 40 ms with auto exposure (0.06 ms to 999 ms with manual exposure)
Operating temperature: From -10° to +60° Celsius, non-condensing
Signal-to-noise ratio: 40dB
Dynamicrange: 71dB
Sensitivity: 0.51V (at 1/30 sec)
Card slot: SD card (max. 32GB)
Control buttons: On/Off
Supported instruments: TWAIN and Direct Show drivers
Supported operating systems: Windows XP SP3/Vista/7/8/10 and MAC OSX, Linux
Minimum system requirements: 2GHz dual-core processor, 2GB RAM, minimum 512MB video memory
Thread: C-mount
Focusable lens: 12 mm
Screen: 11 .6" 1920x1080 Pixel Full HD screen with holder
Software: On-board software
Software functions: Single image capture, live image with zoom in/out, magnifying glasses, ROI, mirror, rotate, split, freeze, crosshairs, gallery, auto/manual exposure, gain, auto/manual white balance, saturation, contrast, gamma, sharpness, noise reduction, user settings, additional languages (English, Chinese and Japanese), SD card formatting.
Mains voltage: 12V (external power supply)
Scope of delivery: CS ring, focusable lens, 30 mm and 38 mm eyepiece adaptors, USB 2.0 cable, HDMI cable, Motic 4-point calibration scale, macro tube, Motic Images Plus 3.0 for PC/OSX/Linux, universal power supply.

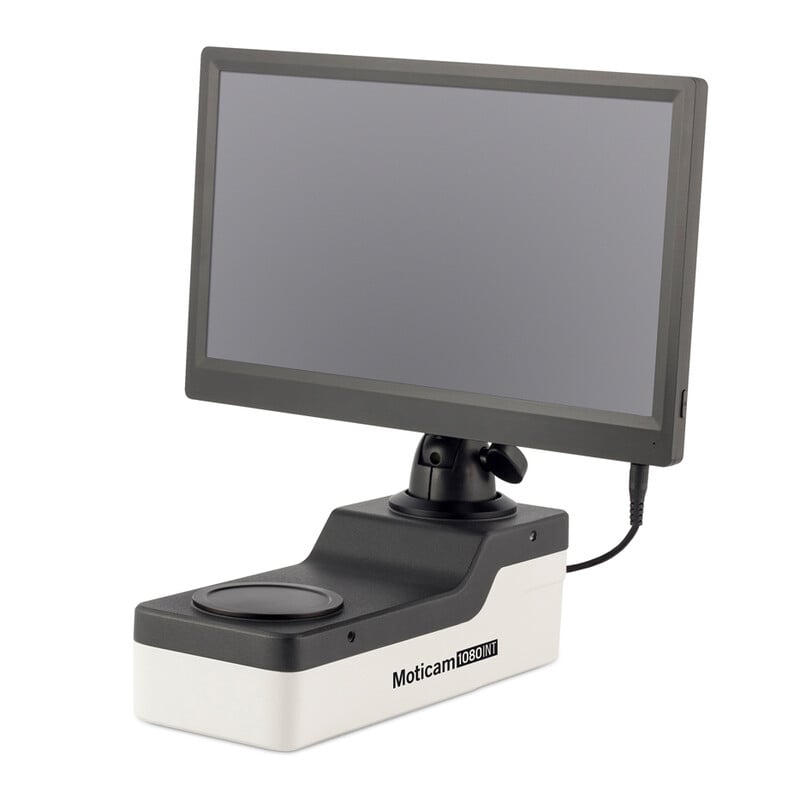

Moticam 1080 INT
- Intermediate digital camera for BA Series
- Sensor Type: CMOS
- Sensor Size: 1/2.8"
- Capture resolution (on SD-card) - Still Image: 8.0MP (3840 x 2160) / Video: Full HD 1920 x 1080
- Live Display Mode (through USB): 1920 x 1080 (Full HD) @ 30 fps
- Live Display Mode (through HDMI): 1920 x 1080 (Full HD) @ 60 fps
- Data Transfer: HDMI (1080p) and USB 2.0
- Screen: LCD 11,6" Full HD
- On-board software
- Supported OS: Microsoft Windows XP SP3/Vista/7/8/10 and MAC OSX & Linux
- Minimum Computer Requirements: 2GHz dualcore – RAM memory 2GB – Video
Specifications Moticam 1080 INT
Sensor type: CMOS
Sensor size: 1/2.8"
Imaging area: 5.346x3.003mm
Capture resolution: 8MP (3840x2160 pixels)
Image capture resolution (On SD-card): 8MP (3840x2160 pixels)
Video capture resolution (On SD-card): 1920x1080p (Full HD)
Live display mode through USB: 1920x1080 pixels (Full HD)
Live display mode through HDMI: 1920x1080 (Full HD)
Pixel size: 2.8x2.8μm
Scan mode: Progressive
Data transfer: HDMI (1080p), USB 2.0
Max. frames per second (fps) USB: 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps
Exposure time: "0.06ms ~ 40ms with Auto Exposure mode, (0.06ms ~ 999ms with Manual Exposure mode)"
Operating temperature: From -10 to +60 Degrees Celsius non condensing
Max. signal to noise ratio: 40dB
Dynamic range: 71dB
Sensitivity: 0.51V (Typical at 1/30 sec)
Slot: SD Card (max 32Gb)
Buttons: On/Off
Supported device: TWAIN and Direct Show Driver
Supported systems: OS Windows XP SP3/Vista/7/8/10 and MAC OSX, Linux
Minimum computer requirements: 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Screen: 11.6" Native 1920x1080 pixels Full HD Screen with Bracket
Software: On-board software
Software Functions: Still image capture, live image record, zoom in & out, magnifier, ROI, mirror, rotation, split, freeze, cross line, gallery, Auto/Manual exposure, gain, target brightness setting, light frequency, Auto/Manual white balance Mode, saturation, contrast, gamma, sharpness, denoise, user settings, system’s time setting, language (English, Chinese and Japanese), format SD card.
Power supply: 12V (External Power supply)
Package includes: USB 2.0 cable, HDMI cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux, universal power supply
