Microscopy > Microscopy accessories > Cameras > Cameras > Motic > Moticam S > Motic Camera S20, colour, sCMOS, 1", 2.4µm, 20MP, USB 3.1
Product no.: 76583

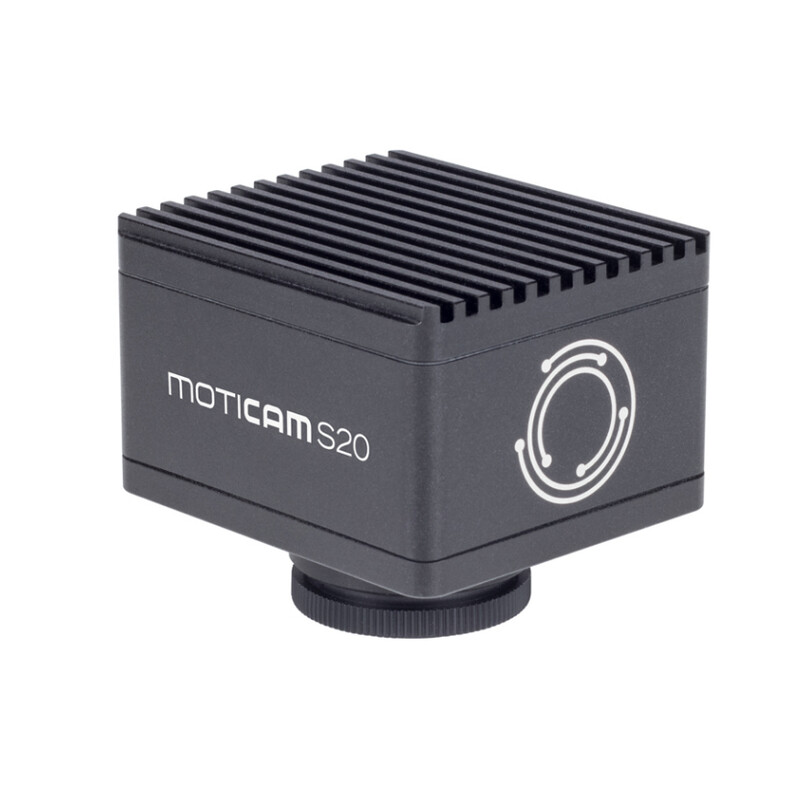

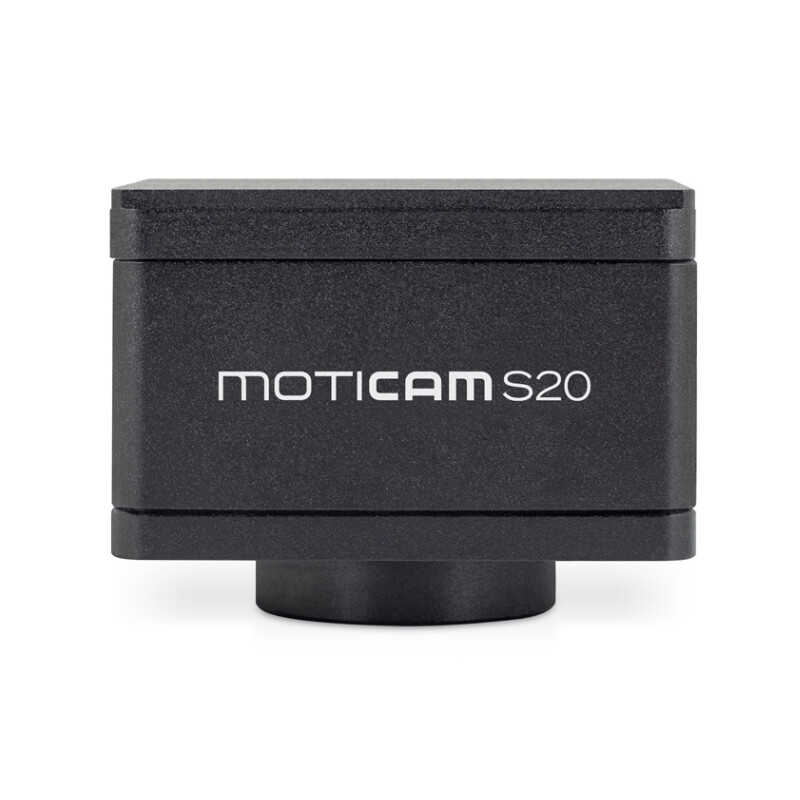

Camera S20, colour, sCMOS, 1", 2.4µm, 20MP, USB 3.1

$ 1,560.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

MOTICAM S SERIES

NEW MOTICAM S SERIES

Motics new sCMOS cameras, designed by German engineers and manufactured by professionals represent an impressive impetus to microscope camera performance. With a member of this product line the door for new application fields opens

wide. The accelerated data readout enables to work on fast phenomena in biology and industry.

MOTIC IMAGES PLUS 3.0 SOFTWARE

Our well-known Motic Images software, always with a cost-free upgrade option is included in all camera packages and enables to view images at maximum quality, capture, edit, measure and report the result... all these features are ready to

work on your PC or laptop.

MAXIMUM DETAIL

If you are looking for maximum resolution for your monitor or printouts, the Moticam S20 is the right choice for you. With a maximum frame rate of 18 frames per second, the Moticam S20 can handle large data volumes when recording at the highest resolution. When it comes to the smallest details, the Moticam S20 is the solution for you.

MOTICAM S20

Sensor type: sCMOS

Sensor size: 1"

Imaging area: 15.86 mm (diagonal)

Number of pixels: 20MP

Live display mode via USB: 5472x3648, 2736x1824 pixels

Pixel size: 2.4x2.4μm

Scan mode: Progressive

Shutter mode: Rolling shutter

Data transfer: USB 3.1

Max. frame rate (fps): 5472x3648 @ 18fps, 2736x1824 @ 50fps

Exposure time:15 μsec - 2 sec

Operating temperature: From -10 to +60 degrees Celsius, non-condensing

Sensitivity: 461mV(G) @ 1/30 sec

Supported instruments: TWAIN, SDK and DirectShow Driver

Supported operating systems: Windows 7/8/10, MAC OSX, Linux or higher

Minimum computer requirements: 2GHz dual core - RAM memory 2GB - Video memory min. 512 MB

Lensconnection: C-mount

Software: Motic Images Plus 3.0 for Windows, OSX and Linux

Software features: Still image and video recording, live and still image measurement, image settings, white balance, automatic and manual exposure, individual lens calibration system

Power supply: 5V (from USB port)

Scope of delivery: CS ring adapter, 3.1 USB cable, Motic 4-position calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux

Specifications

Capacity


Size of chip (mm)
1"
Megapixel
20
Resolution Photograph (Pixel)
5472x3648
Extendable storage
-
LCD screen
-
Resolution video (Pixel)
2736x1824 (50fps)
Interface
USB3.1
Power supply
5V (USB3.1)
Video function
yes
Sensitivity to light (Lux)
461mV(G)@130sec

Camera


Peltier cooling
no
Colour camera
yes
Image transmission
USB 3.0
sensor
CMOS
Pixel size
2.4
frame rate (fps)
18
Shutter
Rolling Shutter
Min. exposure time (ms)
0.015
Max. exposure time (ms)
2000
Software
Motic Images Plus 3.0
Supported operating systems
Win 7/8/10 Mac OS Linux

General


Colour
black
Series
Moticam S

Miscellaneous


supplier product number
1100600101401

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
Motic Camera S20, colour, sCMOS, 1", 2.4µm, 20MP, USB 3.1
Motic Camera S20, colour, sCMOS, 1", 2.4µm, 20MP, USB 3.1
