Microscopy > Microscopy accessories > Cameras > Cameras > Nikon > DS > Nikon Camera DS-1000, colour, CMOS, 1/2.8, 2MP, HDMI
Product no.: 69434

Camera DS-1000, colour, CMOS, 1/2.8, 2MP, HDMI

$ 2,360.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

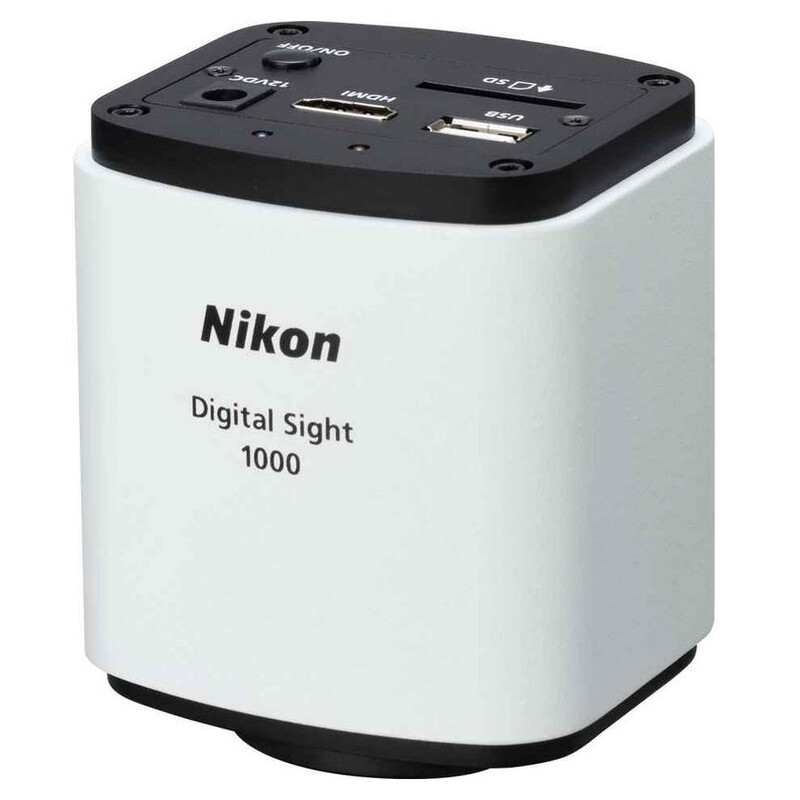

DS-1000

C-mount colour camera: Compact, powerful and excellent value for money

The new Digital Sight 1000 is a cost-effective colour camera that allows high-resolution microscope images to be displayed directly on a Full HD display without a PC. Like the Digital Sight DS-Fi3 and DS-Ri2 cameras, the Digital Sight 1000 can also be connected to a tablet PC to save space and simplify operation.

Full HD imaging

Equipped with a 2-megapixel CMOS image sensor, the Digital Sight 1000 can display, capture and store high-resolution 1920 x 1080 Pixel images at 30 frames per second.

Standalone mode

The Digital Sight 1000 can be connected directly to a high-resolution Full HD display and a mouse. No PC is required, saving space on the laboratory or workbench. Recorded images and videos can be stored directly on an SD card inserted into the camera. Scale bars can be easily displayed and simple measurements such as areas and distances between two points can be taken.

Digital Sight 1000

  • Image sensor: 1/2.8 inch colour CMOS image sensor
  • Size: 5.57 x 3.13 mm
  • Recordable pixels: 1920 x 1080 pixels
  • Lens mount: C-mount
  • ISO sensitivity Standard: equivalent to ISO 150
  • Live display: 1920 x 1080 pixels: 30fps
  • Exposure time: 1m sec~10 sec
  • Photometry mode  Average photometry:1920 × 1080 pixels (all area)
  • Exposure control: Automatic exposure, Manual exposure
  • Exposure correction: Available
  • Interface: USB2.0 (connect with PC or USB mouse) × 1, HDMI × 1, SD card slot x1 (SD/SDHC cards are available)
  • Power supply: AC100~240V 50Hz/60Hz
  • Power consumption: 3W
  • Dimensions: 76 (W) x 69 (D) x 91 (H) mm
  • Weight: 450g (approx.)
  • Operating environment: 0-40°C, 60% RH max. (without condensation)

Specifications

Capacity


Size of chip (mm)
1/2.8"
Megapixel
2
Image format
5,57x3,13mm
Resolution Photograph (Pixel)
1920x1080
Extendable storage
-
Zoom (digital)
-
Optical zoom
-
LCD screen
-
Resolution video (Pixel)
1920x1080
TV output
-
Interface
USB 2.0
Video function
yes
Sensitivity to light (Lux)
ISO150

Camera


Megapixel
2
Peltier cooling
no
Colour camera
yes
Image transmission
HDMI
Size of chip (″)
1/2.8
sensor
CMOS
Resolution Photograph (Pixel)
1920x1080
frame rate (fps)
30
Shutter
Rolling Shutter
Min. exposure time (ms)
1
Max. exposure time (ms)
10000
Sensitivity (mV/s)
ISO150
adapter required
0.5x
Software
NIS-Elements
Supported operating systems
Win 7/8/10

General


Colour
white
Weight (g)
450
Length (mm)
76
Width (mm)
69
Height (mm)
91
Series
DS

Miscellaneous


supplier product number
MQA18000
