DS-Ri2, Colour, 16.25MP, USB3.0, CMOS, F-mount
DS-Ri2
- Image sensor Nikon FX format, colour CMOS sensor / Size: 36.0x23.9mm
- Effective 16.25 megapixels
- Recordable pixels 4908x3264 pixels (full-pixel), 1636x1088 pixels (3x3 pixel averaging)
- ISO sensitivity (recommended exposure index) Standard: equivalent to ISO 200 (selectable from ISO200 to 12800 equivalent)
- Live display mode Full-pixel 4908x3264 pixels (max 6fps) / 3x3 pixel averaging 1636x1088 (max 45fps)
- Lens mount F mount
- Exposure time 100 µsec to 120 sec
- Image format BMP, TIFF, JPEG, etc., selectable in NIS-Elements
- Interface USB3.0 (computer control connection) x1, external sync input/output x1
- Power supply AC100-240V 50/60Hz
- Power consumption 13W

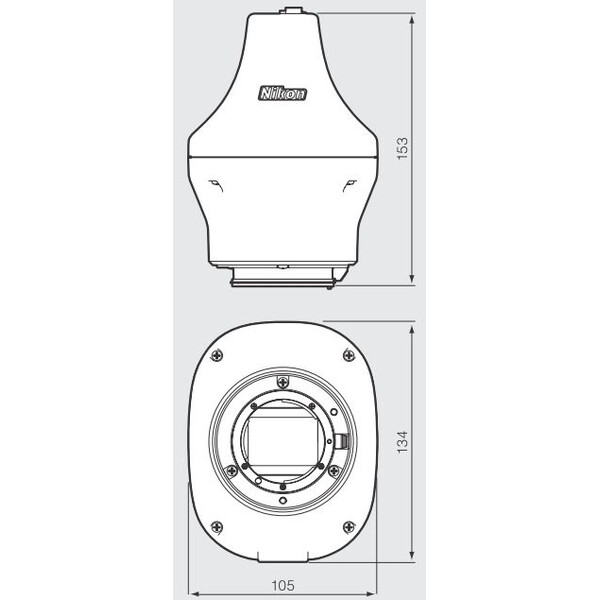

- Dimensions 105 (W) x 134 (D) x 153 (H) mm
- Weight 1200g
- Operating environment 0-40°C, 60% RH max. (without condensation)

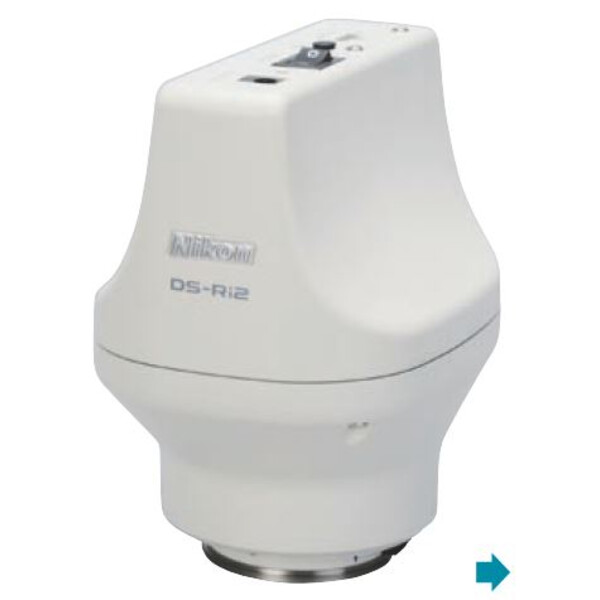

Ds-Ri2
Fast, one-shot capture of ultra-high resolution color images.
16.25 megapixels (not interpolated) and accurate color rendition are features that make the DS-Ri2 an excellent choice for recreating color images as the eye sees them.

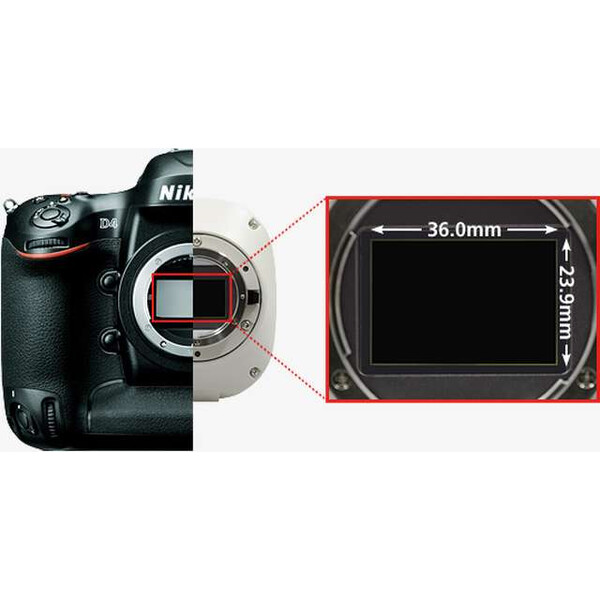

Large format CMOS sensors
Nikon manufactures CMOS sensors and imaging technologies for professional D-SLR cameras, which they have now optimized for microscopy.
High-resolution images
16.25-megapixel CMOS sensors for astonishing image quality
The DS-Ri2 makes possible one-shot instantaneous capture and fast storage of images with a resolution as high as 4908 x 3264 pixels, without pixel shifting or pixel stepping.
This pixel density is ideally suited for the photomicrography of ultra-fine structures or patterns in biological or industrial samples, at low or high magnifications.
Photograph the natural colors seen through the microscope
Nikon is a leader in development of algorithms for reproducing color just as the eye sees it.
The DS-Ri2’s new image processing engine is based on extensive data accumulated over many years of developing color digital microscope cameras, resulting in the perfect reproduction of the colors your eyes see in the microscope.

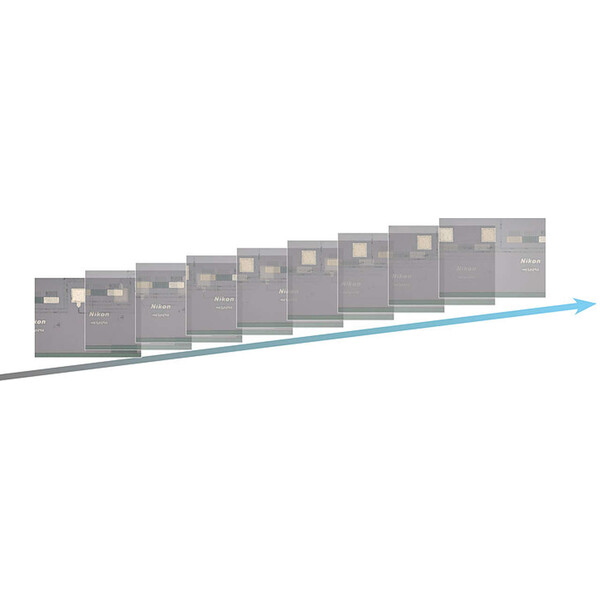

High-speed live display
High-speed display, even of supra-HDTV-class live images
The DS-Ri2 can display 4908 x 3264 pixel (full-pixel) images at 6 fps, or 1636 x 1088 pixel (3 x 3 pixel averaging) images at 45 fps. This fast live frame rate makes fine focusing easy to perform.
High sensitivity, low noise
Fluorescent color image capture with high signal-to-noise ratio
Sensitivity settings that span the range from ISO200 to ISO12800 allow for the capture of vivid fluorescent color images.
