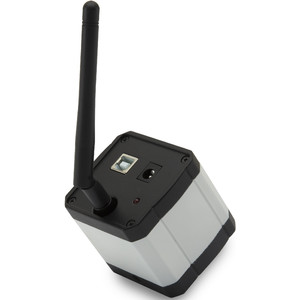

Optikam WiFi - 4083.WiFi C and C-Short mount, Eyepieces Camera
- Sensor size 1/2.5"
- PC camera resolution 5 megapixels
- WI-FI camera resolution 2 megapixels
- Signal output USB 2.0, WiFi
- Audio signal NO
- Sensor technology Micron CMOS
- Image format 4\3
- Full image size 2592 x 1944
- Pixel size 2.2 x 2.2 micron
- USB frame rate Full resolution 3 frames/sec: 2592 x 1944
- USB frame rate other resolutions 11 frames/sec: 640 x 480, 8 frames/sec: 1024 x 768
- WiFi frame rate low resolution 2 frames/sec: 640 x 480 with 10 users
- WiFi frame rate other resolutions 1 frame/sec: 1024 x 768 with 10 users, 1 frame/3sec: 1600 x 1200 with 10 users
- WiFi speed 802.11n 150Mbps
- WiFi signal from the camera
- WiFi router requirements NO
- WiFi password NO
- WiFi antenna 2.4GHz 5DB
- WiFi signal ready in approx. 40 seconds after first power-up
- Ethernet port NO
- Sensitivity 0.53 V/Lux-Second at 550nm
- Signal/noise ratio 40.5 dB
- Dynamic range >60 dB
- Maximum exposure time Automatic
- ADC conversion 8 BIT
- Color depth 8 BIT
- On-board memory NO
- External memory card NO
- External camera power 5 V 2000mA
- Cooling system NO
- External cooling power NO
- On camera case IR filter 650 nm
- Automatic white balance Auto / Man
- Automatic gain control Auto / Man
- Automatic backlight control Auto / Manual
- Exposure control Auto / Manual
- C-mount connection YES, available
- CS-mount connection YES, ready

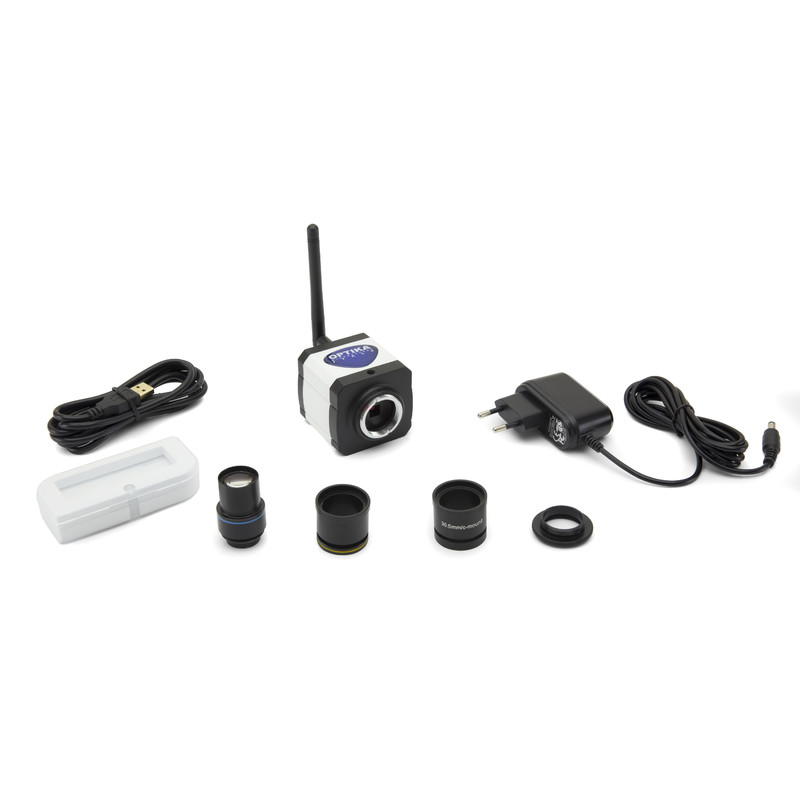

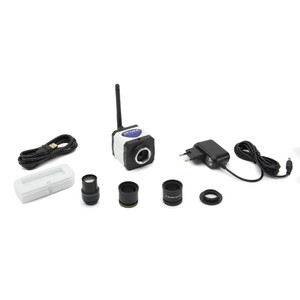

Scope of delivery
- CS mount to C-mount ring SI
- Optical adaptors 0.45x (for 23 mm eyepiece tube)
- Adaptors for binocular and monocular microscopes 30 and 30.5 mm diameter
- Calibration slide YES
- Always included 1.8 m USB cable, power supply, installation manual, CD-ROM
Software specification
- WiFi system requirements Windows tablet, Android tablet, iOS tablet, iOS phone, Android phone, Windows phone, BlackBerry
- WiFi users allowed
- 10 users: good live view speed,
- 20 users: slow live view speed,
- 30 users: very slow live view speed
- WiFi available APP Via browser: NO APP is needed
- WiFi Additional available APP For IOS and Android
- WiFi capture features Image size
- WiFi control parameters Automatic
- USB system requirements Windows Vista / Win7 / Win8 / Win10 / 32-64 bit, USB 2.0
- USB Supplied software Optika Vision Lite
- USB driver types No driver (Microsoft driver)
- USB capture features Continuous auto white balance, continuous auto exposure, image size, image capture, compressed video capture
- USB control parameters Brightness, contrast, tonality, saturation, sharpness, gamma, white balance, background
- Operating temperature +0 to +50°C
- Storage temperature -10 up to +50°C
- Relative humidity up to 80%
- Dimensions 7 x 7 cm
- Height: 4 cm
- Height with optical adaptor: 12 cm
- Weight 80 g
