Optika TB-3WA

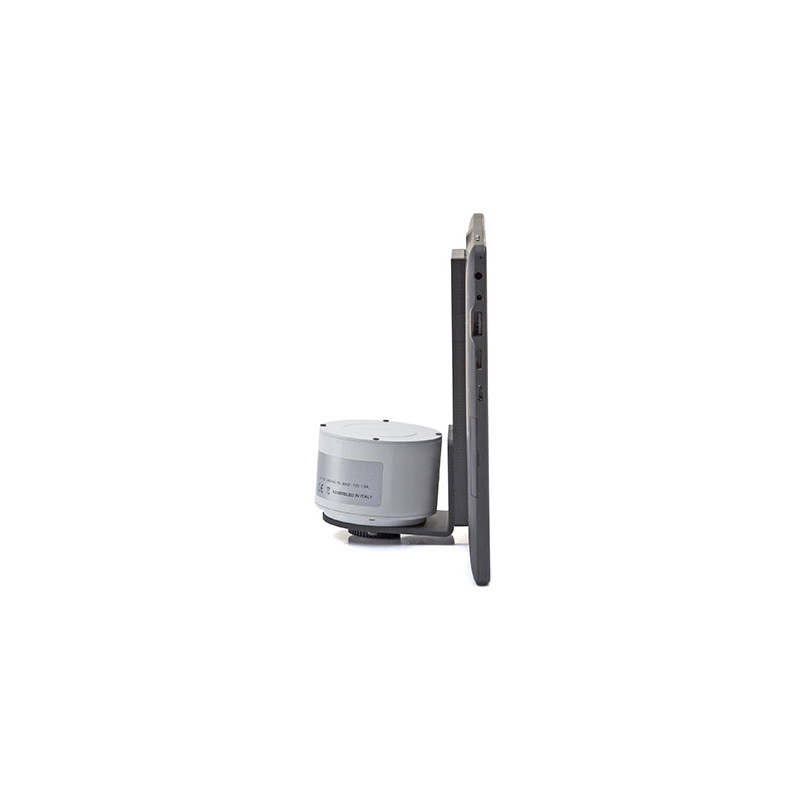

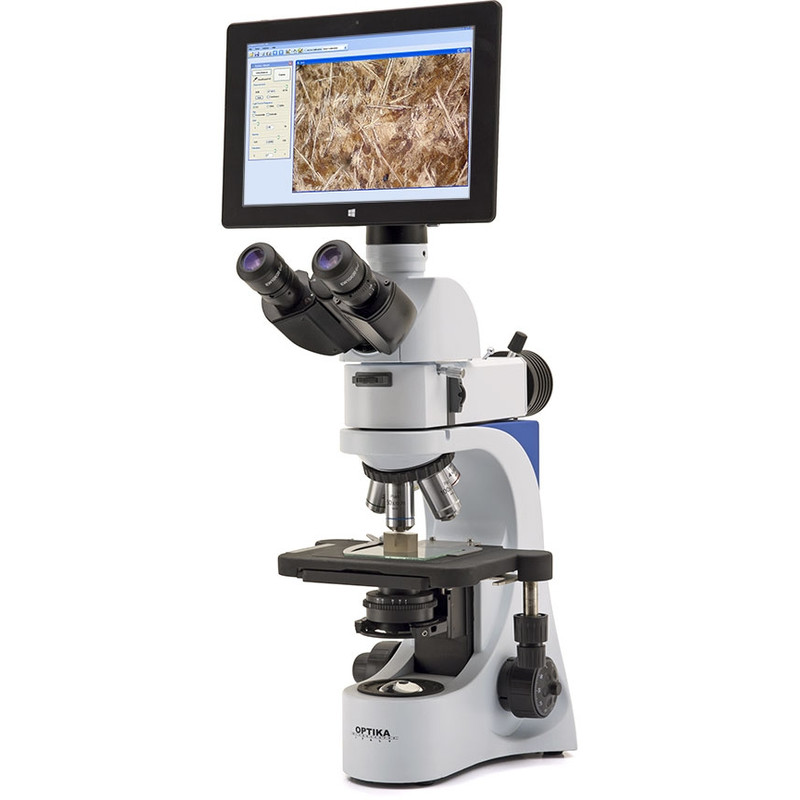

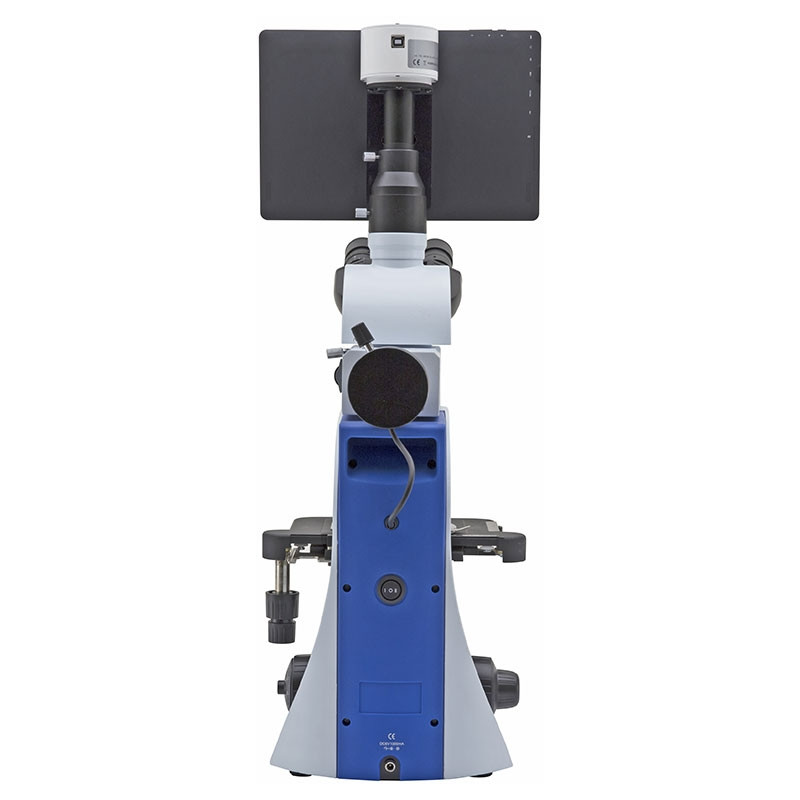

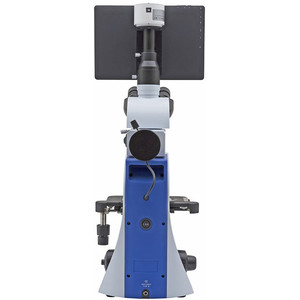

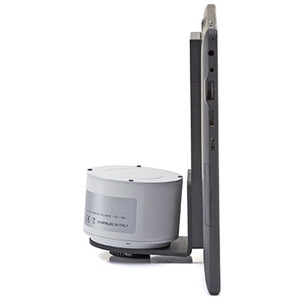

The Optika TB-3WA is a compact digital imaging solution featuring a 10.1″ touchscreen, a Windows 11 system and an external 3.1 MP CMOS camera. It is ideal for digital microscopy in classrooms, training sessions, laboratory settings and discussion groups where microscopy images need to be displayed quickly, conveniently and clearly.

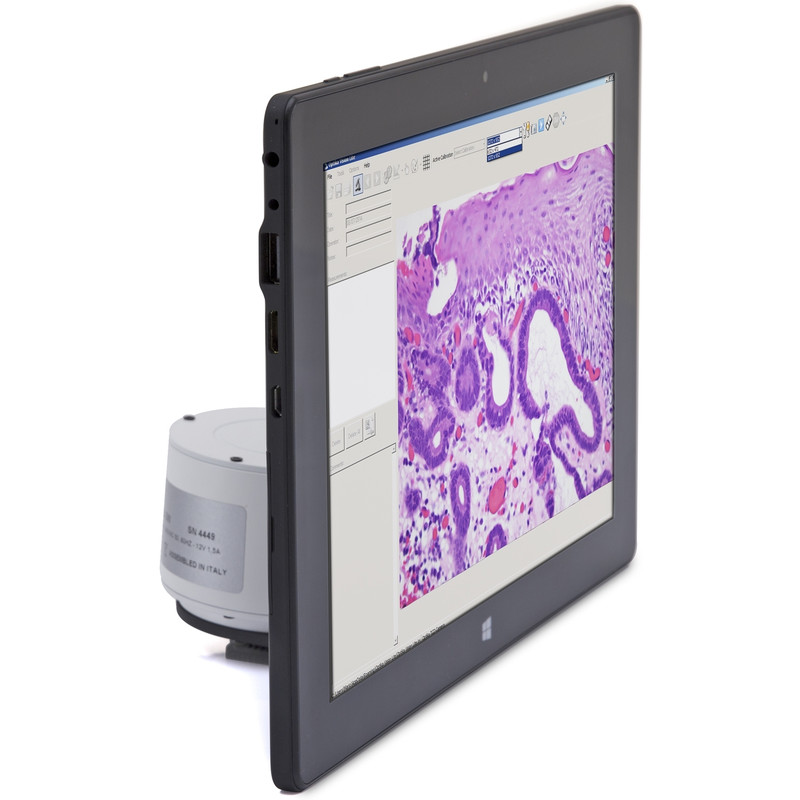

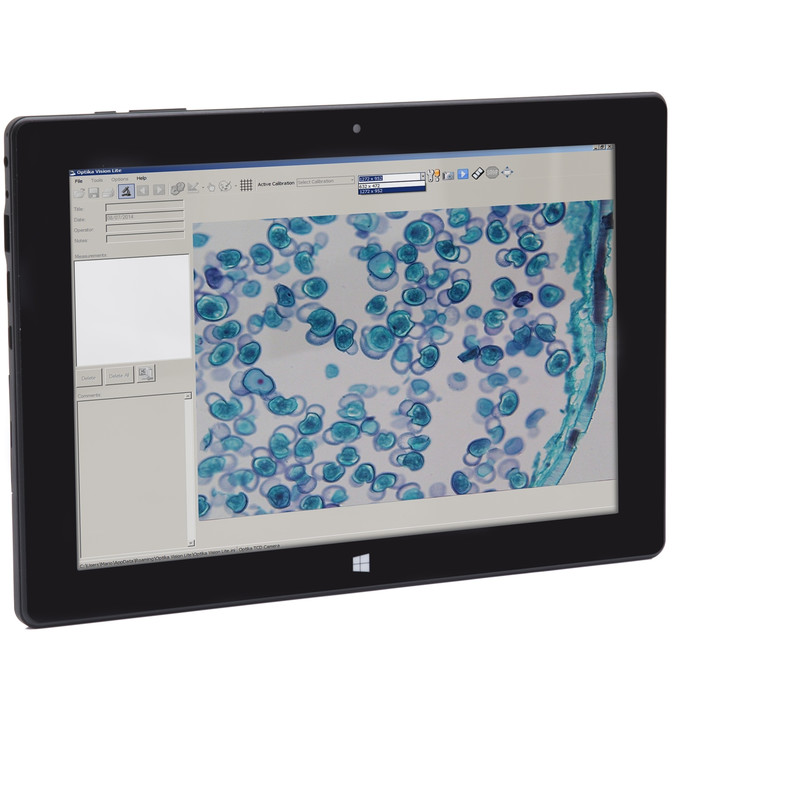

The TB-3WA combines a high-performance display unit with an integrated Windows 11 mini-PC and an external microscope camera. Images can be viewed, controlled and further processed directly via the touchscreen using the Optika ProView software. This creates a modern, space-saving workstation for digital microscopy without the need for a separate PC.
Thanks to the 360° swivel and tilt mounting, the screen can be flexibly positioned. This is particularly useful for presentations, in the classroom or during group discussions at the microscope. The display unit is detachable and can also be used on the move if required.
The external 3.1 MP CMOS camera delivers clear colour images with a resolution of 2048 × 1536 pixels. Via the c-mount connection and the appropriate adaptors, it can be used flexibly with compatible microscopes. At the same time, the system supports the parallel connection of the camera and power supply, which facilitates longer working sessions in everyday laboratory or school use.
Technical highlights
- 10.1″ touchscreen with 1280 × 800 Pixels
- Windows 11 operating system
- Intel Core M3-8100Y processor
- 12 GB DDR3 RAM
- 128 GB SATA storage
- External 3.1 MP CMOS camera C-B3A
- Camera resolution: 2048 × 1536 Pixels
- USB 2.0 camera connection
- c-mount connector
- Wi-Fi 2.4 GHz/5 GHz and Bluetooth 5.0
- Ports: USB-A 3.0, 2 × USB-C, headphone jack, Micro-HDMI
Applications
The Optika TB-3WA is particularly suitable for schools, universities, training centres, laboratories and demonstration workstations where microscopy images are to be displayed, discussed and documented digitally.
Contents
- Optika TB-3WA Digital Imaging Unit with 10.1″ touchscreen and Windows 11
- External C-B3A 3.1 MP CMOS camera
- C-mount projection lens / 0.35× optical adaptor for 23 mm eyepiece tube
- Calibration slide
- USB-B to USB-A cable, 0.5 m
- OPTIKA ProView software for Windows as a free download
- Note: Keyboard sold separately
