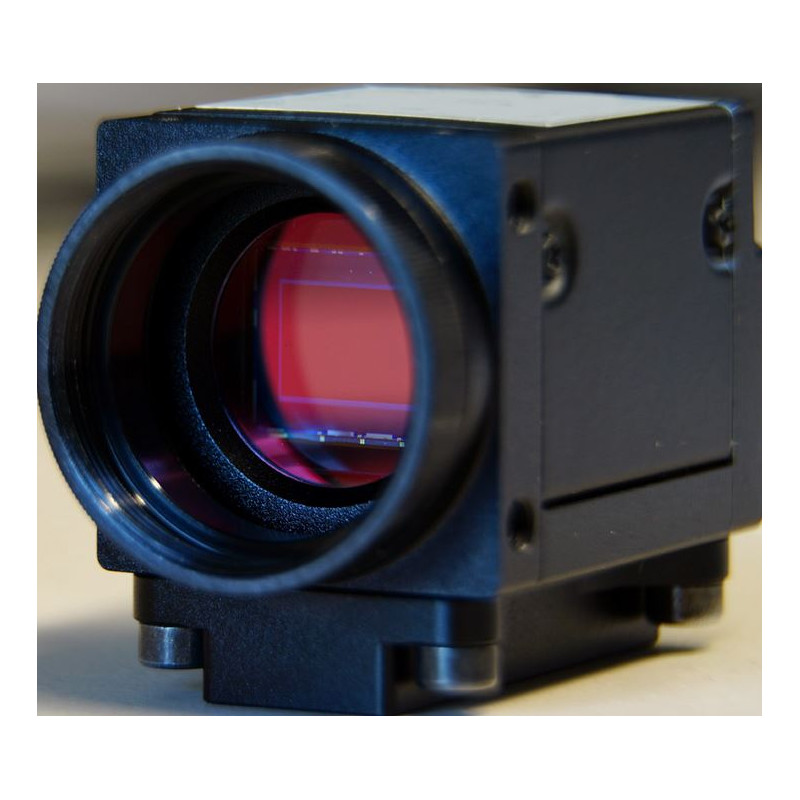

Dokucam Dark Field 2.3MP 1/1.2" USB3 incl. software and adaptors
Whether for documentation, training or simply to make your work easier, with a digital camera you have a razor-sharp live image on your screen at all times and can conveniently control all camera parameters via software. With a frame rate of over 50 frames per second at full HD resolution, this camera is particularly impressive for the highest quality live image display, especially in applications where light reserves are limited, such as dark field or, even more so, ultra-dark field applications.
Without additional adaptors, it fits perfectly with all modular ZEISS microscopes with 1.0x adaptation and C-mount connection.v=dV7QVdSPLl8
Specifications:
Maximum resolution: 1920 x 1200, 2.3 MP
Frame rate: 54 frames/s
Sensor: CMOS, 1/1.2", diagonal 13.4 mm, global shutter
Pixel size: 5.8 x 5.8 µm
Dynamic range / digitisation: 12 bits
Gain: up to 48dB
Exposure time: 20 µs to 4 s
Interface: USB 3.0
Optical interface: C/CS mount (without lens)
Weight: 65 g
Dimensions: 29 x 29 x 43 mm
Scope of delivery:
Windows evaluation software
- PL Capture (including live image, image saving, video recording)
- PL Measure (measurement functions)
- PL Fullscreen Presenter (full-screen display for presentations and training courses)
DirectShow-compatible drivers, allowing the camera to be used in various other applications, such as
- Debut Video Capture
- Di-Li Grab & Measure
- Microsoft Skype
- OBS Studio
- VirtualDub
USB3.0 cable
Adaptor 60N-C 1.0x suitable (e.g. for ZEISS Stemi 305, 508, Axio Lab A1 and Axio Scope A1 microscopes)
