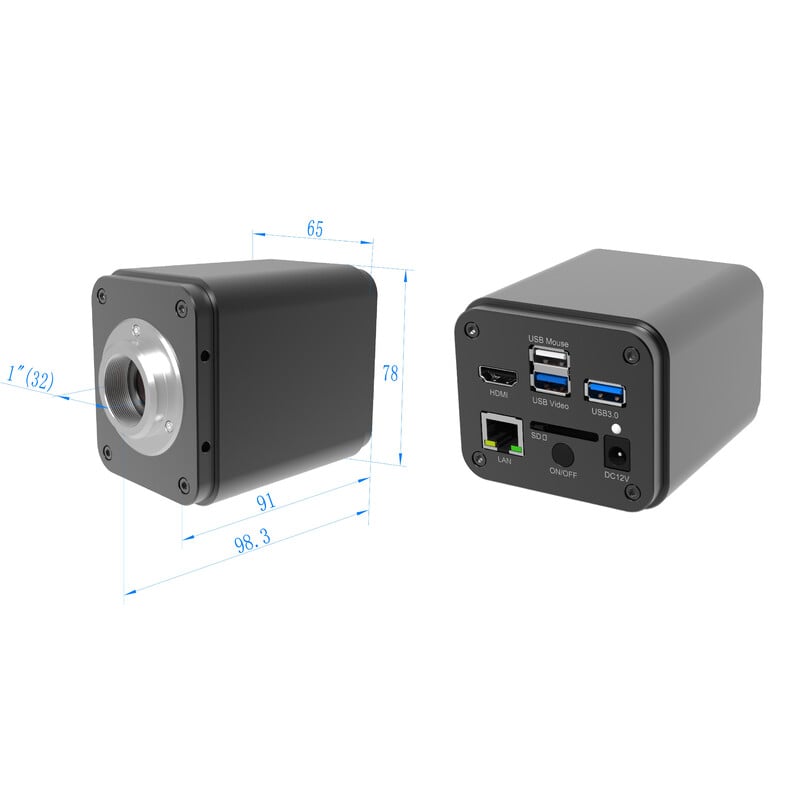

X8CAM4K Series
CMOS cameras in the X8CAM4K series are equipped with HDMI/network/USB and other optionally available data outputs. They feature high resolution, high frame rates and excellent image quality, making them ideal for professional applications that require extremely high detail and colour reproduction. The basic features are listed below:
- Back-illuminated CMOS sensor from Sony with large target area
- With 10-bit ISP processing, it offers better colour reproduction, remarkable sharpness and 3D noise reduction effects, as well as more accurate ROI white balance
- 4K HDMI/NETWORK/USB multiple synchronously usable video outputs
- Automatic switching between 4K and 1080P depending on monitor resolution.
- SD card/USB stick can be used to store recorded images and videos: stand-alone system.
- Supports recording and displaying images in RAW format.
- Supports automatic uploading of images to the server via the network.
- Supports USB voice control module, which enables real-time control of the camera via voice commands for taking photos, recording videos, freezing and other operations.
- Offers real-time video EDF function and real-time video WDR output function.
- Provides real-time stitching function to obtain higher quality images through real-time processing.
- Provides two sets of standard ISP parameters for upright microscopes and inverted microscopes or stereo microscopes.
- New user interface, the browsing interface provides comprehensive file editing functions, image-to-image comparison, image-to-real-time video comparison, multi-image EDF function, multi-image stitch function
- Embedded XCamView for camera control and image processing, supports automatic edge detection and measurement functions
- The text input field supports Chinese and English language input
- ToupView/ToupLite software for PCiOS/Android applications for smartphones or tablets

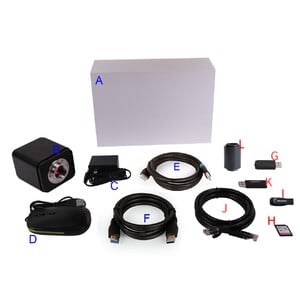

Standard Packing List
A Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.7Kg/ box)
B X8CAM4K Camera
C Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC
European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC
EMI standard: FCC Part 15 Subpart B
EMS standard: EN61000-4-2,3,4,5,6
D USB Mouse
E HDMI2.0 Cable
F USB3.0 A male to A male gold-plated connectors cable /1.5m
Optional Accessory
G Voice Control Module
H SD Card(16G or above; Speed: class 10)
I USB flash drive(USB3.0)
J Ethernet cable
K USB WiFi adapter (Shape will vary with different models)

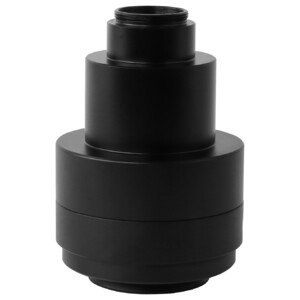

L ToupTek 1.2/1.5X Microscope Adapter (For X8CAM4K22MPA)
