ZEISS Axiocam Family
In contrast to digital cameras for photography or industrial inspection, many aspects of the microscope cameras are optimized to meet specific requirements of applications in science, research and documentation. As each application has very specific requirements, there is a wide range of different digital camera models to choose from. Different pixel sizes, for example, regulate camera sensitivity and spatial resolution. Lower pixel count enables higher frame rates and larger sensors offer better coverage of the field of view.

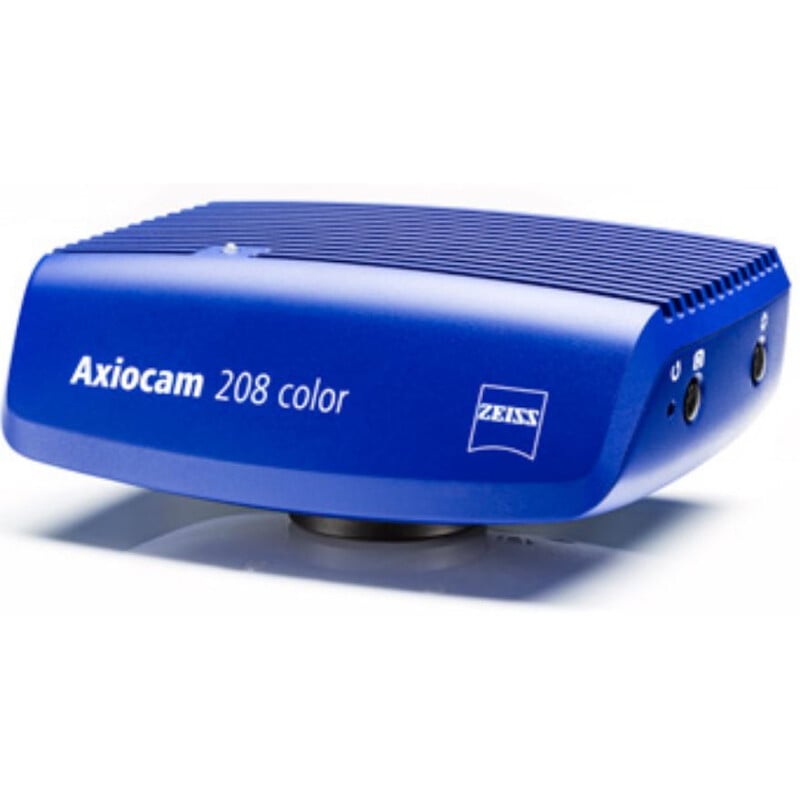

ZEISS Axiocam 208 colour (426570-9001-000)
Your fast 4K microscope camera for smart digital documentation
The Axiocam 208 colour: your smart, versatile 8-megapixel colour microscope camera for training, documentation and routine applications. This CMOS camera delivers crisp, detailed real-time images with high colour fidelity at full 4K resolution with an outstanding 30 frames per second. Choose between three operating modes:
1. In stand-alone mode, you don't need a PC to capture microscope images. The camera automatically adjusts brightness and white balance and offers live imaging features such as sharpening, noise reduction and HDR. Digital documentation of your sample has never been easier.
2. Alternatively, you can connect the CMOS camera via USB or a network and then control it wirelessly using the easy-to-use Labscope imaging app. Since multiple cameras can be connected to the network, the Axiocam 208 color is the ideal solution for applications in digital classrooms and networked laboratories.
3. You can also use the powerful ZEN image processing software with your Axiocam 208 colour.
Axiocam 208 color is equipped with a TWAIN driver that provides basic camera functions. It enables secure image data transfer to TWAIN-compatible third-party software solutions, which are commonly used in routine laboratories. When the camera is connected to Axiolab 5 or Axioscope 5, the live image is automatically scaled.
In short: With the Axiocam 208 colour, you are perfectly equipped for a wide range of applications.
Microscopy Camera Axiocam 208 color Most versatile color camera for education, documentation and routine applications with stand-alone capability, USB3.0 and Ethernet connectivity with 64bit driver software for: ZEN (blue and core) and Labscope.
- Number of Pixel: 3840 (H) x 2160 (V) = 8.3MP, Ultra HD (4K)
- Selectable Resolution: 3840 x 2160 = Ultra HD (4K) and 1920 x 1080 = Full HD (1080p)
- Pixel size: 1.85 µm x 1.85 µm
- Effective Area: 7.1 mm x 4.0 mm, equivalent to 1/2.1'' (8.1 mm diagonal)

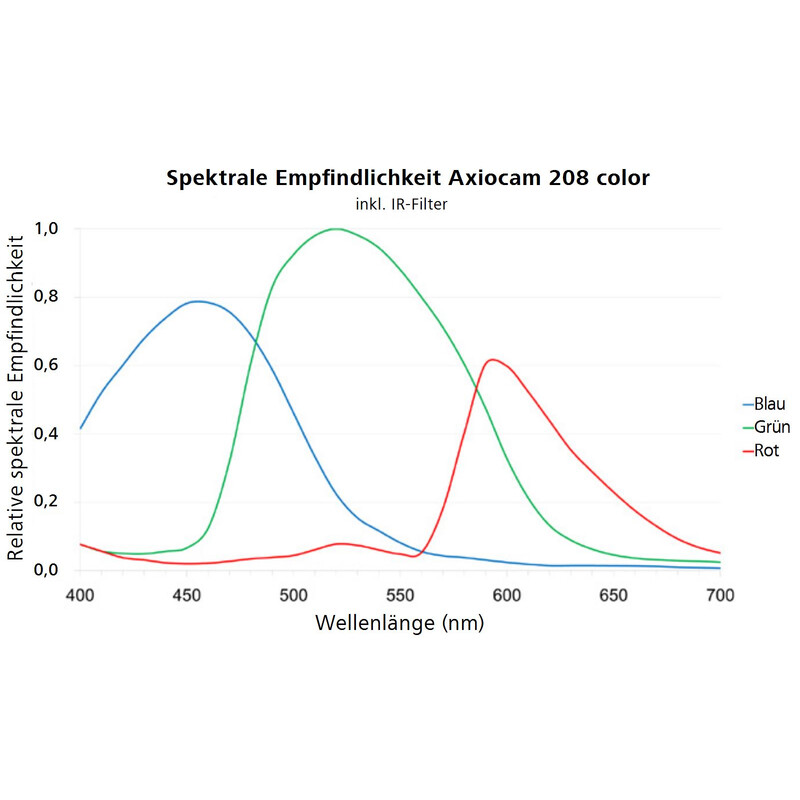

- Spectral range: approx. 400 nm – 700 nm, IR filter; RGB Bayer color mask
- Control buttons on camera for stand-alone use: 1x Image capture 1x OSD (On Screen Display menu) 1x Camera factory reset
- Status-LED for camera: color coded operation status Stand-alone
- Image storage format: TIFF or JPG
- Video stream format mp4 Live
- frame rate via HDMI: 30 fps @ 4K/1080p (also with HDR) Live
- frame rate through software via Ethernet or USB 3.0 (depending on hardware and software configuration), Exp. Time 1 ms
- H x V Frame rate
3840 x 2160 up to 15 fps (ZEN blue edition)
1920 x 1080 up to 27 fps (ZEN blue edition)
1920 x 1080 up to 30 fps (Labscope)
- Digitization: 24-bit (3 x 8-bit RGB) A/D conversion
- Integration time: 0.06 ms up to 1 s
- Gain: 1x - 22x

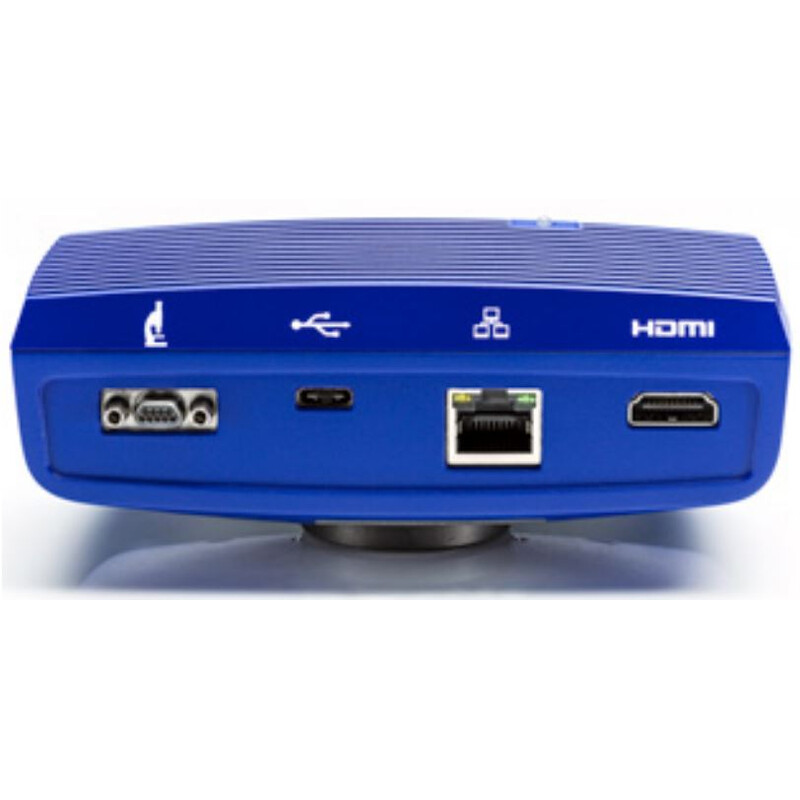

- Interfaces for Communication and for Power:
HDMI for monitor
USB 3.0 Type C for USB hub, flash drive, Wi-Fi adapter or, PC connection
Ethernet (RJ45) for LAN connection
- Optical interface: C-mount
- Max. file size per image:
.tiff up to: 24 MB (not content dependent)
.jpg up to: approx. 0.5 MB – 3.3 MB (content dependent)
- Size/Weight: approx. 135 x 97 x 54mm / 590 g
- Housing: Blue painted aluminum and cooling fins on the top plate
- Registration: CE, RoHS, CSA
- Power supply: via Micro-D interface
- Power consumption: 9 W (24 V DC, 0.75 A)
- Environmental conditions: +10°C to +40°C, max. 75% relative air humidity at 35°C, no condensation, free air circulation required, indoor use
- Operating systems:
for ZEN: Windows 10 x64 Prof./Ultimate and higher
for Labscope: Windows 7/10 x64 Prof./Ultimate and iOS v11 and higher
- Supported Application Software:
ZEN blue v3.0 and higher (lite/pro/system) ZEN core v2.7 and higher (starter/core)
Labscope v2.9 (win)/ v2.8.3 (iOS) and higher
- The camera is network-enabled and can be used with the ZEISS iOS App and Labscope software.
The App is available as a free download from the Apple App Store. Unless otherwise stated by the distributor, iPad and WLAN router are not supplied by ZEISS.
Camera package contains the following accessories:
- USB 3.0 hub Type-C,
- USB 3.0 flash drive, Type-C and Type-A
- USB 3.0 cable Type-C to Type-A
- Power and signal cable camera to microscope stand compatible with Axiolab 5 and Axioscope 5/7/Vario and,
- Power adapter with country-specific plug Sensor: Sony CMOS image sensor Color, Rolling Shutter
